- Product description
-
Product description
• For pipes 1/8‒1 1/2" or Ø 8‒49 mm
• Connection options: Cables up to 25 mm²
• With connection clip and cylinder bolt M6 x 16 made of brass, nickel-plated
• Clamp cover and base made of copper, nickel-plated
- Technical data
-
Technical data

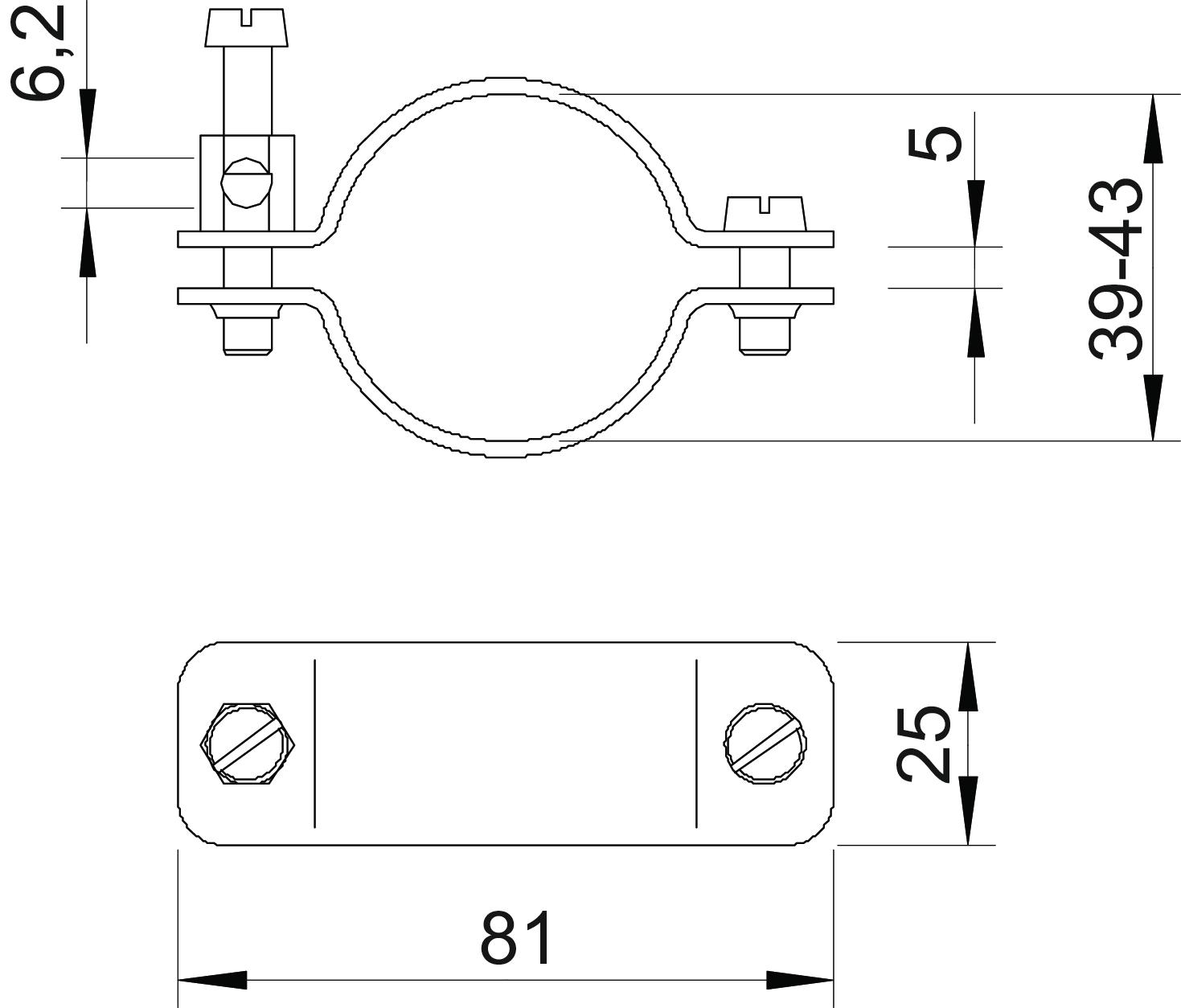

Clamping range D 1 1/4 Clamping range D, max. 43 mm Clamping range D, min. 39 mm Cross-section of cable to be connected, max. 25 mm² Dimension 39-43mm Dimension A 81 mm Dimension b 25 mm Dimension X 5 mm Material Copper Number of conductors 1 Surface Nickel-plated - All types
-
All types
- Downloads
-
Data sheet 942 43 / 5038138 , 0.17MB , pdfDeclaration of conformity 942 43 / 5038138 , 0.06MB , pdfREACH Declaration of conformity 942 43 / 5038138 , 0.12MB , pdfRoHS Declaration of conformity 942 43 / 5038138 , 0.12MB , pdf
