Earthing clamp, type 942 50 | 3 | 13 | 15

Earthing clamp, type 942

Item no. 5038030 | EAN 4012195384618

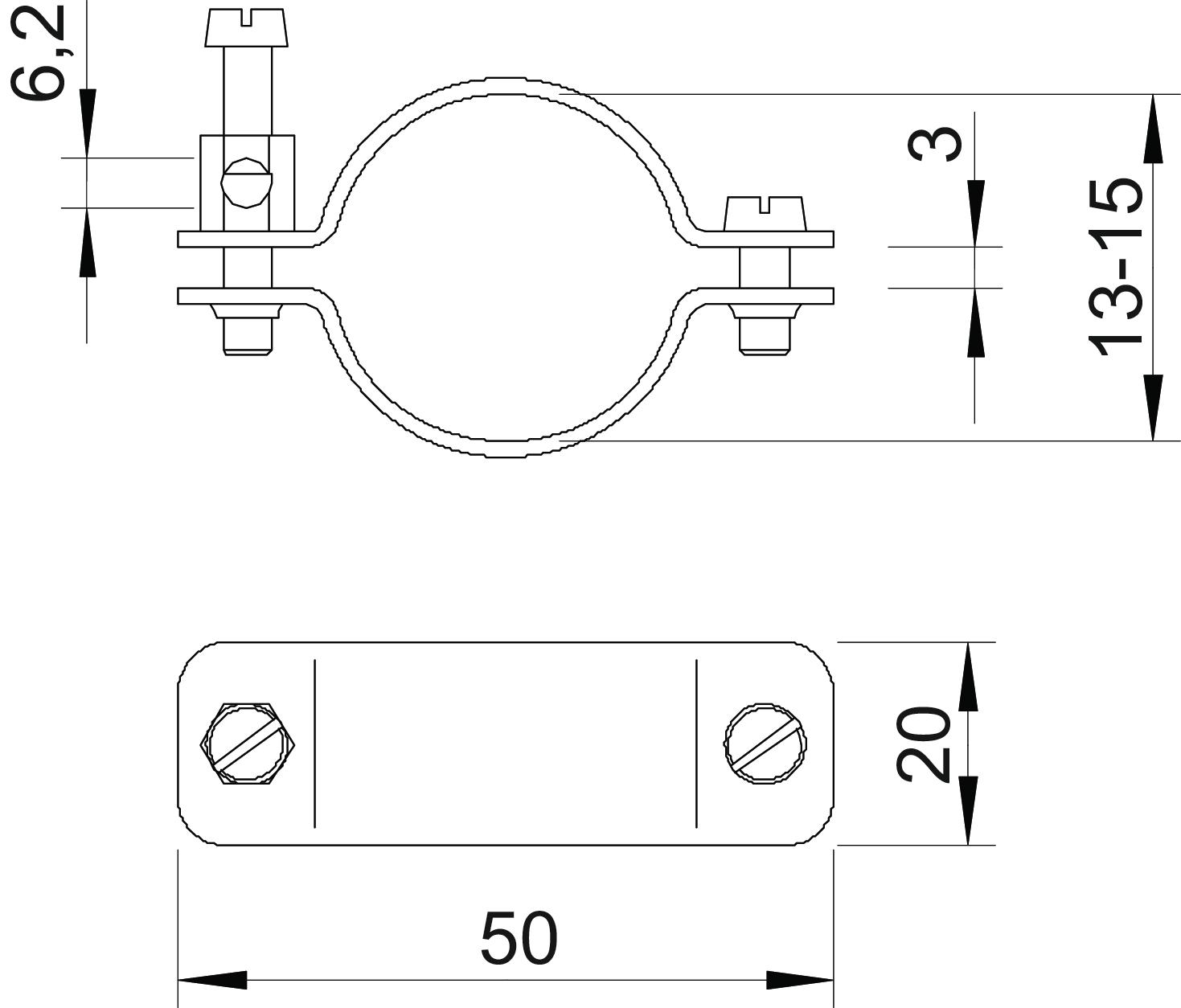

Item no. / Types

Dimension A

Dimension X

Clamping range D, min.

Clamping range D, max.

Product description

Product description

• For pipes 1/8‒1 1/2" or Ø 8‒49 mm

• Connection options: Cables up to 25 mm²

• With connection clip and cylinder bolt M6 x 16 made of brass, nickel-plated

• Clamp cover and base made of copper, nickel-plated

Technical data

Technical data

Clamping range D	1/4
Clamping range D, max.	15 mm
Clamping range D, min.	13 mm
Cross-section of cable to be connected, max.	25 mm²
Dimension	13-15mm
Dimension A	50 mm

Dimension b	20 mm
Dimension X	3 mm
Material	Copper
Number of conductors	1
Surface	Nickel-plated

All types

All types

Types	Dimension A	Dimension X	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
942 11	44 mm	3.5 mm	8 mm	11 mm	5038014	piece	10 piece
942 15	50 mm	3 mm	13 mm	15 mm	5038030	piece	10 piece
942 18	52 mm	2 mm	16 mm	18 mm	5038057	piece	10 piece
942 22	55 mm	3 mm	19 mm	22 mm	5038073	piece	10 piece
942 28	63 mm	3 mm	24 mm	28 mm	5038081	piece	10 piece
942 35	71 mm	5 mm	30 mm	35 mm	5038111	piece	10 piece
942 43	81 mm	5 mm	39 mm	43 mm	5038138	piece	10 piece
942 49	86 mm	5 mm	44 mm	49 mm	5038154	piece	10 piece
