Earthing clamp, type 925 88 | 2 | 46.3 | 48.3

Earthing clamp, type 925

Item no. 5040159 | EAN 4012195385578

Item no. / Types

Dimension A

Dimension X	2 mm

Clamping range D, min.

Clamping range D, max.

Product description

Product description

• For pipes 1/4"-1½" or Ø 11.5-48.3 mm

• Connection options: conductors to 16 mm² with connecting terminal, riveted with brass

and 1 cylinder bolt M5 x 12

• To 1½" with 2 cylinder bolts M6 x 16 (G)

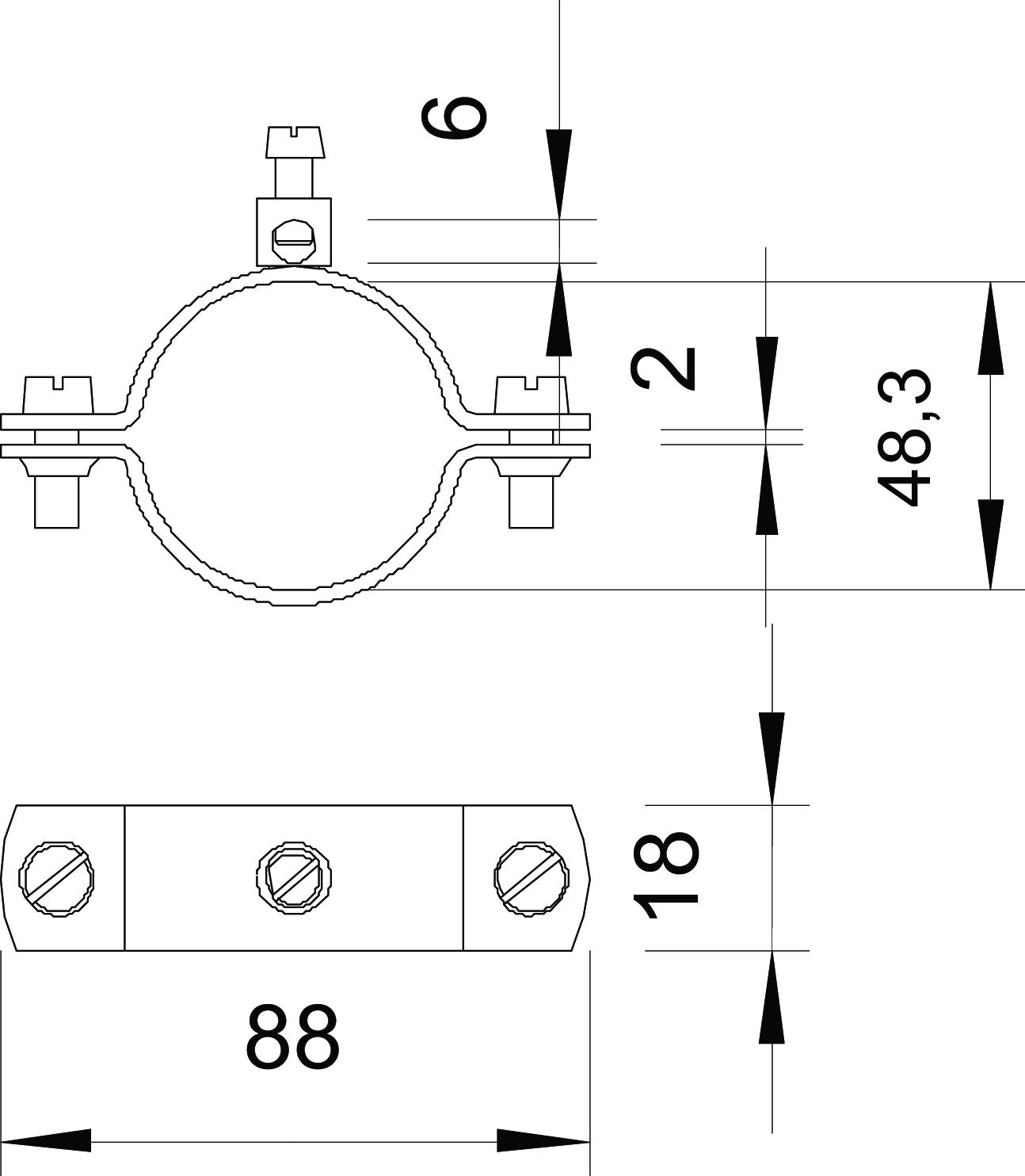

Technical data

Technical data

Clamping range D	1 1/2
Clamping range D, max.	48,3 mm
Clamping range D, min.	46,3 mm
Cross-section of cable to be connected, max.	16 mm²
Dimension	1 1/2"
Dimension A	88 mm

Dimension b	18 mm
Dimension D	48,3 mm
Dimension X	2 mm
Material	Steel
Number of conductors	1
Surface	Electrogalvanized

All types

All types

Types	Dimension A	Dimension X	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
925 1/4	48 mm	2 mm	11.5 mm	13.5 mm	5040035	piece	25 piece
925 3/8	52 mm	2 mm	15.2 mm	17.2 mm	5040051	piece	25 piece
925 1/2	56 mm	2 mm	19.3 mm	21.3 mm	5040078	piece	25 piece
925 3/4	62 mm	2 mm	24.9 mm	26.9 mm	5040094	piece	25 piece
925 1	70 mm	2 mm	31.7 mm	33.7 mm	5040116	piece	25 piece
925 1 1/4	81 mm	2 mm	40.4 mm	42.4 mm	5040132	piece	25 piece
925 1 1/2	88 mm	2 mm	46.3 mm	48.3 mm	5040159	piece	20 piece
