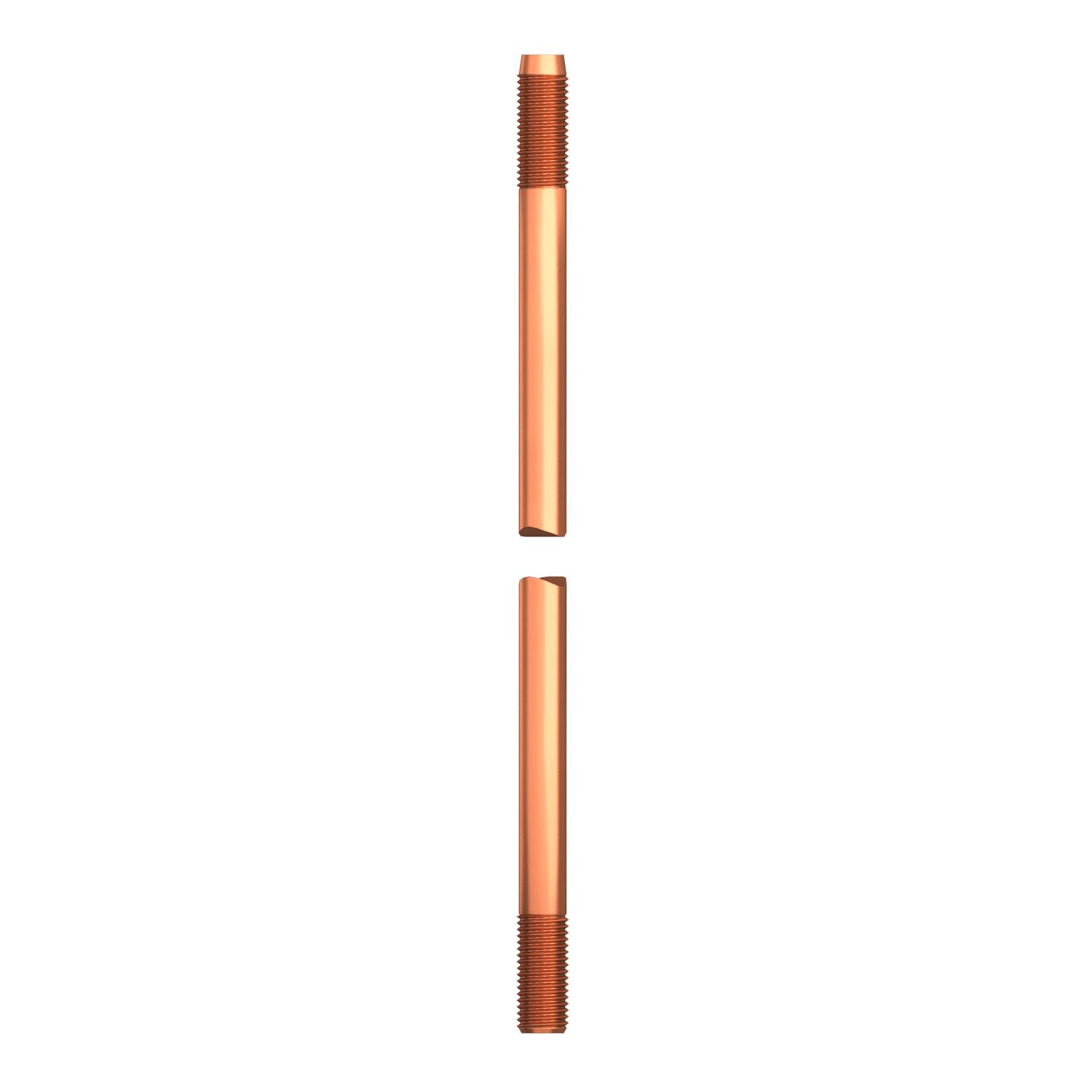

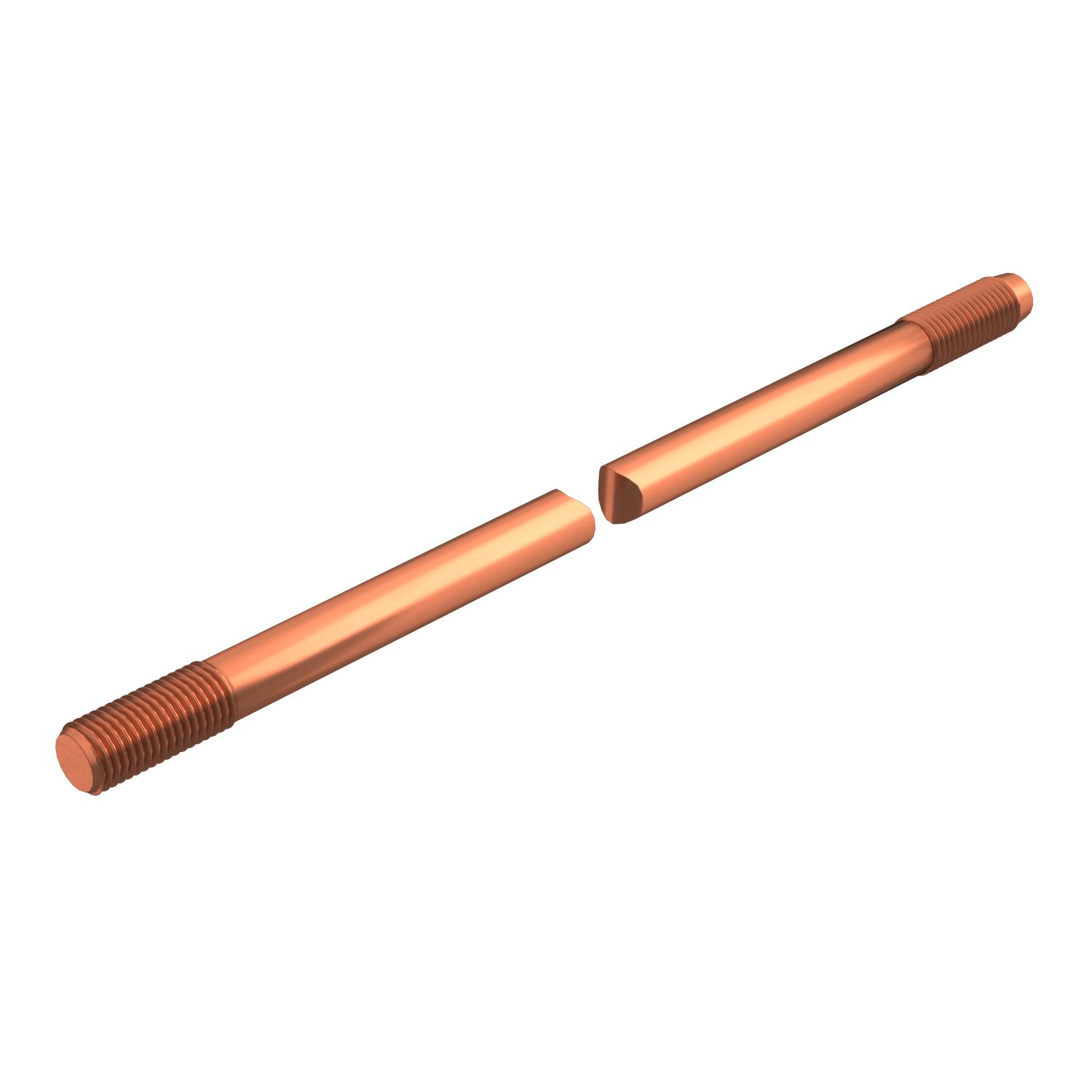

Earth rod BS with copper sheath 1200 | 14.2 | Steel

Earth rod BS with copper sheath

Item no. 5000481 | EAN 4012196431229

Item no. / Types	5000481 / 219 16 CU

Length	1200 mm

External diameter	14.2 mm

Material	Steel

Product description

Product description

• Made of steel with a copper jacket of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)

Technical data

Technical data

Dimension	1200
External diameter	14,2 mm
Material	Steel

Profile type	Miscellaneous
Surface	Copper-plated

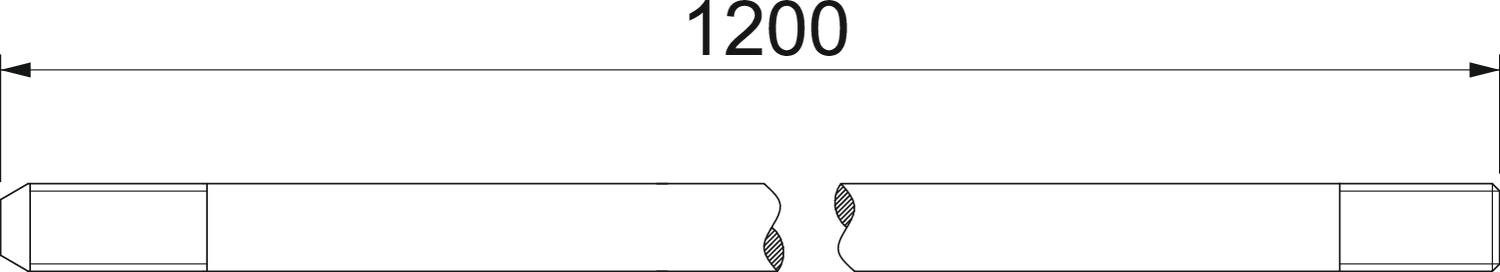

Dimensions

Dimension D	16 mm

Length	1200 mm

All types

All types

Types	Length	External diameter	Material	Item no.	Quantity	SSU
219 16 CU	1200 mm	14.2 mm	Steel	5000481	piece	5 piece

Downloads

Data sheet 219 16 CU / 5000481 , 0.14MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Declaration of conformity 219 16 CU / 5000481 , 0.06MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf
