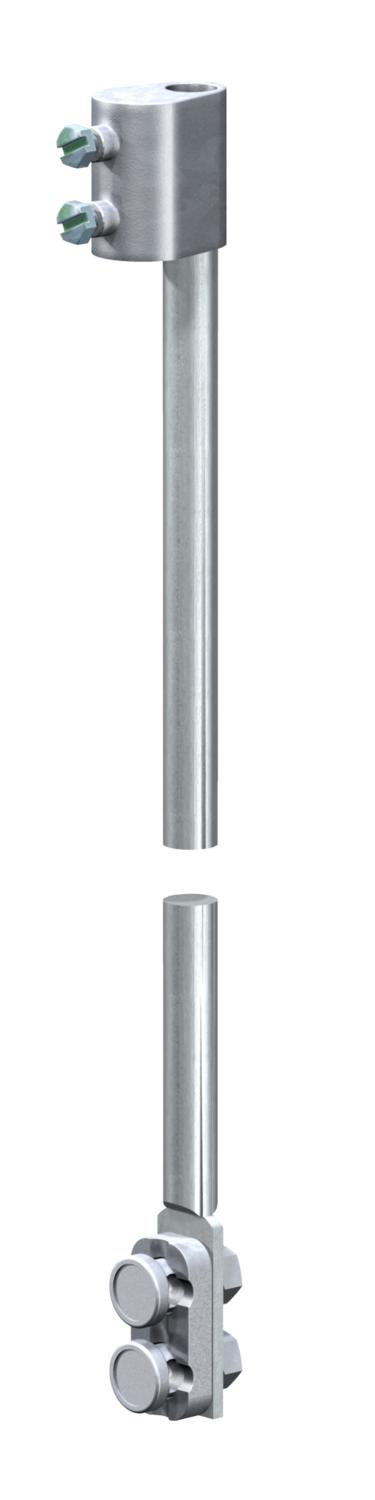

Earth entry rod with separating piece and connector
Item no. 5430151 | EAN 4012195430575
- Product description
-
Product description
• With separating piece type 223 DIN and connector type 5002 DIN
- Technical data
-
Technical data
Dimension 1500mm Fit Rd 8-10 mm Material Steel Nominal size Ø 16 mm Surface Hot-dip galvanised Tapered no With attaching holes no Dimensions

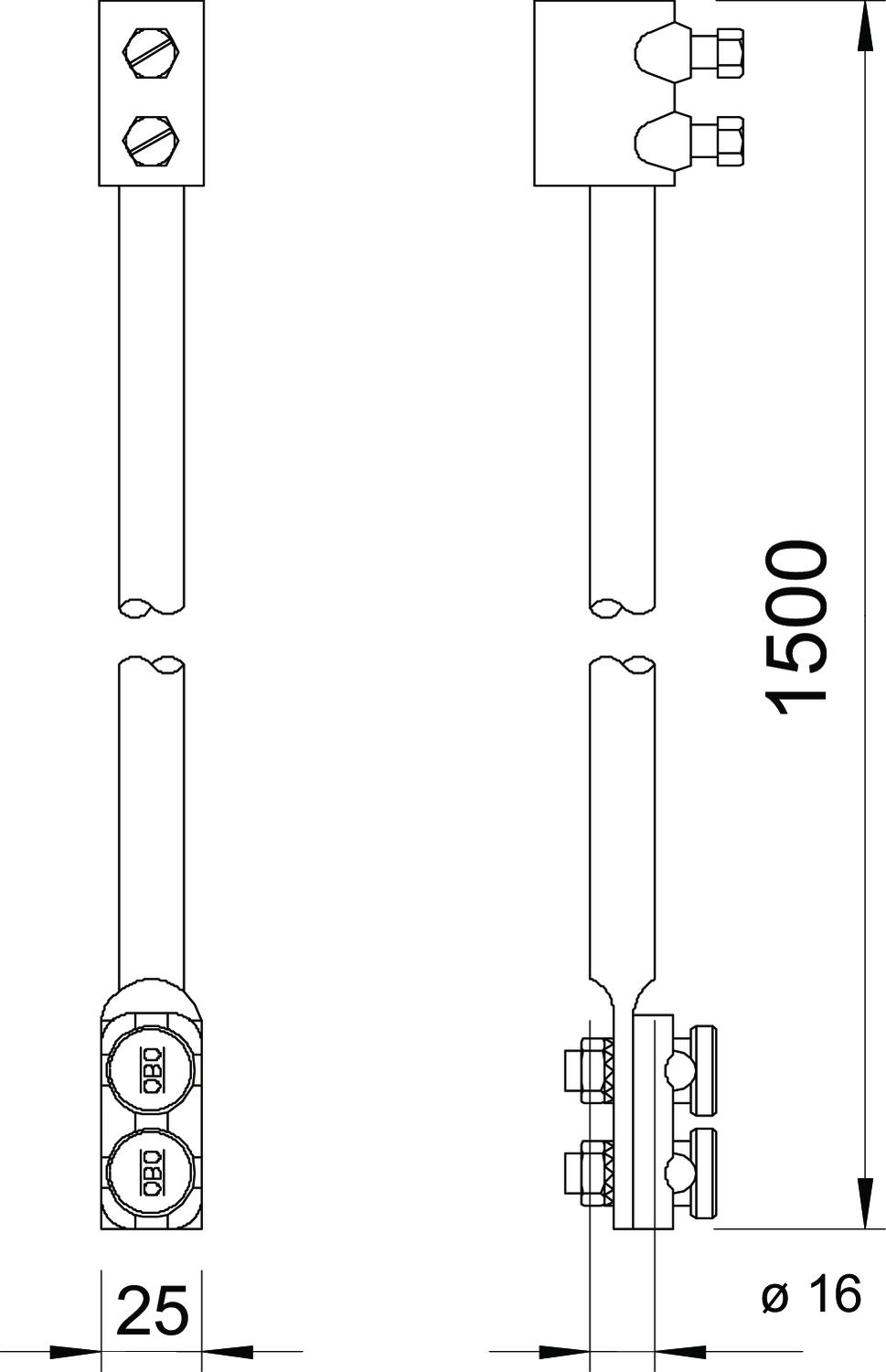

Dimension L 1500 mm Length 1500 mm - All types
- Downloads
-
Data sheet 204 KL-1500 / 5430151 , 0.19MB , pdfDeclaration of conformity 204 KL-1500 / 5430151 , 0.06MB , pdfREACH Declaration of conformity 204 KL-1500 / 5430151 , 0.27MB , pdfRoHS Declaration of conformity 204 KL-1500 / 5430151 , 0.12MB , pdf
