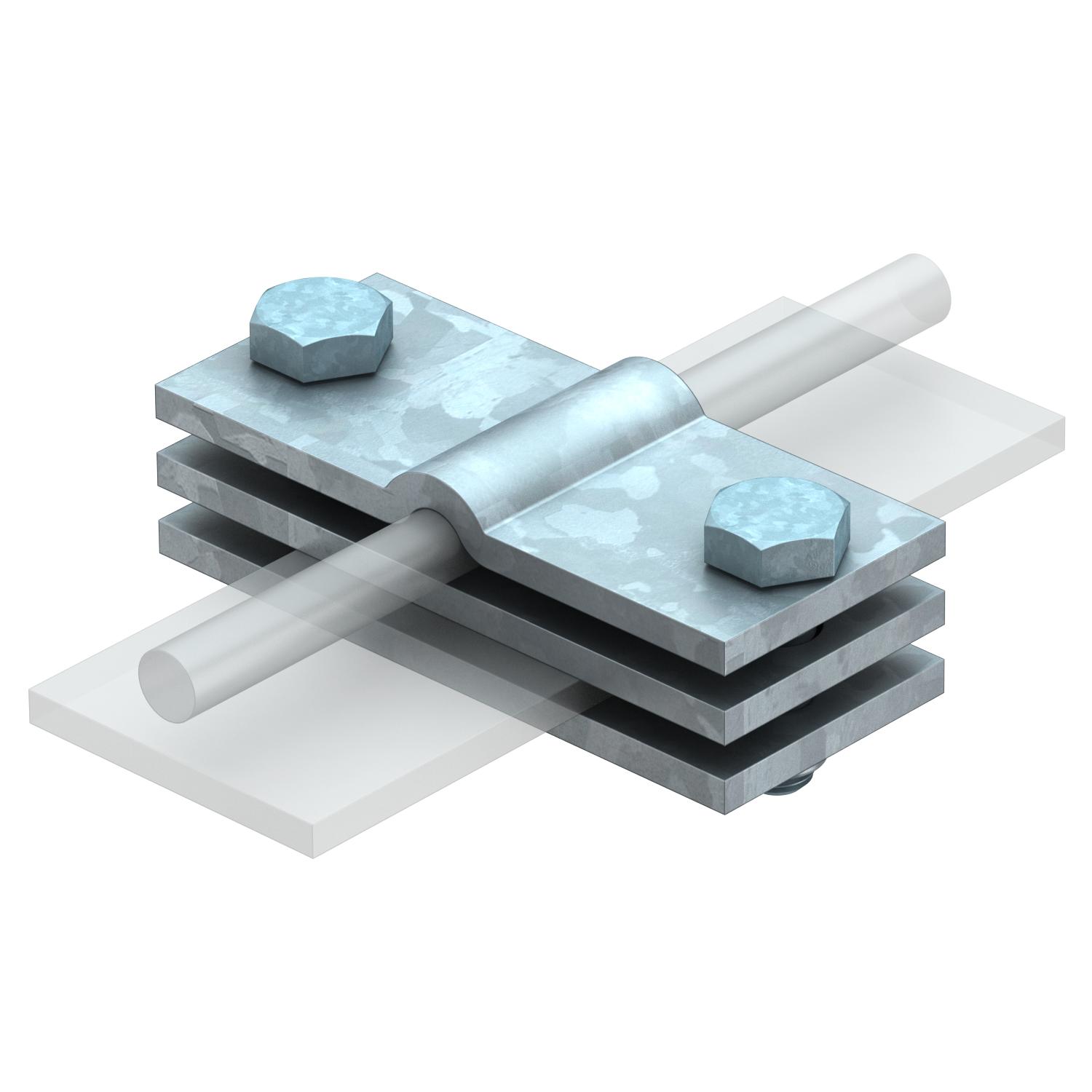

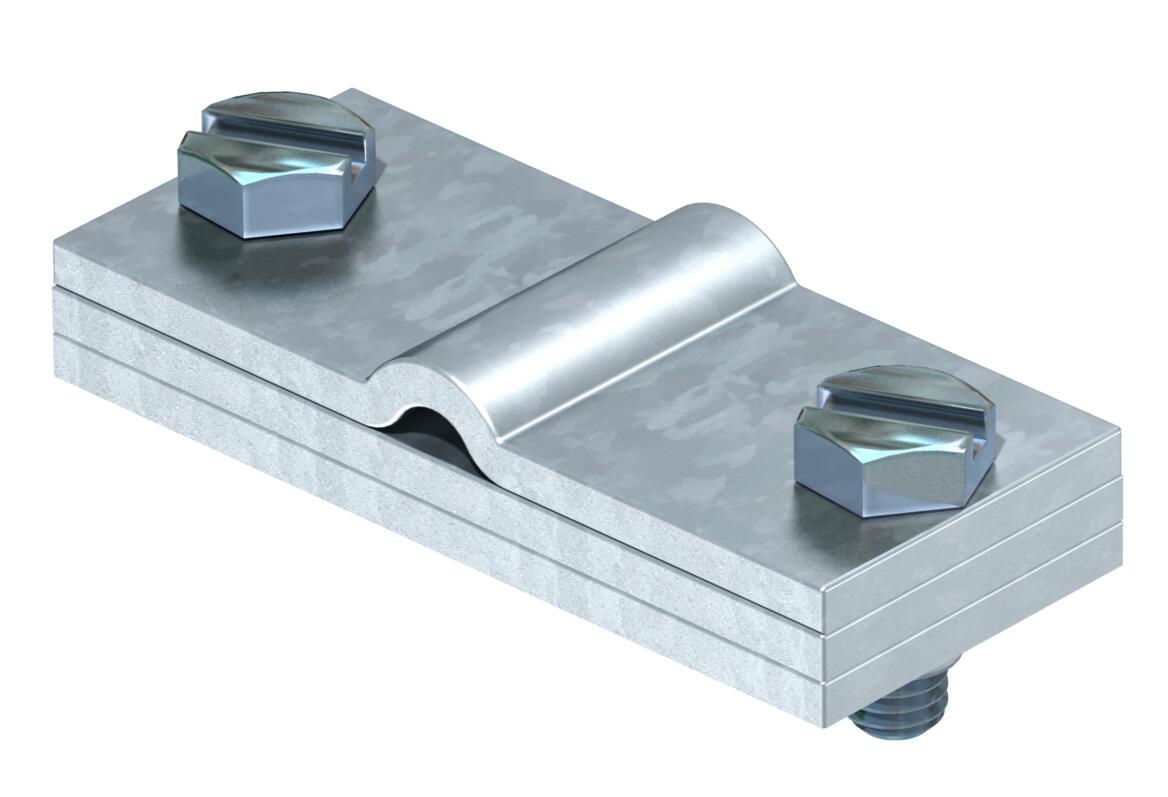

Earth connection terminal for round cable and flat conductor FT

Item no. / Types	5043018 / 937 50

Suitable for	Round conductor

Product description

Product description

• For round and flat conductors
• Fit: cable 50 mm² x max. FL 40
• Rd 8 x max. FL 40
• With 2 hexagonal bolts M6 x 20 (F)

Technical data

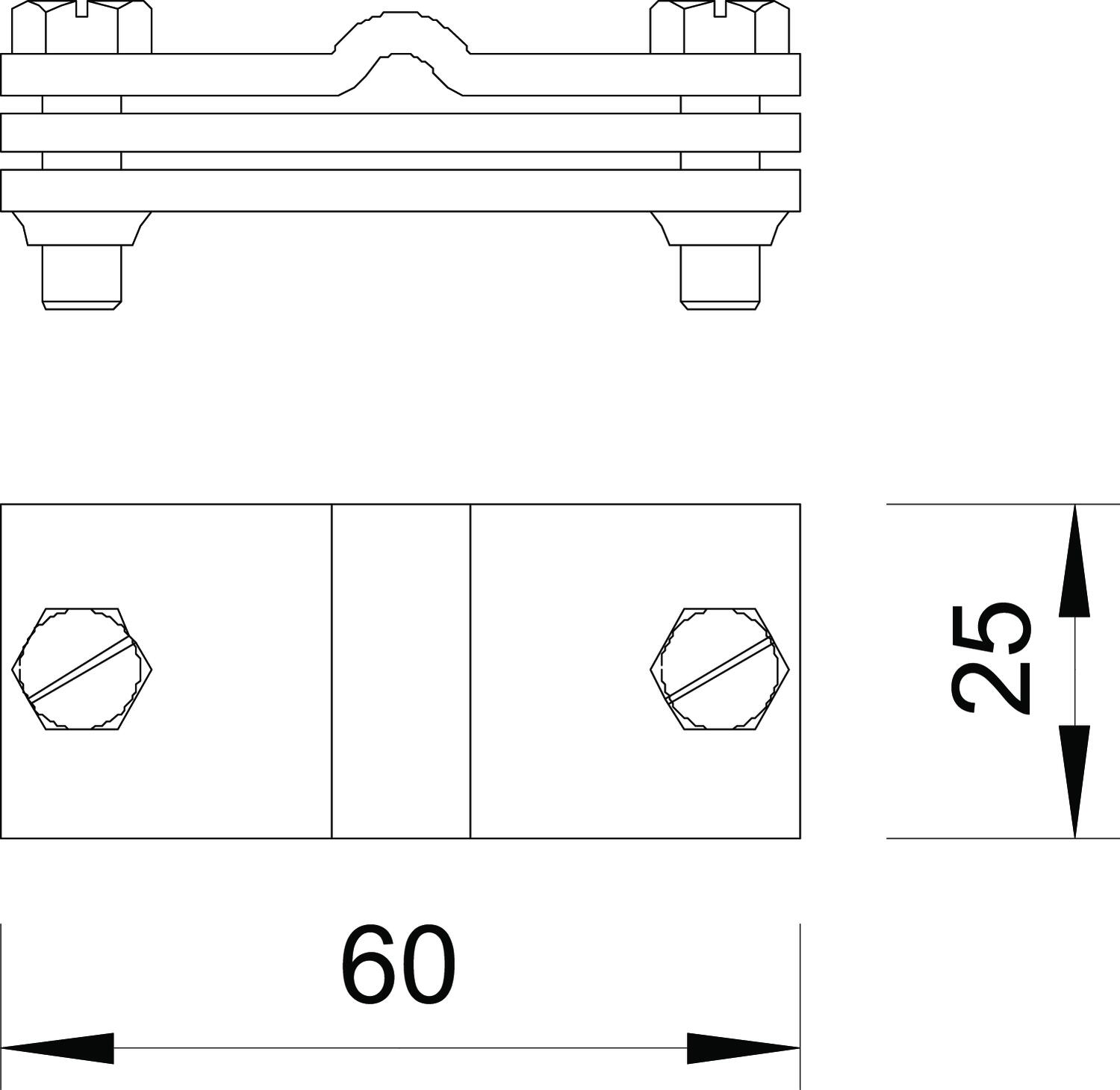

Dimension	60mm
Material	Steel

Suitable for	Round conductor
Surface	Hot-dip galvanised

All types

Types	Suitable for	Item no.	Quantity	SSU
937 50	Round conductor	5043018	piece	10 piece

Downloads

Data sheet 937 50 / 5043018 , 0.13MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Download

937 50 / 5043018
