Dust protection plate, metric 40 | 1.5 | M40

Dust protection plate, metric

Item no. 2028883 | EAN 4012195035596

Item no. / Types

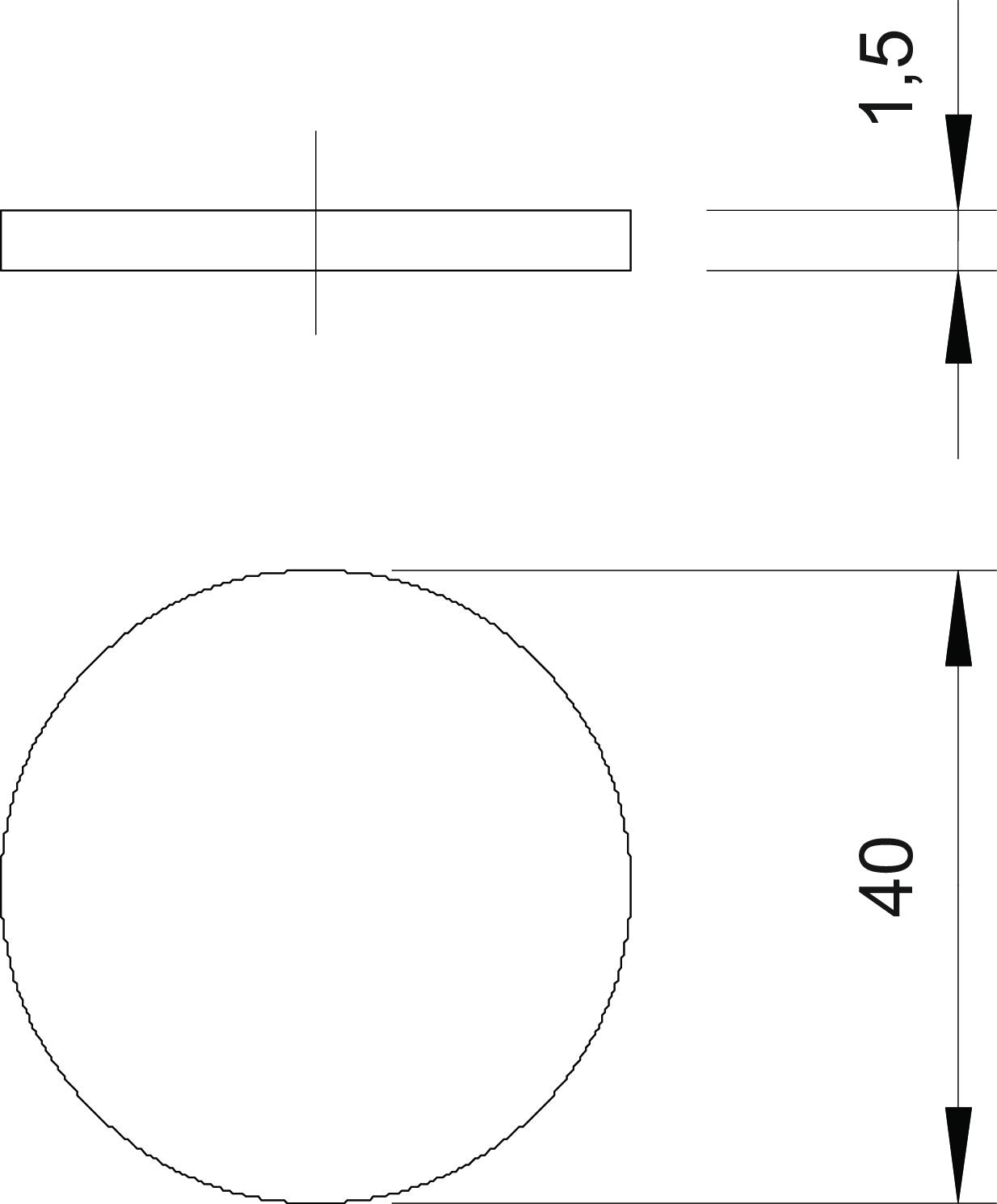

Dimension D

Dimension t	1.5 mm

Size

Product description

Product description

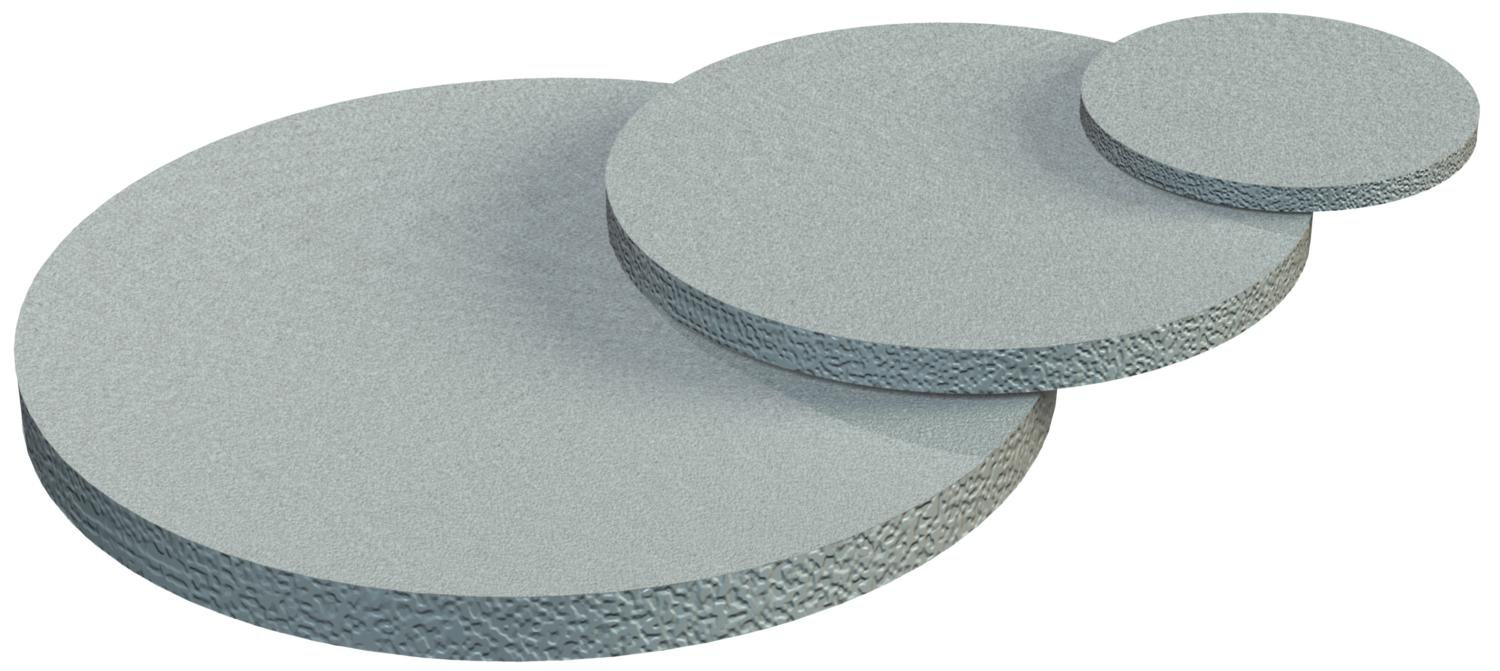

Cellular polyethylene.

Small protective disc to protect the V-TEC VM and V-TEC VM MS cable glands against dust before the cable is installed.

Application: the discs are pre-mounted between the cap nut and the seal. They do not need to be removed when the cable is installed, but are simply passed through to the interior with the cable.

Note: the discs do not provide any mechanical protection.

Technical data

Technical data

Colour	Black
Dimension	M40
Dimension D	40 mm
Dimension t	1,5 mm

Impact-resistant	no
Material	Zell - Polyethylen
Size	M40
Version for	Miscellaneous

All types

All types

Types	Dimension D	Dimension t	Size	Item no.	Quantity	SSU
107 S VTEC M12	12 mm	1.5 mm	M12	2028870	piece	100 piece
107 S VTEC M16	16 mm	1.5 mm	M16	2028873	piece	100 piece
107 S VTEC M20	20 mm	1.5 mm	M20	2028875	piece	100 piece
107 S VTEC M25	25 mm	1.5 mm	M25	2028877	piece	100 piece
107 S VTEC M32	32 mm	1.5 mm	M32	2028880	piece	100 piece
107 S VTEC M40	40 mm	1.5 mm	M40	2028883	piece	100 piece
107 S VTEC M50	50 mm	1.5 mm	M50	2028885	piece	100 piece
