Duct clamp, LKM, for the maintenance of electrical function E30–E90, for LKM cable duct LKM 80080

Duct clamp, LKM, for the maintenance of electrical function E30–E90, for LKM cable duct LKM 80080

Name: Duct clamp, LKM, for the maintenance of electrical function E30–E90, for LKM cable duct LKM 80080
Brand: OBO Bettermann
SKU: 6249881

Item no. 6249881 | EAN 4012195685081

Product description

Product description

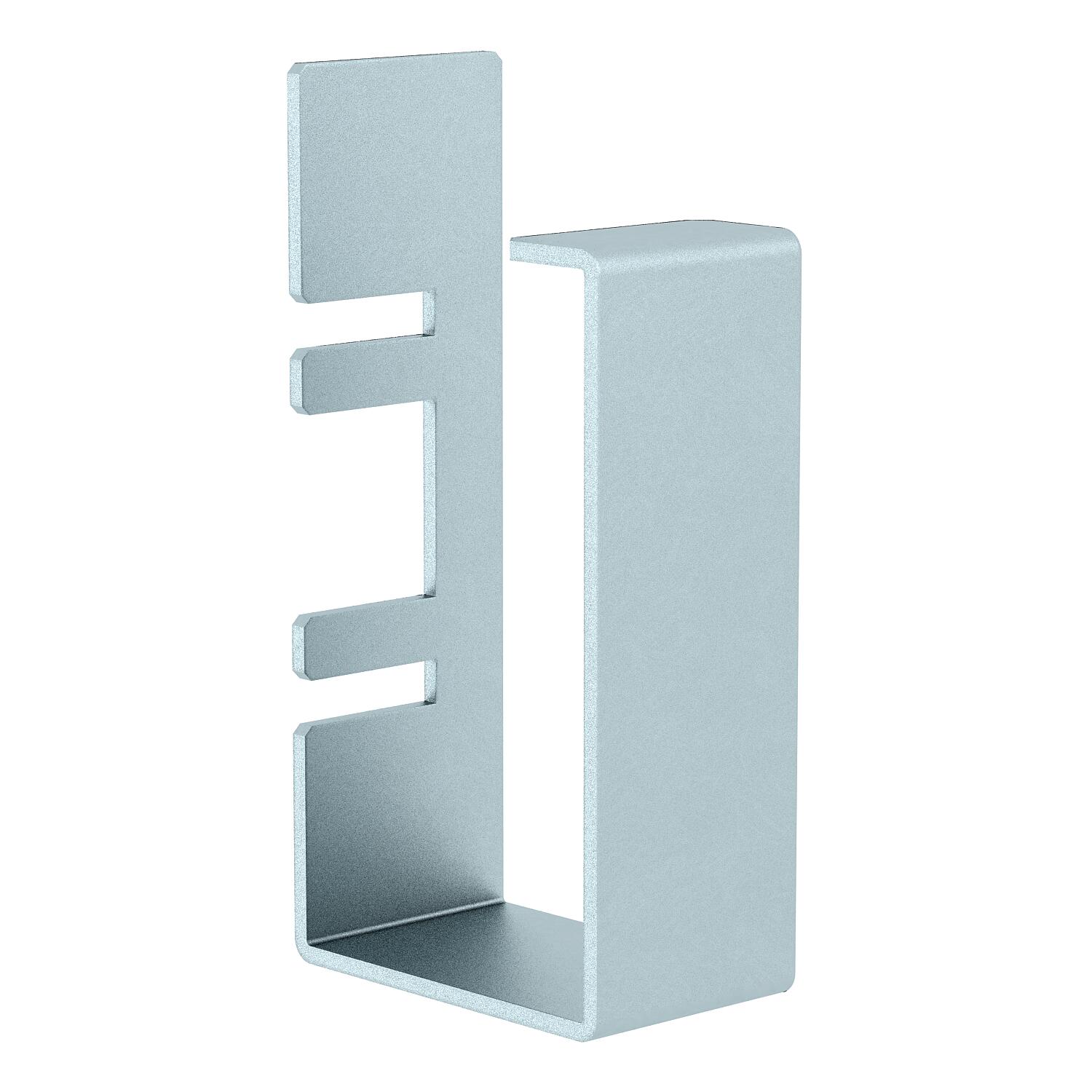

Duct clamp for the metal cable routing duct type LKM 60100, prevents the cables falling out during installation. The duct clamp is essential if the duct is used in cable systems with integrated maintenance of electrical function to DIN 4102, Part 12. Easy mounting through insertion into the loop perforation and interconnection in the side wall.

Technical data

Technical data

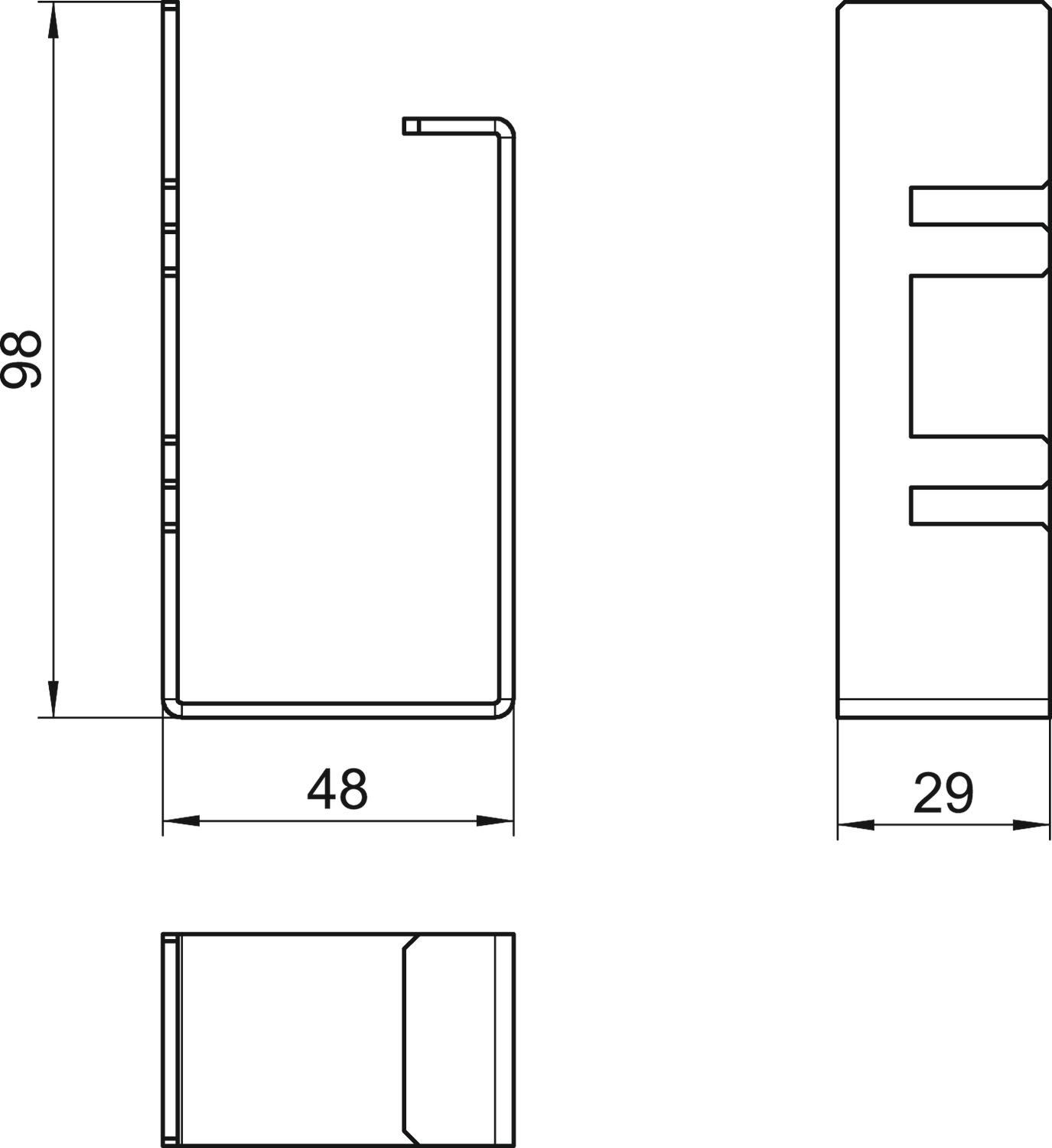

Dimension	98x48x29mm
Dimension a	29 mm
Dimension b	98 mm
Dimension c	48 mm
Fastening type	Lockable
for duct dimension	60 x 100
Halogen-free	yes
Height	48 mm
Length	29 mm

Maintain electrical functions	yes
Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Surface	Strip galvanized
Width	98 mm
With equipotential bonding	no
