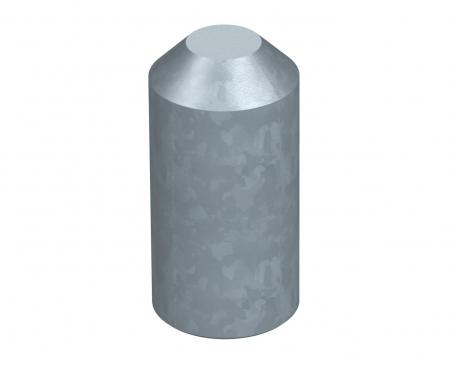

Driving head for LightEarth earth rod 25

morepic-1

morepic-2

Driving head for LightEarth earth rod

Item no. 3042308 | EAN 4012195617297

Item no. / Types	3042308 / LE KOPF

for earth rods	25 mm

Product description

Product description

• Suitable for LightEarth system

• For driving earth rods using hand-held hammer

• Hardened

Technical data

Technical data

Dimension	25mm
Earther diameter	25 mm
for earth rods	25 mm

Material	Steel
Surface	Hot-dip galvanised

All types

All types

Types	for earth rods	Item no.	Quantity	SSU
LE KOPF	25 mm	3042308	piece	1 piece

Downloads

Data sheet LE KOPF / 3042308 , 0.12MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Declaration of conformity LE KOPF / 3042308 , 0.06MB , pdf

Download

REACH Declaration of conformity LE KOPF / 3042308 , 0.12MB , pdf

Download

RoHS Declaration of conformity LE KOPF / 3042308 , 0.12MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

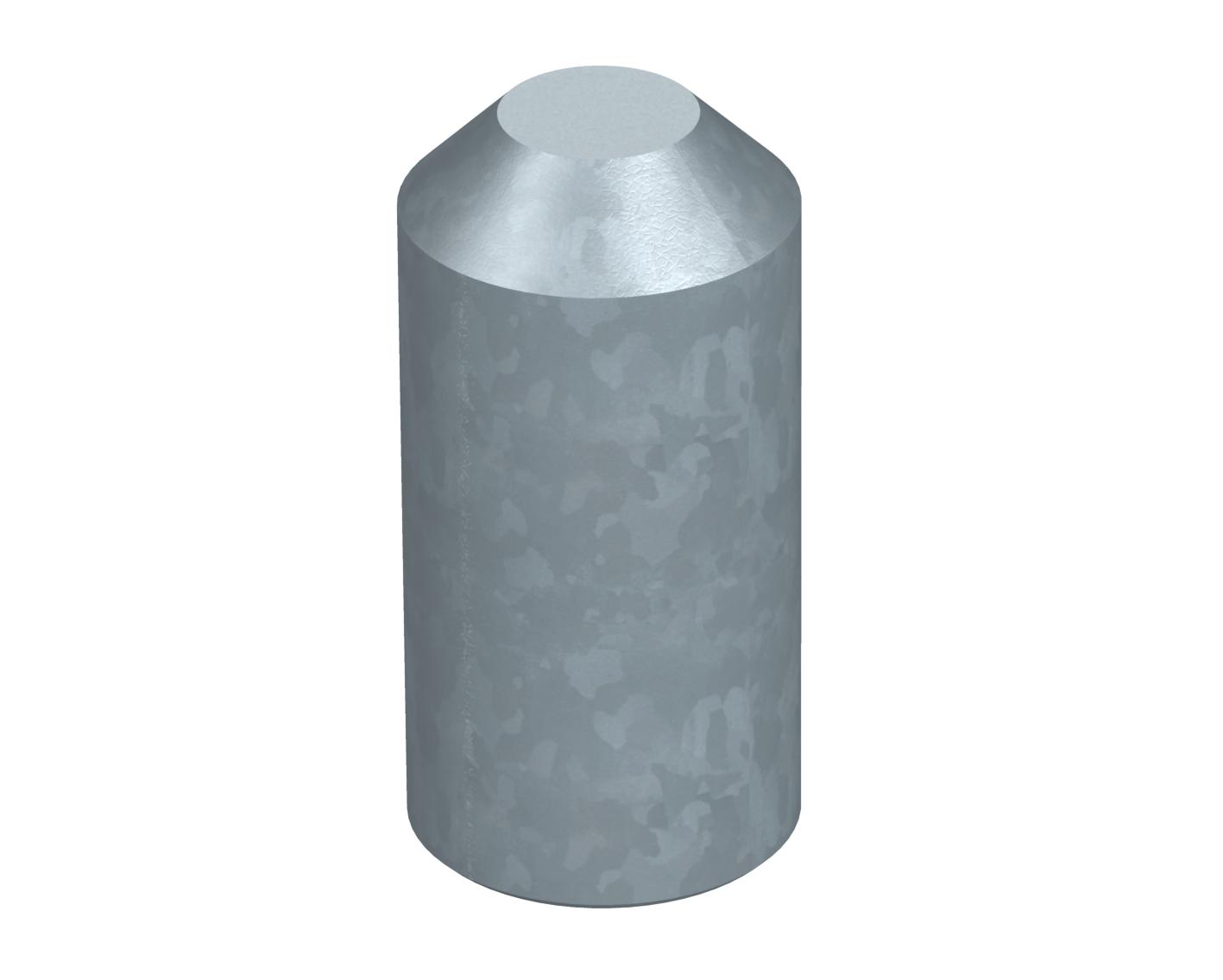

Product graphic LE KOPF / 3042308, 36.03 kB, jpg

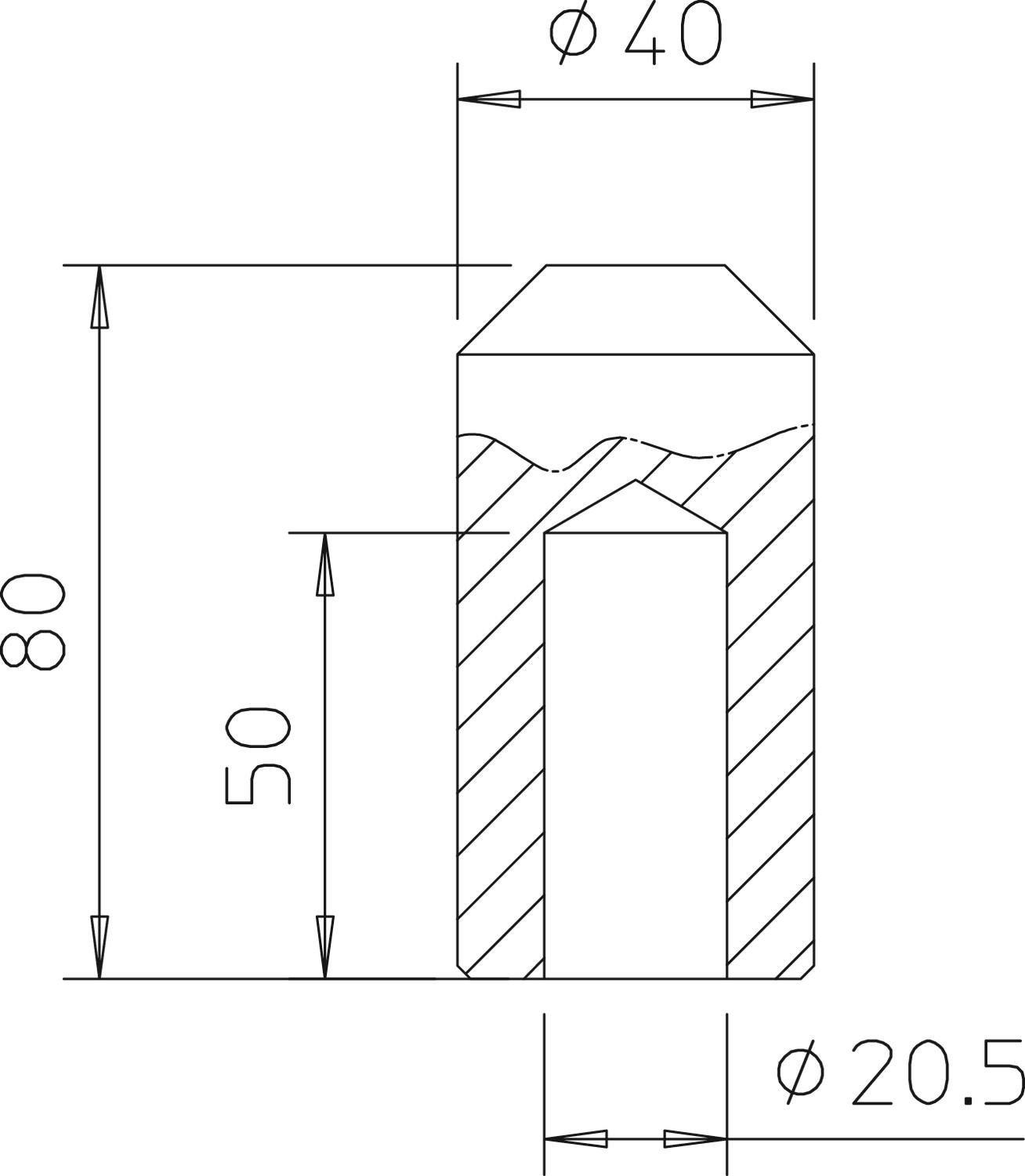

Scale drawing LE KOPF / 3042308, 72.04 kB, jpg

LE KOPF / 3042308

Tiefen_und_Plattener_Schlagkopf_für_Rohrerder_LightEarth.rfa, 328.00 kB
