DR 920 PE cable protection ring
Item no. 6087965 | EAN 4012196346639
- Product description
-
Product description

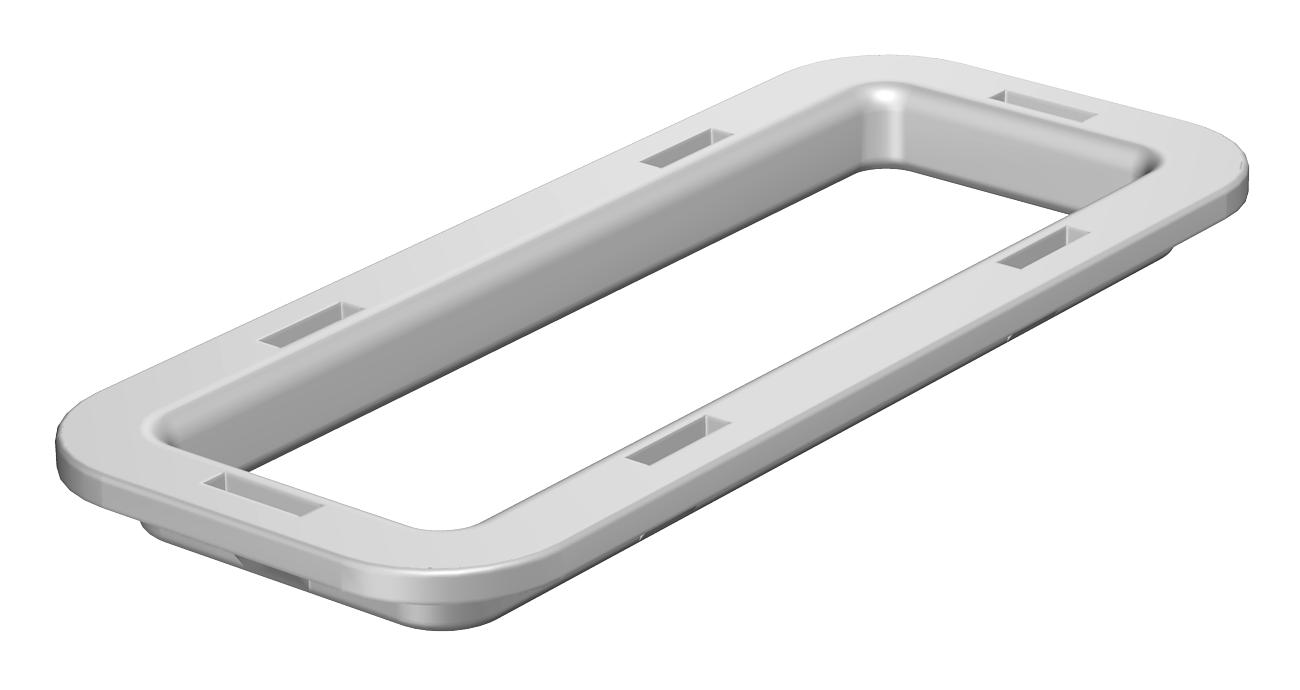

Cable protection ring for side perforation in the side rails of the IKS cable tray.
-
- Technical data
-
Technical data
Accessories yes Colour Light grey Halogen-free yes Material Polyethylene Spare part no Suitable for Cable tray Type Injection-moulded part Type of accessory Miscellaneous Dimensions

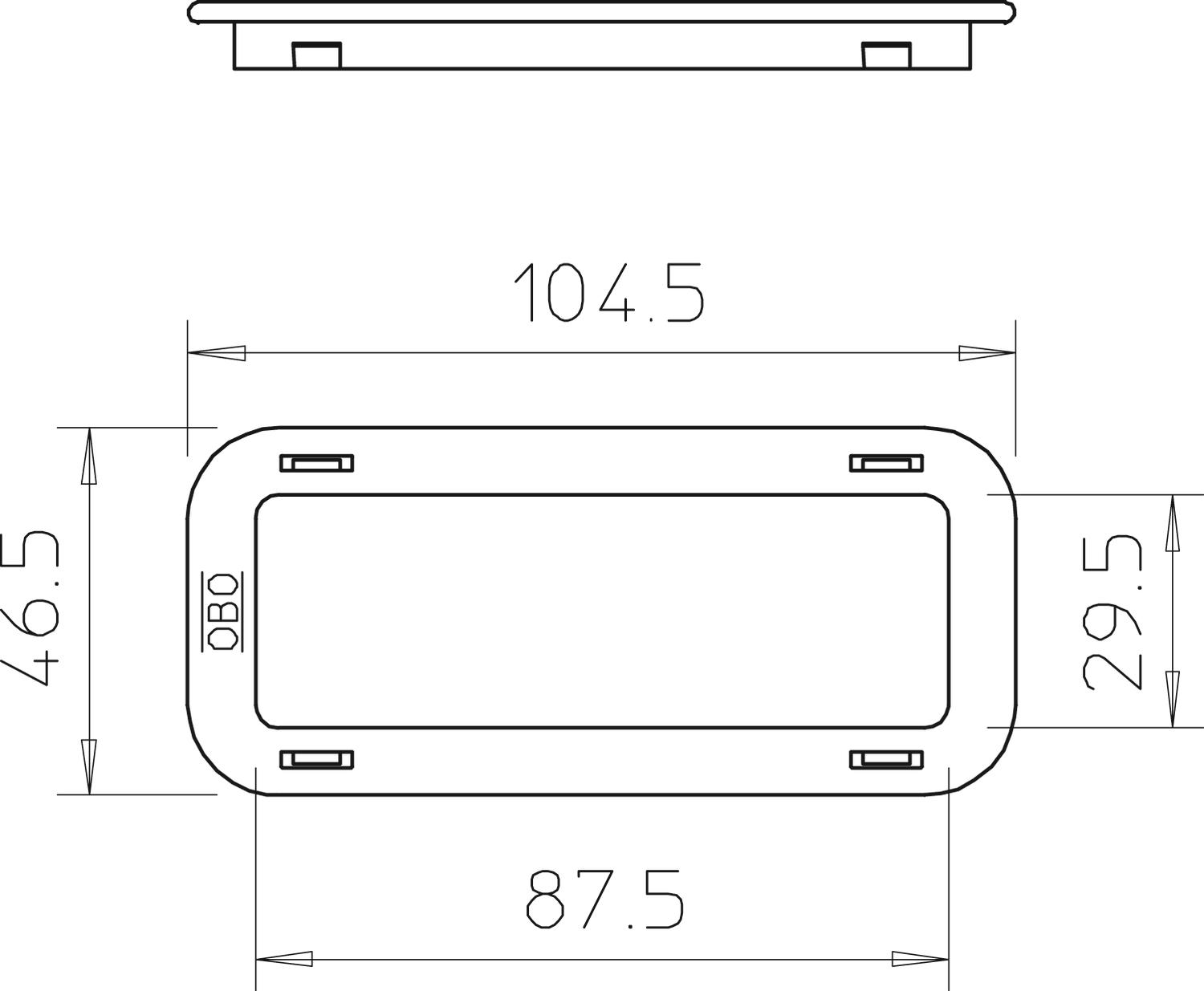

Dimension b 29,5 mm Dimension L 87,5 mm Height 7,5 mm Length 101 mm Width 43 mm - All types
- Downloads
-
Data sheet KSR-DR 920 PE / 6087965 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity KSR-DR 920 PE / 6087965 , 0.15MB , pdfREACH Declaration of conformity KSR-DR 920 PE / 6087965 , 0.12MB , pdfRoHS Declaration of conformity KSR-DR 920 PE / 6087965 , 0.13MB , pdf
