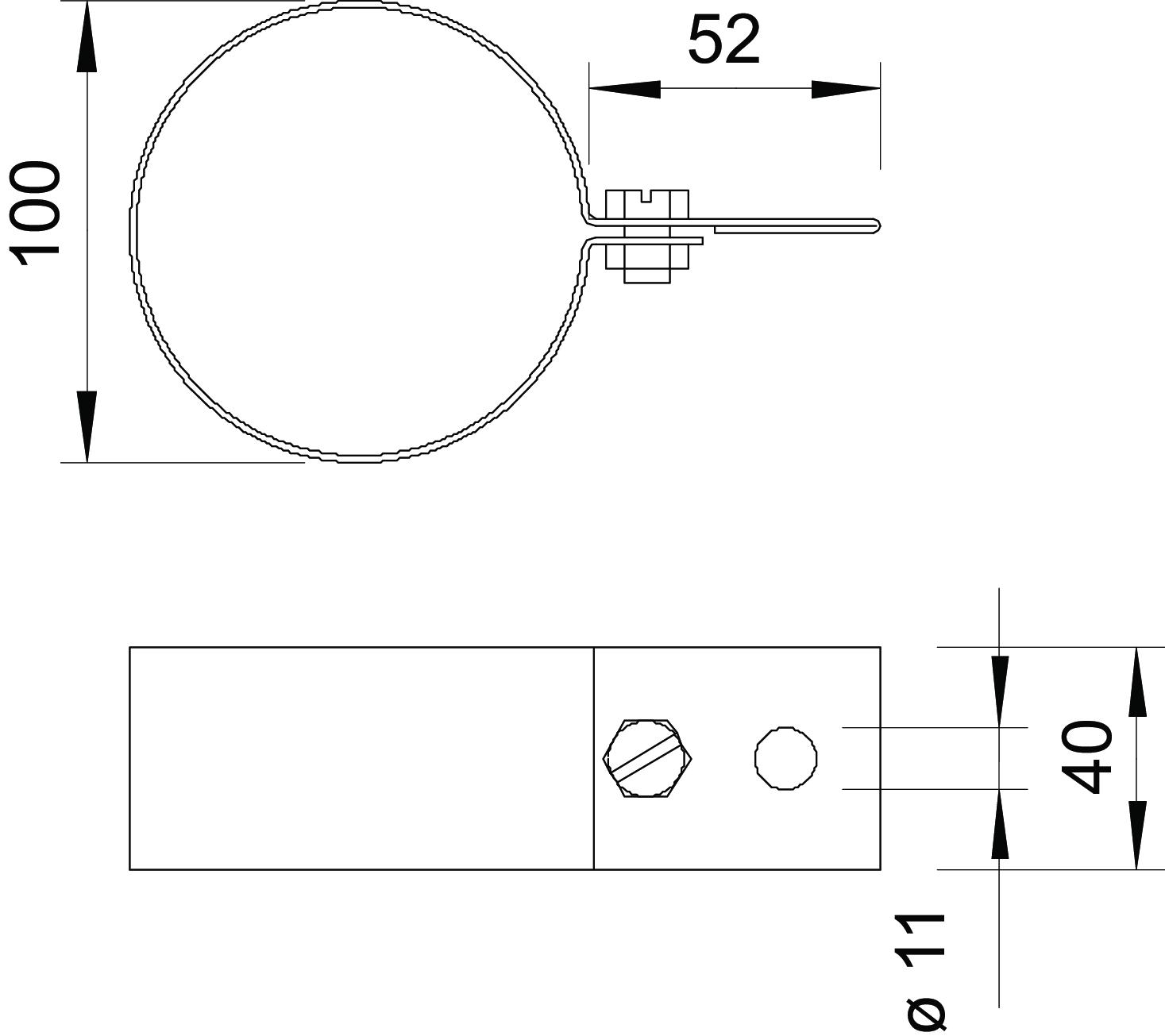

Downpipe clip Cu
Item no. 5350700 | EAN 4012195426370
- Product description
-
Product description• With 1x hexagonal bolt M8 x 20
• With 1x hexagonal nut M8 and 1 serrated disc made of rustproof steel
• With connection hole Ø 11 mm
- Technical data
-
Technical data
Bimetal connector no Clamping range, min. 100 mm Connection hole 11 mm Dimension 100mm Dimension d min. 100 mm explosion-proof no Integrated round conductor guide no Material Copper - All types
- Downloads
-
Data sheet 301 CU-100 / 5350700 , 0.15MB , pdfEU declaration of conformity 301 CU-100 / 5350700 , 0.06MB , pdfREACH Declaration of conformity 301 CU-100 / 5350700 , 0.12MB , pdfRoHS Declaration of conformity 301 CU-100 / 5350700 , 0.12MB , pdf
