Dolü branch terminals, open on both sides, 12-pole
Item no. 2055023 | EAN 4012195183433
- Product description
-

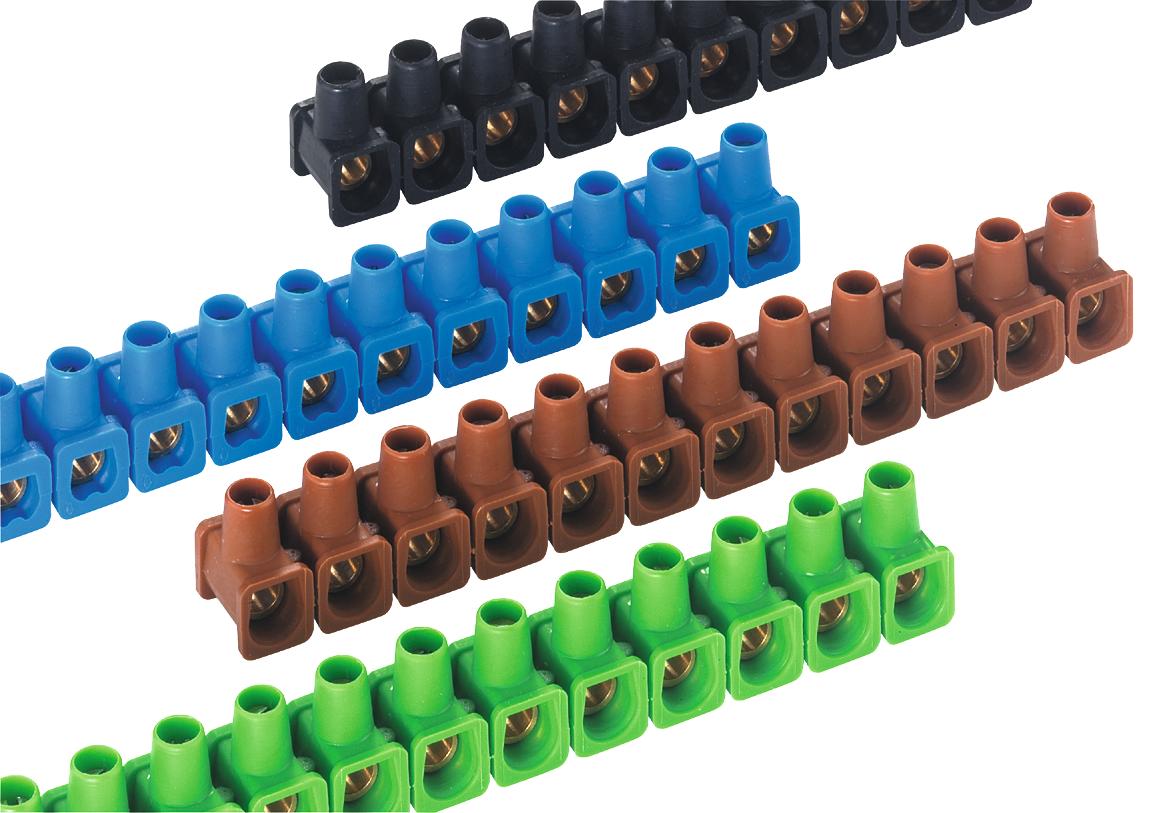

Product descriptionSorted in colours black, brown, blue and yellow-green.

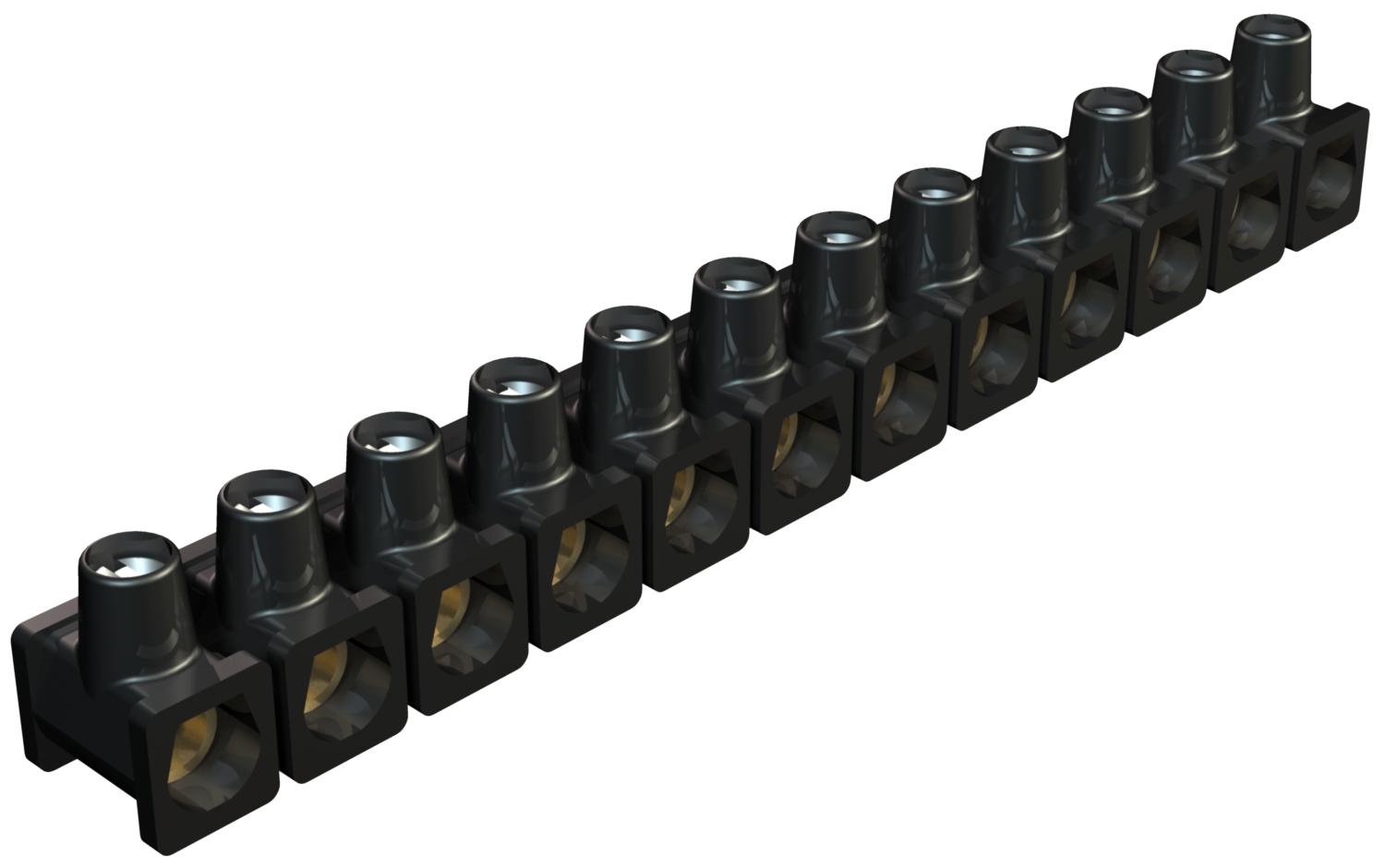

Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 380 V.
Nominal current 16 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².
Delivery sorted by colour: 5 black, 2 blue, 2 yellow-green and 1 brown strip in each packaging unit.
-
- Technical data
-
Technical data

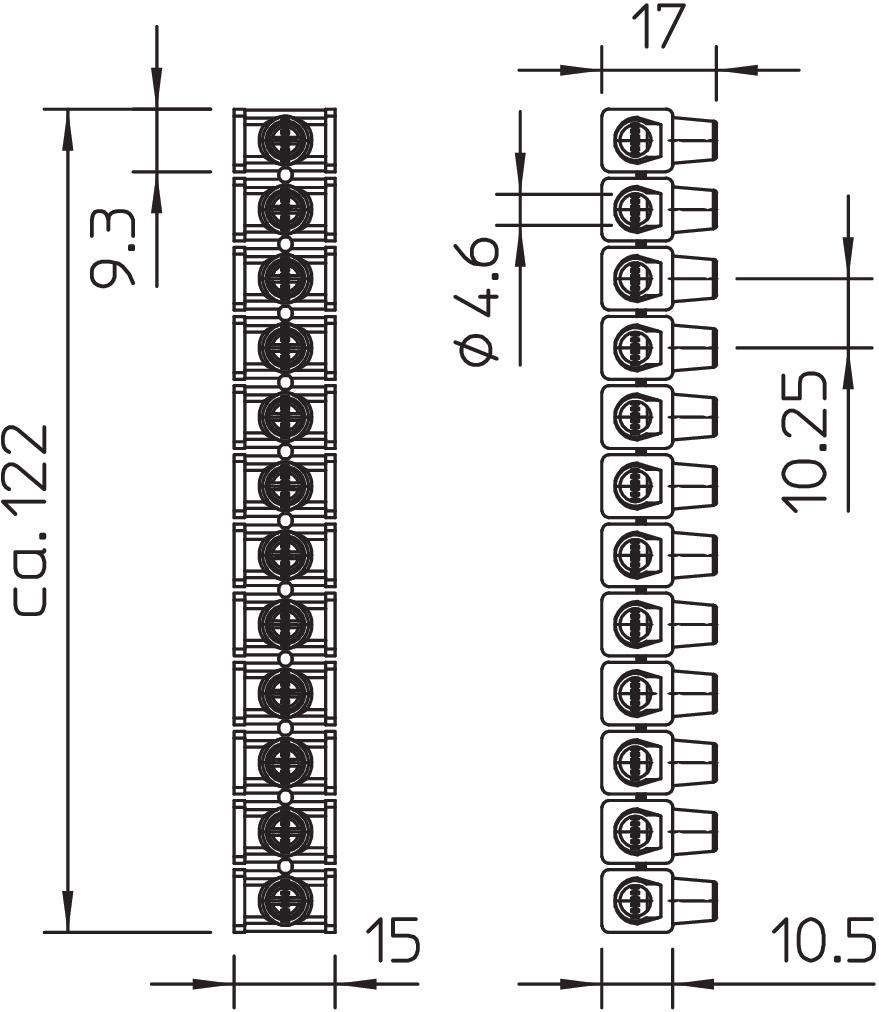

Closing plate required no Colour (sorted) Connectable conductor cross-section, single-wire, max. 2,5 mm² Connectable conductor cross-section, single-wire, min. 1 mm² Connection position Side Cross-section Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² Dimension 2,5mm² Drill hole spacing, centre 10,25 mm Explosion-tested version no Halogen-free yes Height 17 mm Insulation material Thermoplast Length 122 mm Material Polyamide No. of terminals 12 Nominal cross-section, min. 2,5 mm² Nominal current 16 A Nominal voltage 380 V Number of screwless terminals per pole 1 Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors no Transparent no Version of electrical connection 1 Screw connection Width 15 mm - All types
