Dolü branch terminals, open on both sides, 10-pole 10 | 10 | 380

Dolü branch terminals, open on both sides, 10-pole

Item no. 2055503 | EAN 4012195183914

Item no. / Types	2055503 / 71

No. of terminals	10

Nominal cross-section, min.	10 mm²

Nominal voltage	380 V

Product description

Product description

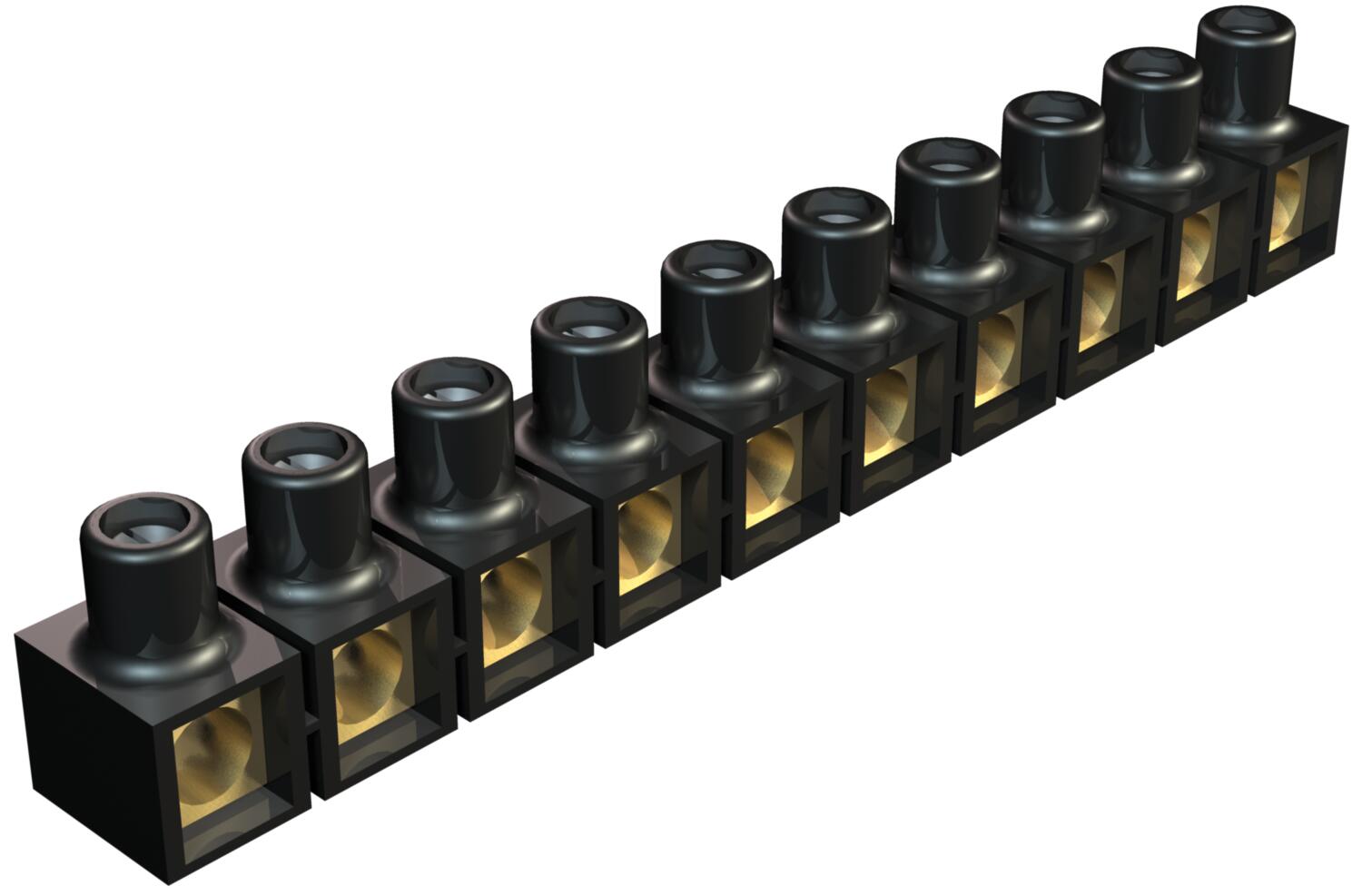

Terminals made of brass, screws of steel, galvanised and transparently passivated, 10-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 10 ÷ mm².
Nominal voltage 380 V.
Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm².

Technical data

Technical data

Closing plate required	no
Colour	Black
Connectable conductor cross-section, single-wire, max.	10 mm²
Connectable conductor cross-section, single-wire, min.	6 mm²
Connection position	Side
Cross-section	Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm² mm²
Dimension	10mm²

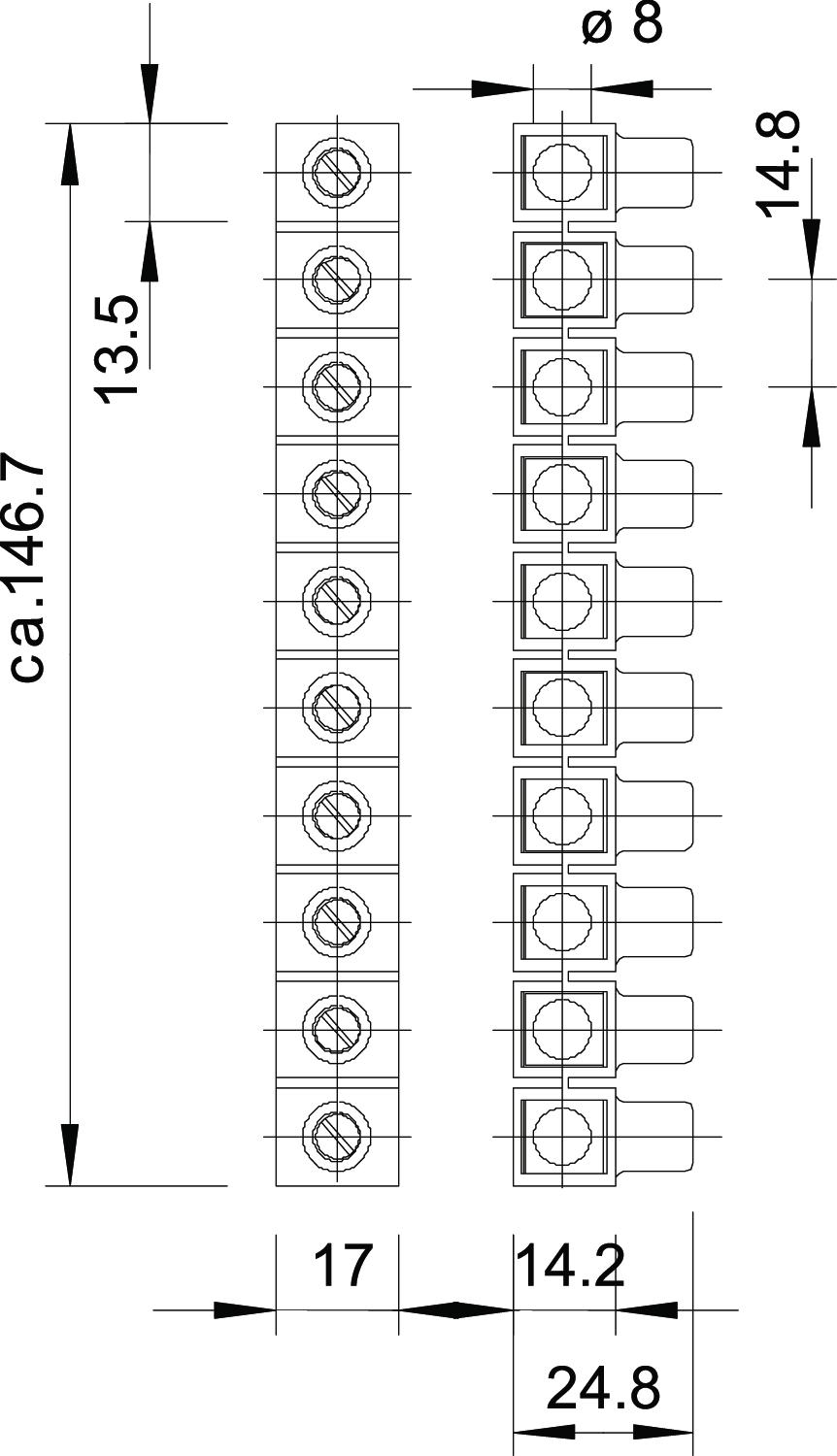

Drill hole spacing, centre	14,8 mm
Explosion-tested version	no
Height	24,8 mm
Insulation material	Thermoplast
Length	146,7 mm
Material	Polypropylene

No. of terminals	10
Nominal cross-section, min.	10 mm²
Nominal current	24 A
Nominal voltage	380 V
Number of screwless terminals per pole	1
Pole number	10
Suitable for flexible conductors	yes
Suitable for multi-wire conductors	yes
Suitable for solid conductors	no
Transparent	no
Version of electrical connection 1	Screw connection
Width	17 mm
