Divisible cable gland, seal insert, 1 cable, light grey 1 | | M25 x 1,5 | no | Light grey

Divisible cable gland, seal insert, 1 cable, light grey

Item no. 2024925 | EAN 4012196334568

Item no. / Types

Number of drill holes	1

Thread	M25 x 1,5

Sealing insert, multiple	no

Colour	Light grey

Product description

Product description

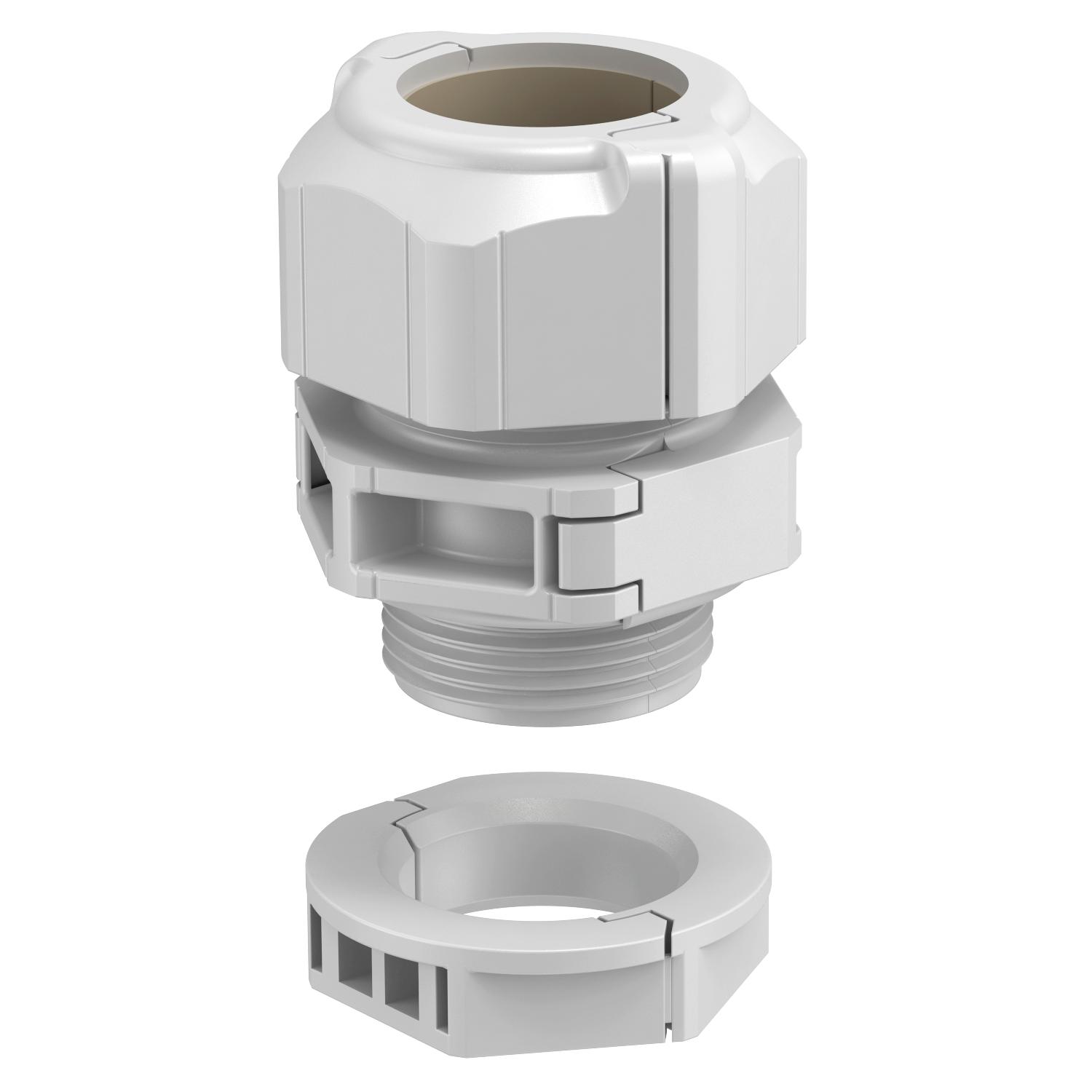

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.

The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

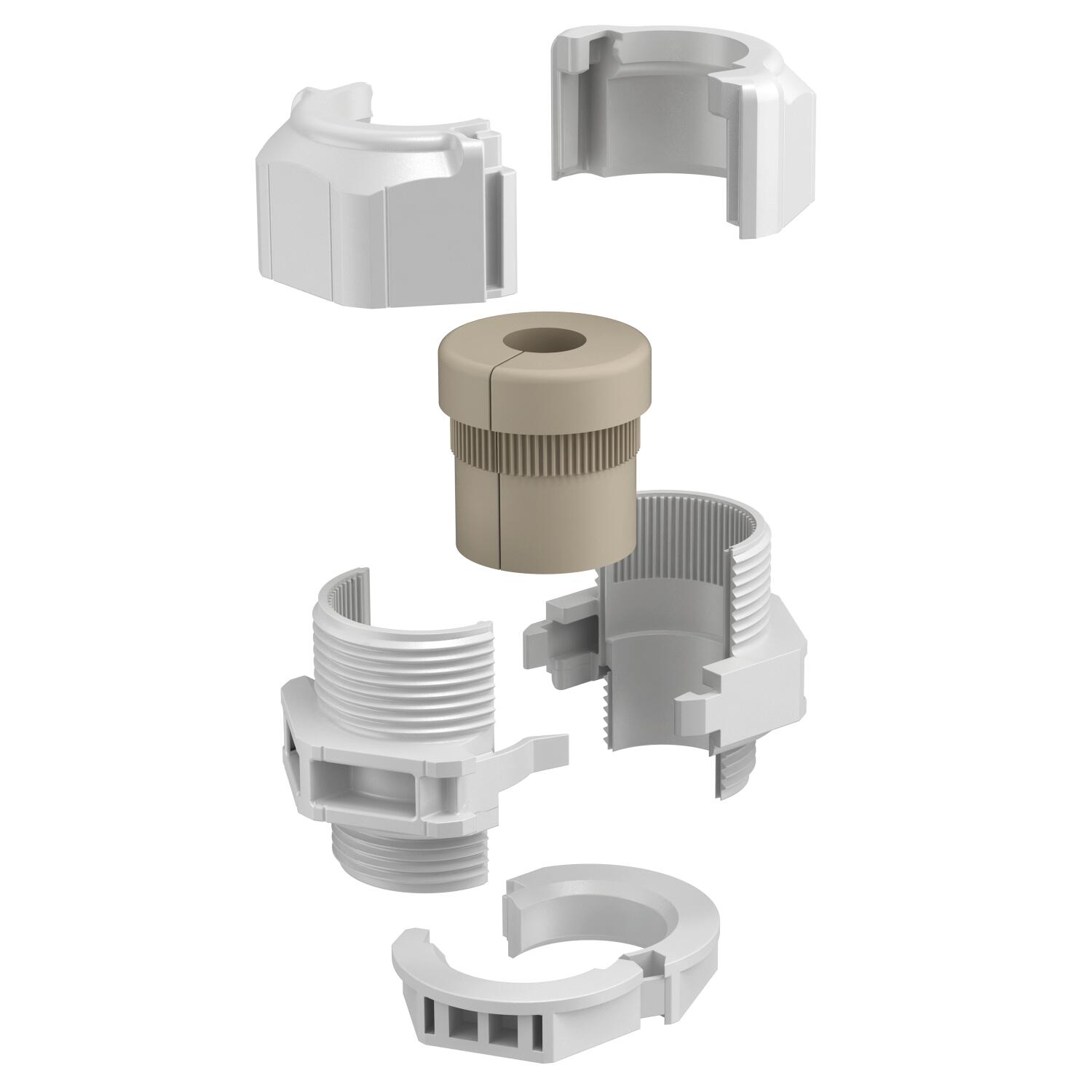

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.

Technical data

Technical data

Bend protection	no
Colour	Light grey
Dimension	M25
Dimension E1 (mm)	38,5 mm
Dimension E2	33,8 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	yes
Material	Polycarbonate
Nominal thread size	25
Number of drill holes	1
Permitted temperature range, max.	80 °C

Permitted temperature range, min.	-20 °C
Protection rating	IP67
Sealing area D, max.	20 mm
Sealing area D, min.	18 mm
Sealing insert, multiple	no
Splittable gland	yes
Strain relief option	no
Thread	M25 x 1,5
Thread increase	1,5 mm
Thread length	11 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	4 Nm
Version for	Straight
WAF 1	35 mm
WAF 2	31 mm
With locknut	yes

Dimensions

Dimension D	20 mm
Dimension G	M25x1,5 mm
Dimension L	41 mm
Dimension L max.	40 mm
Dimension L min.	31,5 mm
Dimension L1	11 mm

Dimension L2	10 mm
Dimension L3	9 mm
Height	50 mm
Length	35 mm
Width	38,5 mm

All types

All types

Types	Number of drill holes	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC TB25 05-07	1	M25 x 1,5	no	Light grey	2024912	piece	5 piece
V-TEC TB25 09-11	1	M25 x 1,5	no	Light grey	2024913	piece	5 piece
V-TEC TB25 11-13	1	M25 x 1,5	no	Light grey	2024916	piece	5 piece
V-TEC TB25 12-15	1	M25 x 1,5	no	Light grey	2024919	piece	5 piece
V-TEC TB25 14-18	1	M25 x 1,5	no	Light grey	2024922	piece	5 piece
V-TEC TB25 18-20	1	M25 x 1,5	no	Light grey	2024925	piece	5 piece
