- Product description
-
Product description

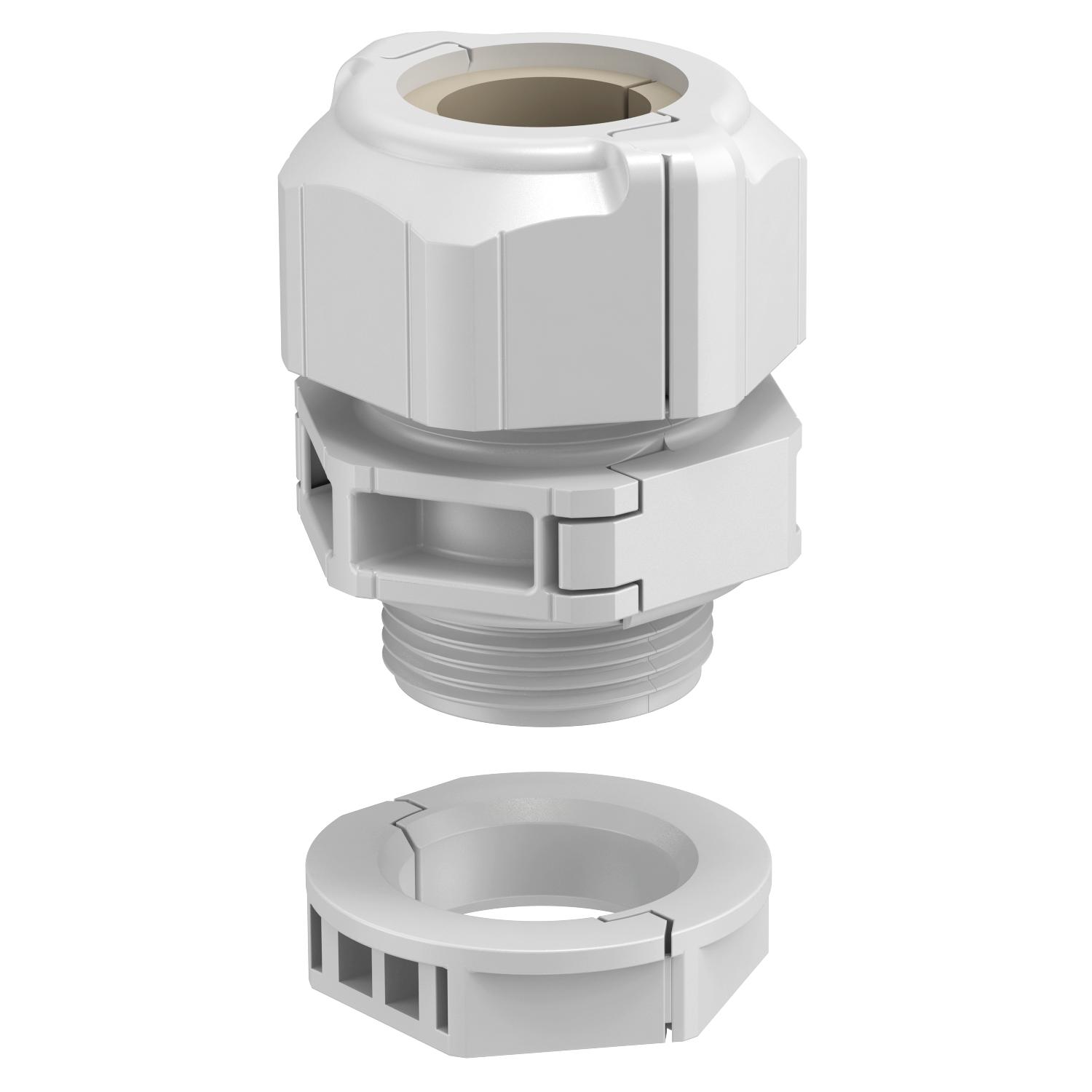

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.
The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

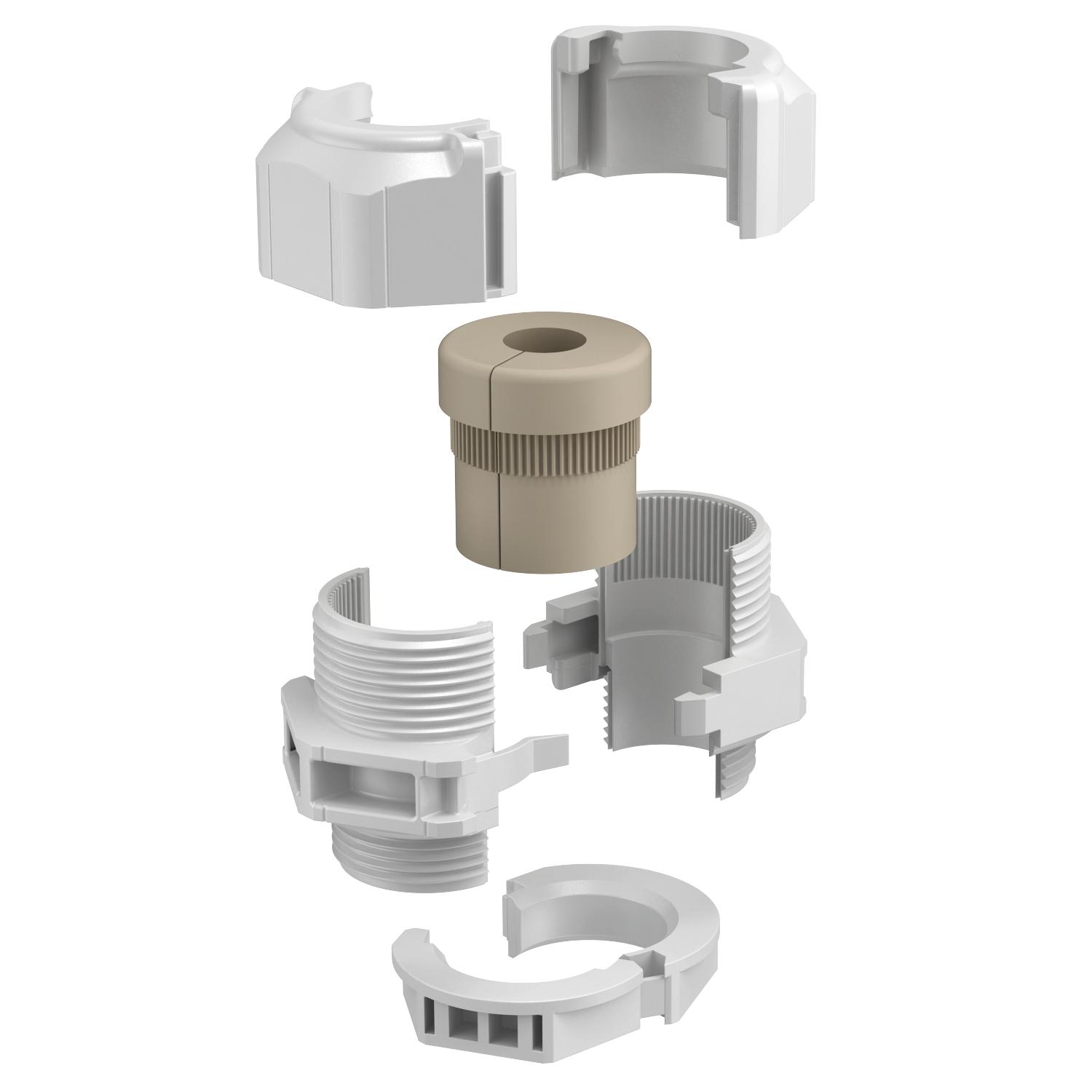

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
- Technical data
-
Technical data

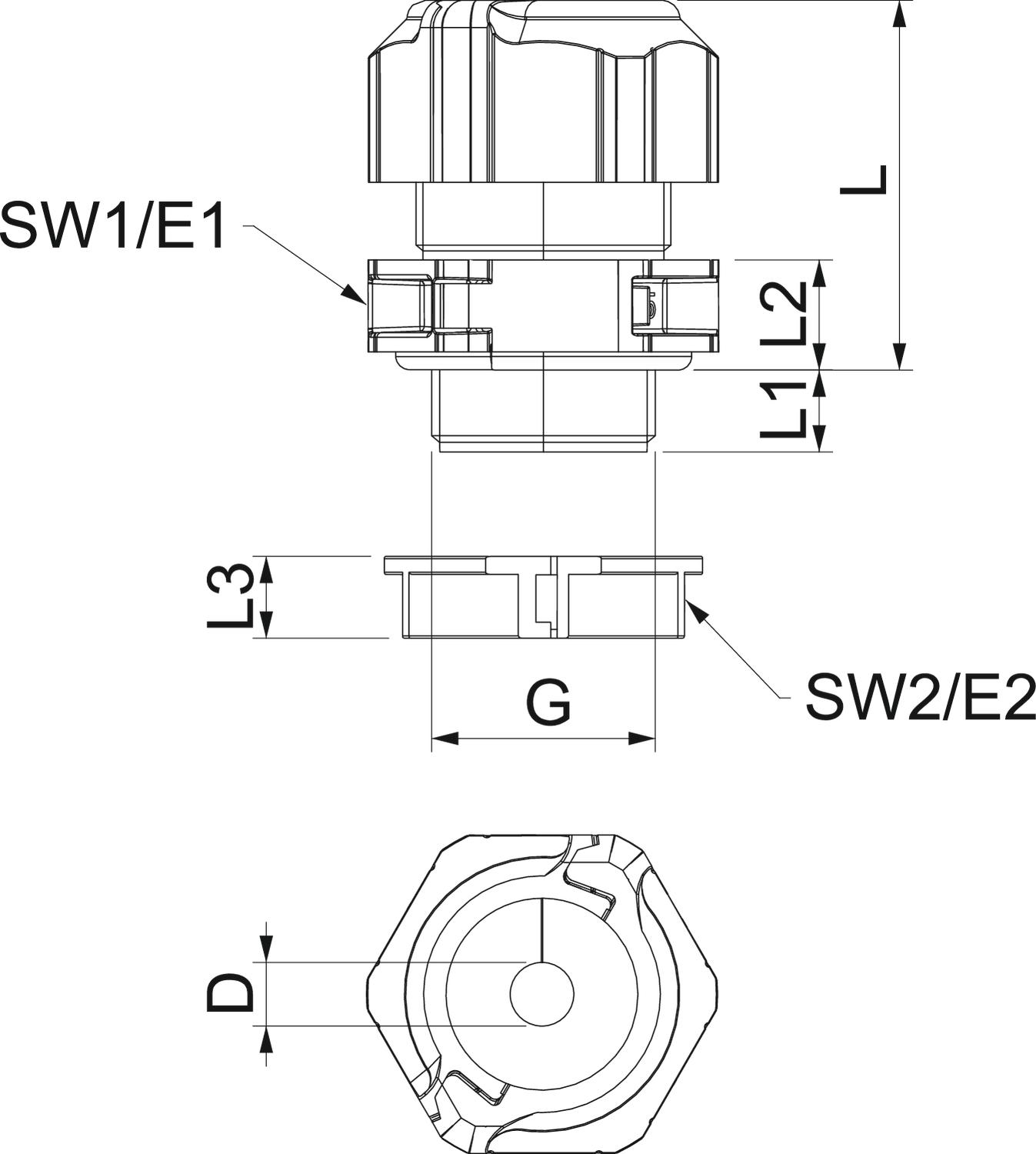

Bend protection no Colour Light grey Dimension M25 Dimension D 13 mm Dimension E1 (mm) 38,5 mm Dimension E2 33,8 mm Dimension G M25x1,5 mm Dimension L 41 mm Dimension L max. 40 mm Dimension L min. 31,5 mm Dimension L1 11 mm Dimension L2 10 mm Dimension L3 9 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 50 mm Impact-resistant yes Length 35 mm Material Polycarbonate Nominal thread size 25 Number of drill holes 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Protection rating IP67 Sealing area D, max. 13 mm Sealing area D, min. 11 mm Sealing insert, multiple no Splittable gland yes Strain relief option no Thread M25 x 1,5 Thread increase 1,5 mm Thread length 11 mm Thread type Metric Type of seal Sealing ring Unstable torque 4 Nm Version for Straight WAF 1 35 mm WAF 2 31 mm Width 38,5 mm With locknut yes - All types
-
All types
- Downloads
-
Data sheet V-TEC TB25 11-13 / 2024916 , 0.24MB , pdfDeclaration of conformity V-TEC TB25 11-13 / 2024916 , 0.05MB , pdfREACH Declaration of conformity V-TEC TB25 11-13 / 2024916 , 0.12MB , pdfRoHS Declaration of conformity V-TEC TB25 11-13 / 2024916 , 0.12MB , pdfMounting instructions Mounting instructions, V-TEC TB , 1.34MB , pdf
