- Product description
-

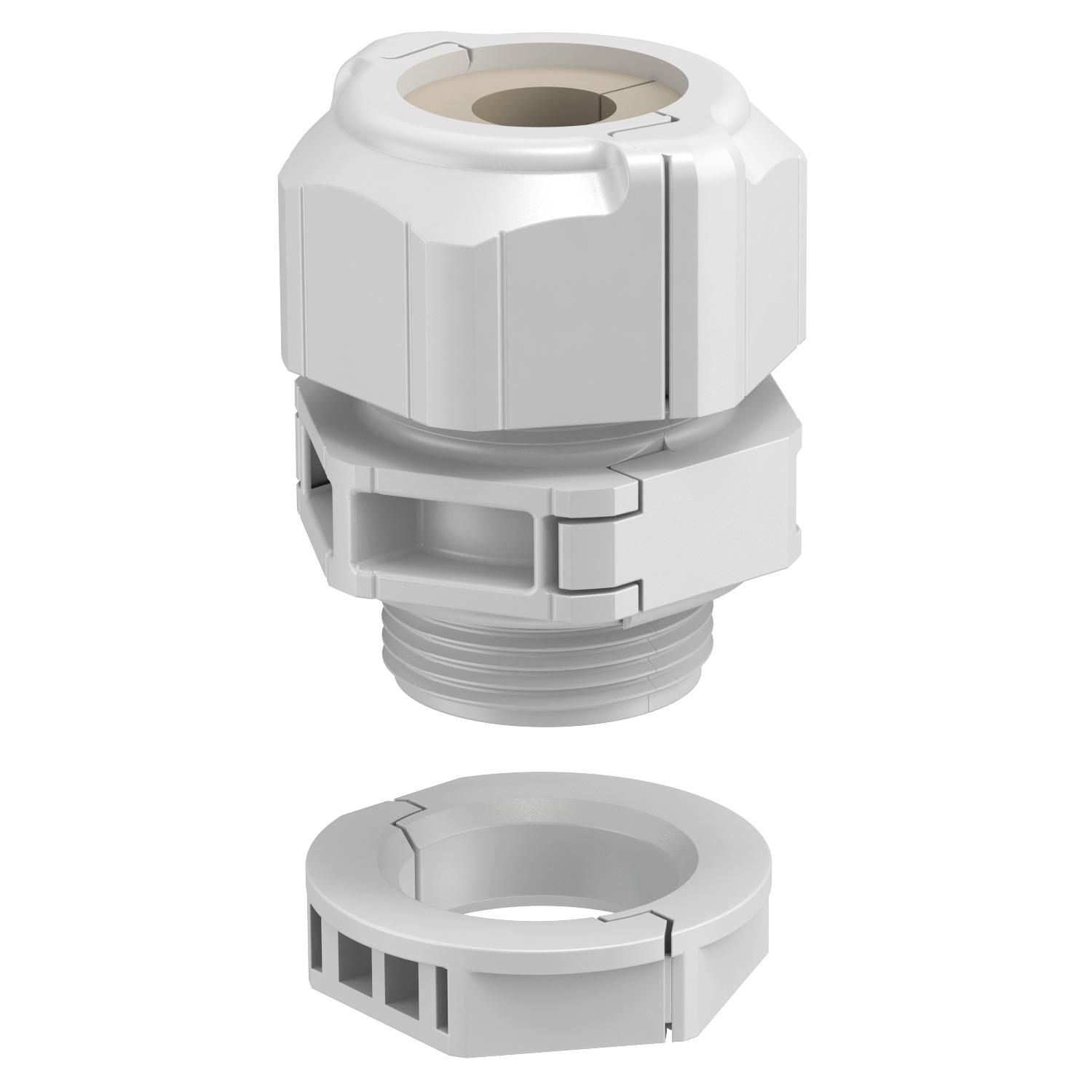

Product descriptionThe splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.
The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

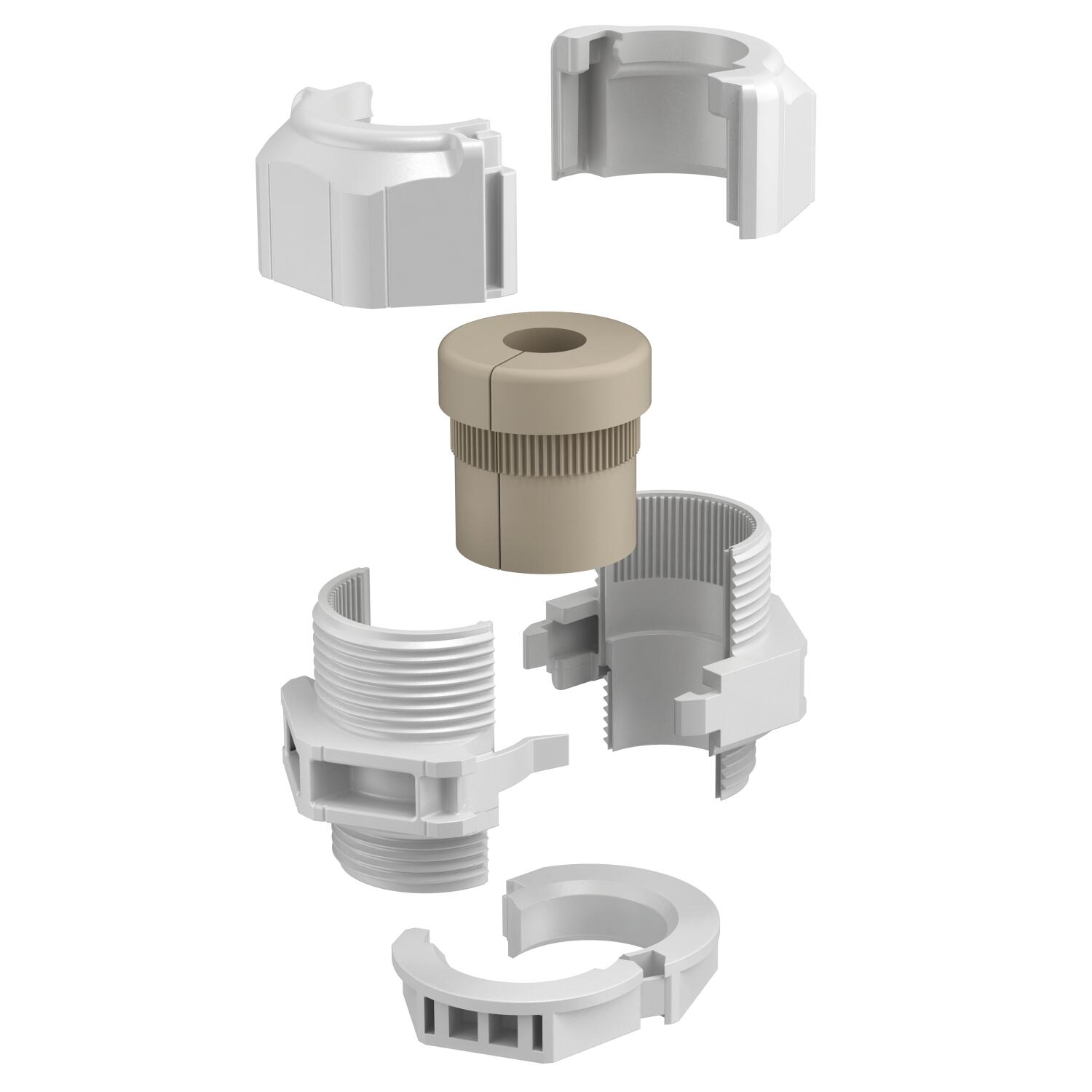

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
- Technical data
-
Technical data
Bend protection no Colour Light grey Dimension M20 Dimension D 14 mm Dimension E1 (mm) 33,5 mm Dimension E2 30 mm Dimension G M20x1,5 mm Dimension L 30 mm Dimension L max. 30,5 mm Dimension L min. 24,5 mm Dimension L1 10 mm Dimension L2 8,5 mm Dimension L3 8 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 40 mm Impact-resistant yes Length 30 mm Material Polycarbonate Nominal thread size 20 Number of drill holes 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Protection rating IP67 Sealing area D, max. 15,5 mm Sealing area D, min. 11,5 mm Sealing insert, multiple no Splittable gland yes Strain relief option no Thread M20 x 1,5 Thread increase 1,5 mm Thread length 10 mm Thread type Metric Type of seal Sealing ring Unstable torque 2 Nm Version for Straight WAF 1 30 mm WAF 2 27 mm Width 29 mm With locknut yes - All types
- Downloads
-
Data sheet V-TEC TB20 11-14 / 2024948 , 0.24MB , pdfEU declaration of conformity V-TEC TB20 11-14 / 2024948 , 0.05MB , pdfREACH Declaration of conformity V-TEC TB20 11-14 / 2024948 , 0.12MB , pdfRoHS Declaration of conformity V-TEC TB20 11-14 / 2024948 , 0.12MB , pdfMounting instructions V-TEC TB20 , 1.36MB , pdf
