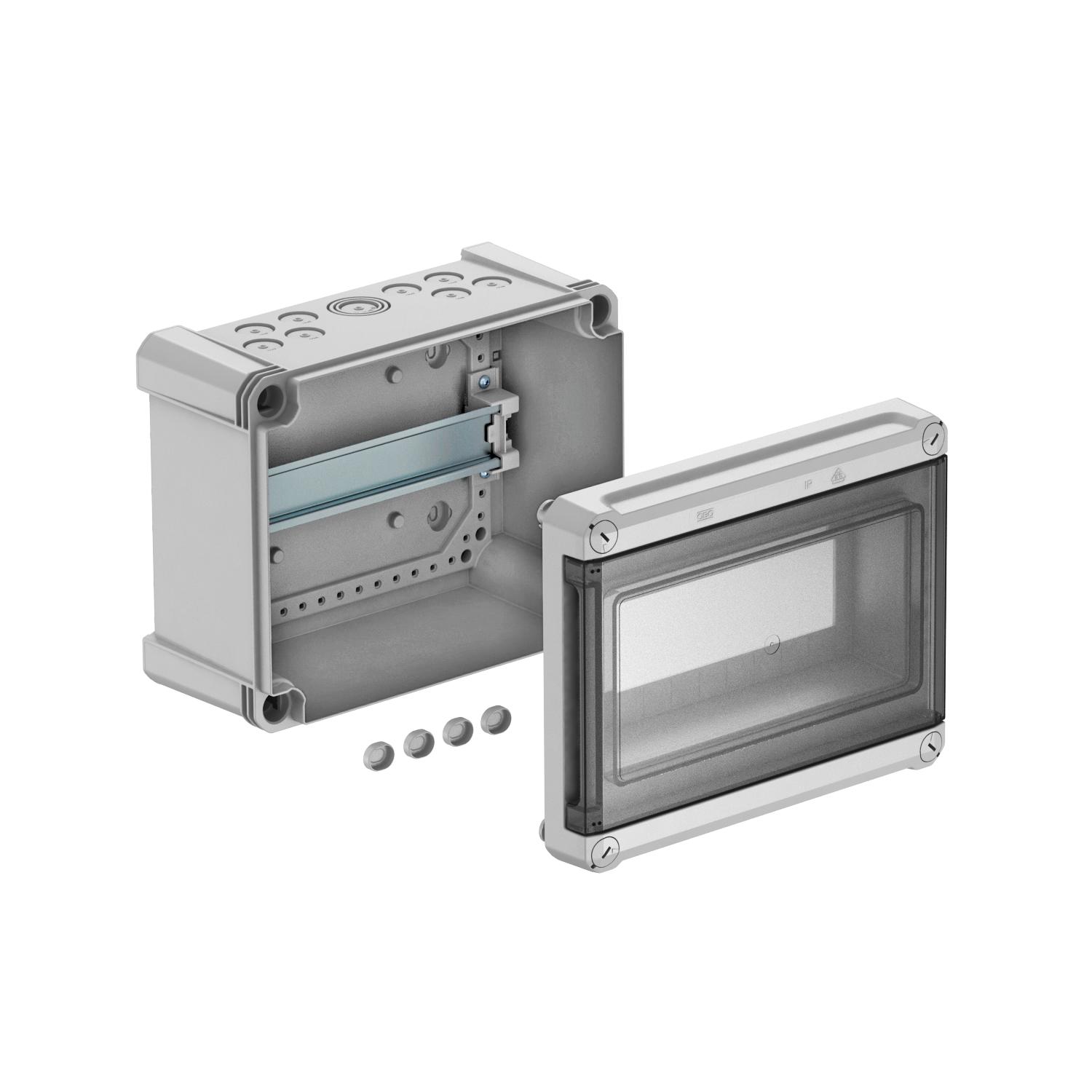

Distribution box, 9 division units, empty, polystyrene

Item no. 2008828 | EAN 4012196465729

2008828 / SDB 09L PS
241 mm
191 mm
126 mm
Product description

Product description

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 9 division units

- 8 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 20.7 W
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Protection rating IP 66
  • M20 entry
  • M25 entry
  • M32 entry
  • Thread metric
  • Nominal voltage 400 V
  • IK Code 07
Technical data

Technical data

Colour Light grey; RAL 7035
Cover type Cover
Dimension 240x191x125
DIN rail yes
EMC version no
Extension option yes
Height 126 mm
Length 241 mm
Material Polystyrene
Mounting type, consumer units Structure
Nominal current 63 A
Nominal voltage 400 V
Number of rows 1
Protection rating IP66
Protection rating IK code IK07.
Transparent lid yes
Version, small distributor cover With cut-out
Width 191 mm
Width in divisional units 9
With lock no
With mounting plate no
All types

All types

Types Length Width Height Item no. Quantity SSU
SDB 09L PS 241 mm 191 mm 126 mm 2008828
1 piece
