Distribution box, 3 division units, empty, polycarbonate

Item no. 2008860 | EAN 4012196465781

2008860 / SDB 03L PC
191 mm
151 mm
126 mm
Product description

Product description

Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.

- Protection-insulated for a maximum of 3 division units

- 2 break-out openings each of Ø 20 mm at the top and bottom

- 1 combination break-out opening each of Ø 20/25 mm at the top and bottom

- 4 screw cover caps
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • UV-resistant
  • Flame resistant 850 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 66
  • M20 entry
  • M25 entry
  • Thread metric
  • Nominal voltage 400 V
  • IK Code 08
Technical data

Technical data

Colour Light grey; RAL 7035
Cover type Cover

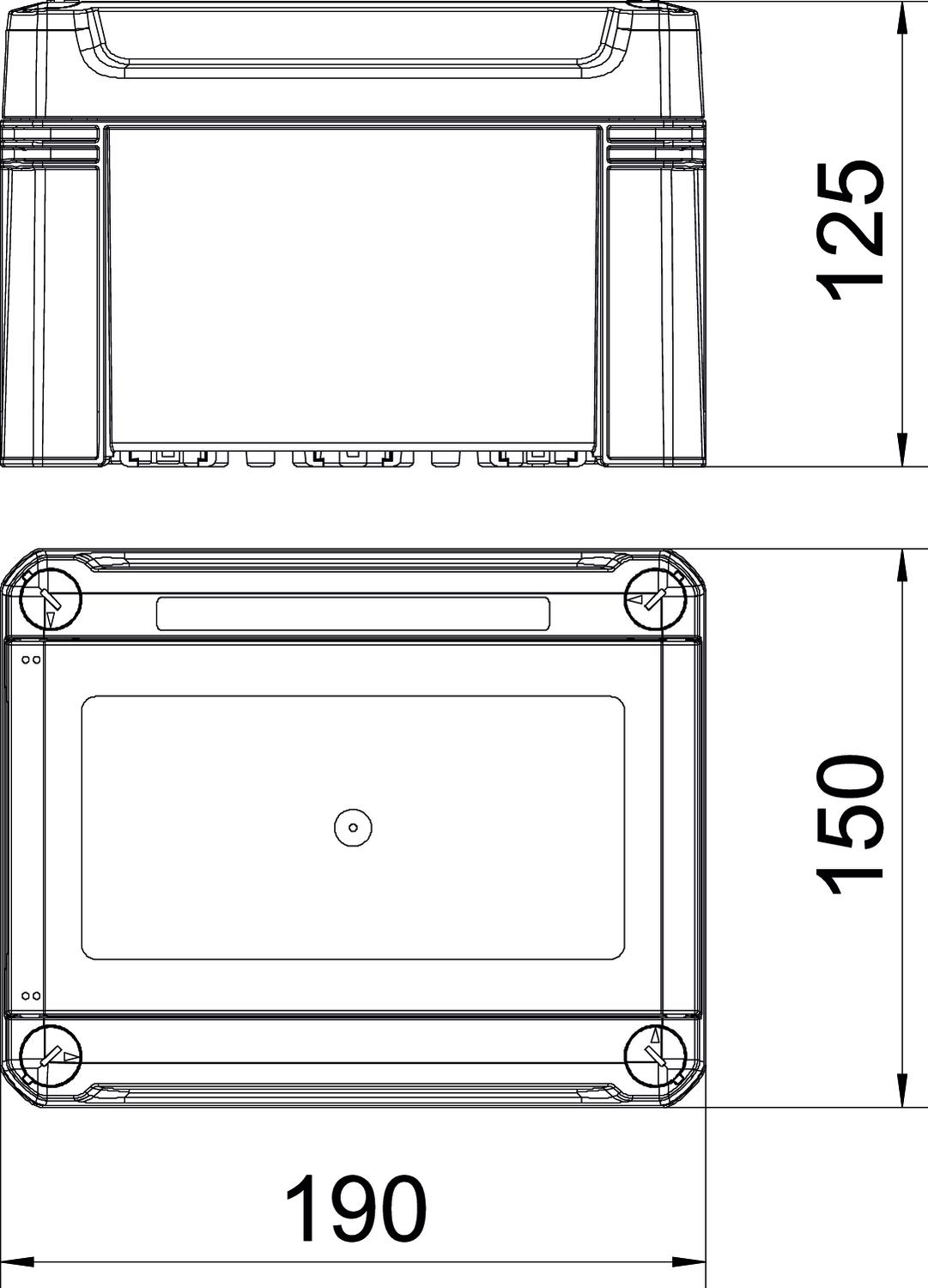

Dimension 150x190x125
DIN rail yes
EMC version no
Extension option yes
Height 126 mm
Length 191 mm
Material Polycarbonate
Mounting type, consumer units Structure
Nominal current 40 A
Nominal voltage 400 V
Number of rows 1
Protection rating IP66
Protection rating IK code IK08
Transparent lid yes
Version, small distributor cover With cut-out
Width 151 mm
Width in divisional units 3
With lock no
With mounting plate no
All types

All types

Types Length Width Height Item no. Quantity SSU
SDB 03L PC 191 mm 151 mm 126 mm 2008860
1 piece
