DIN cross-connector for flat conductor A4
Item no. 5314659 | EAN 4012195893080
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
Dimension 30mm Fit max. FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Flat conductor Fl 30 / Fl 30 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

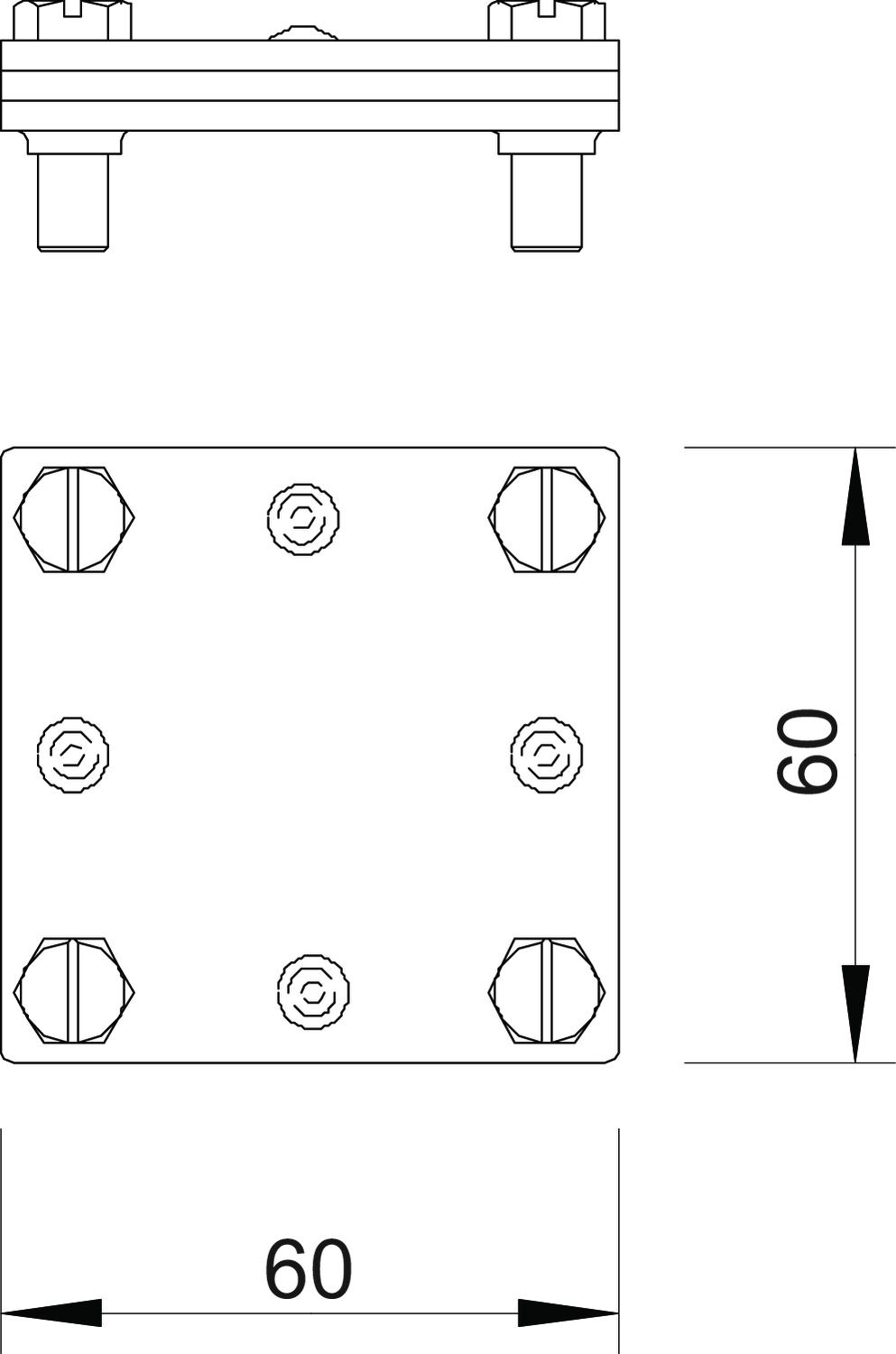

Dimension A 60 mm Dimension B 60 mm - All types
- Downloads
-
Data sheet 256 A-DIN 30 V4A / 5314659 , 0.21MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
