DIN cross-connector for flat conductor A2
Item no. 5314720 | EAN 4012195925873
- Product description
-
Product description

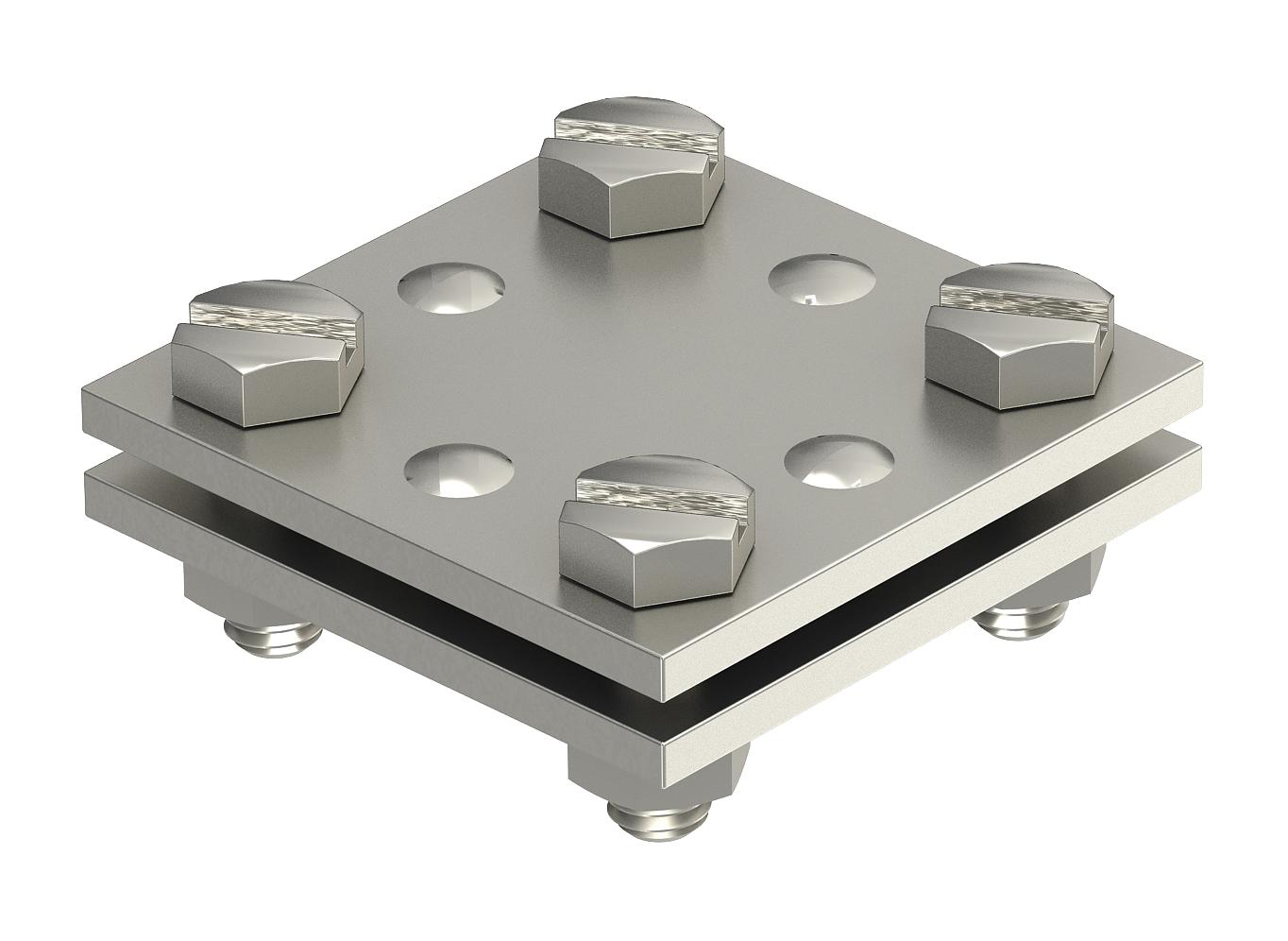

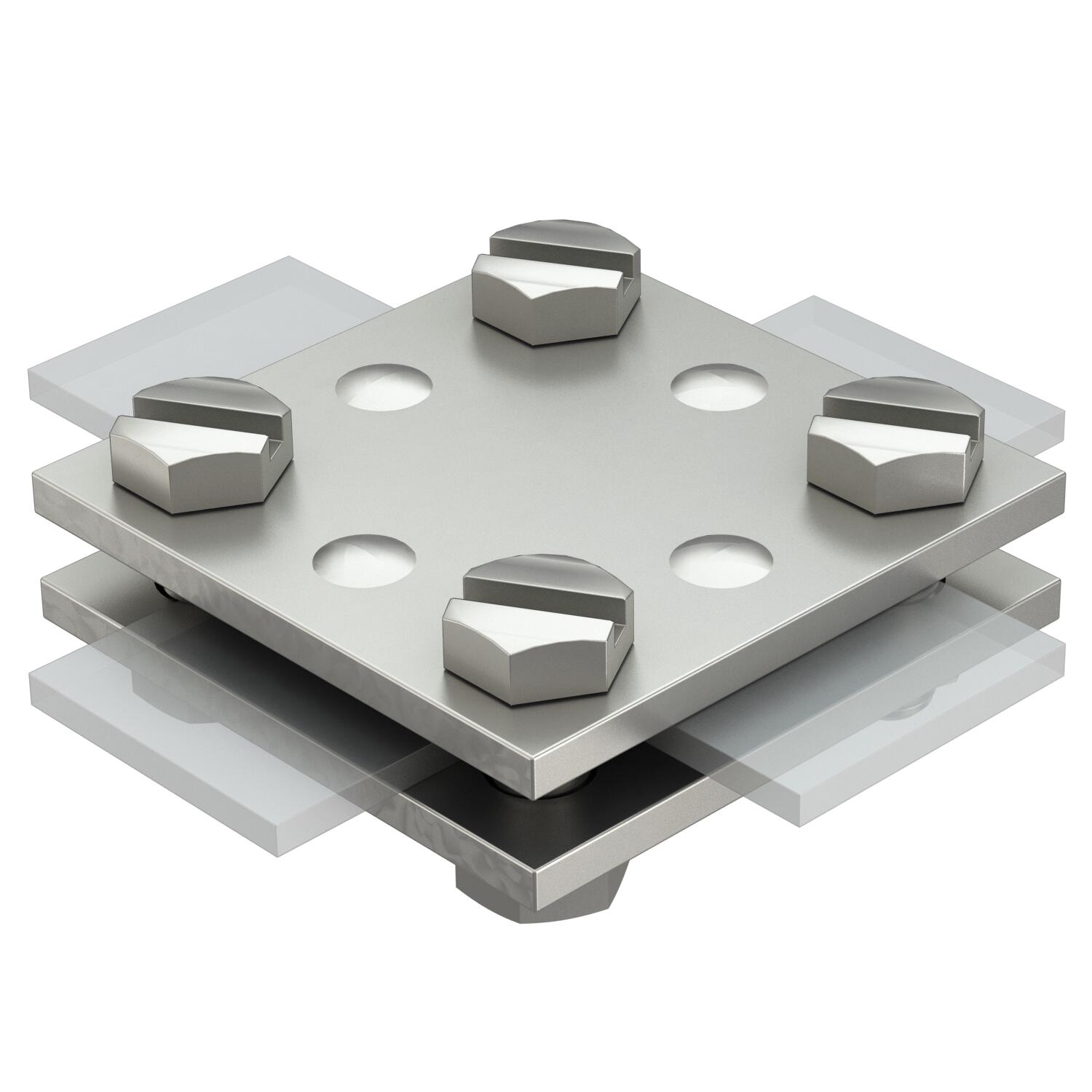

256/A-DIN ..: Cross-connector for flat conductors
• Material: Stainless steel, material no. 1.4301
• Seat: Max. FL30 mm
• Without intermediate plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
• DIN 48845, shape H
-
- Technical data
-
Technical data
Dimension 30mm Fit max. FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Flat conductor Fl 30 / Fl 30 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

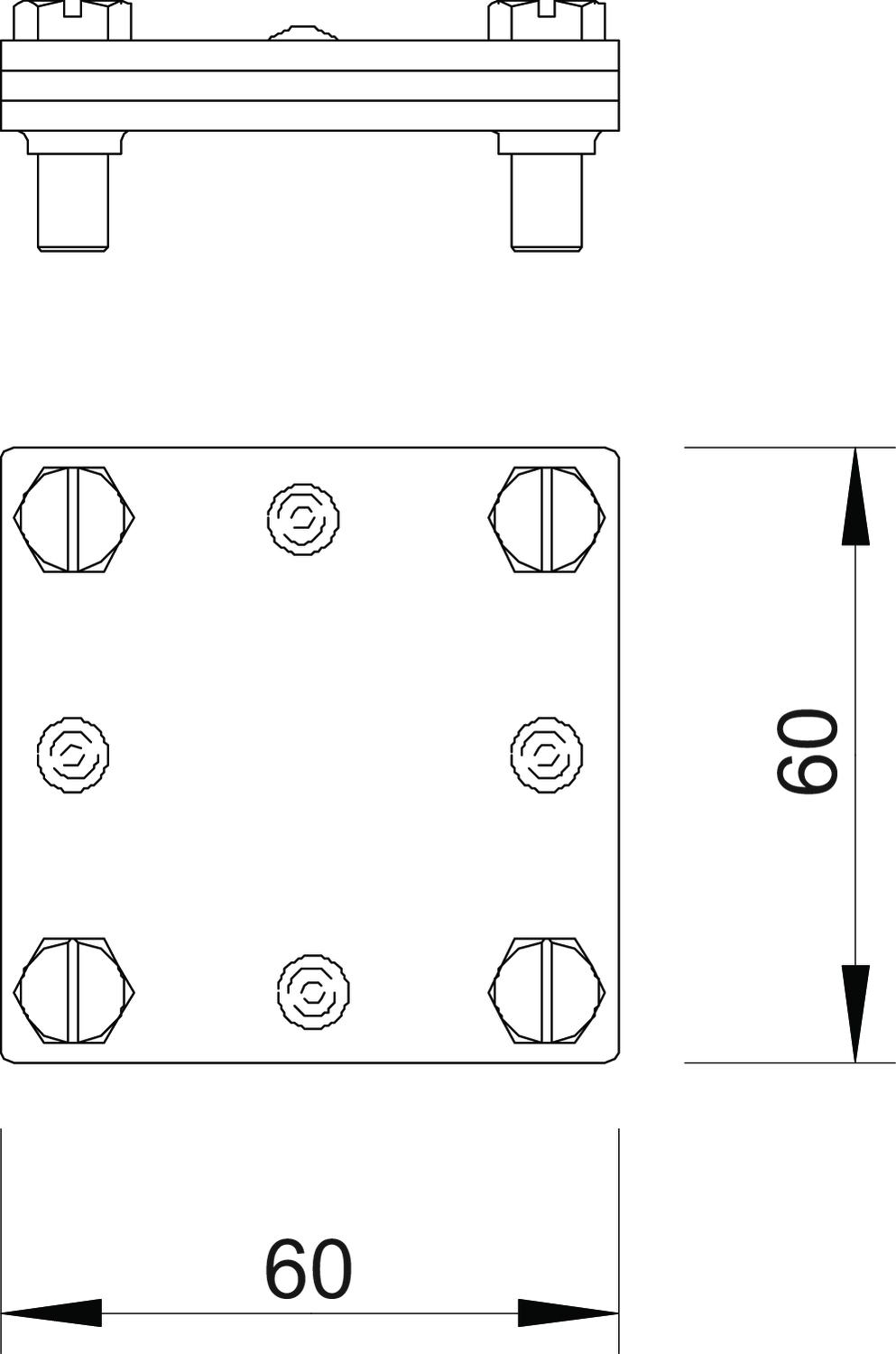

Dimension A 60 mm Dimension B 60 mm - All types
- Downloads
-
Data sheet 256 A-DIN 30 VA / 5314720 , 0.23MB , pdfREACH Declaration of conformity 256 A-DIN 30 VA / 5314720 , 0.12MB , pdfRoHS Declaration of conformity 256 A-DIN 30 VA / 5314720 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
