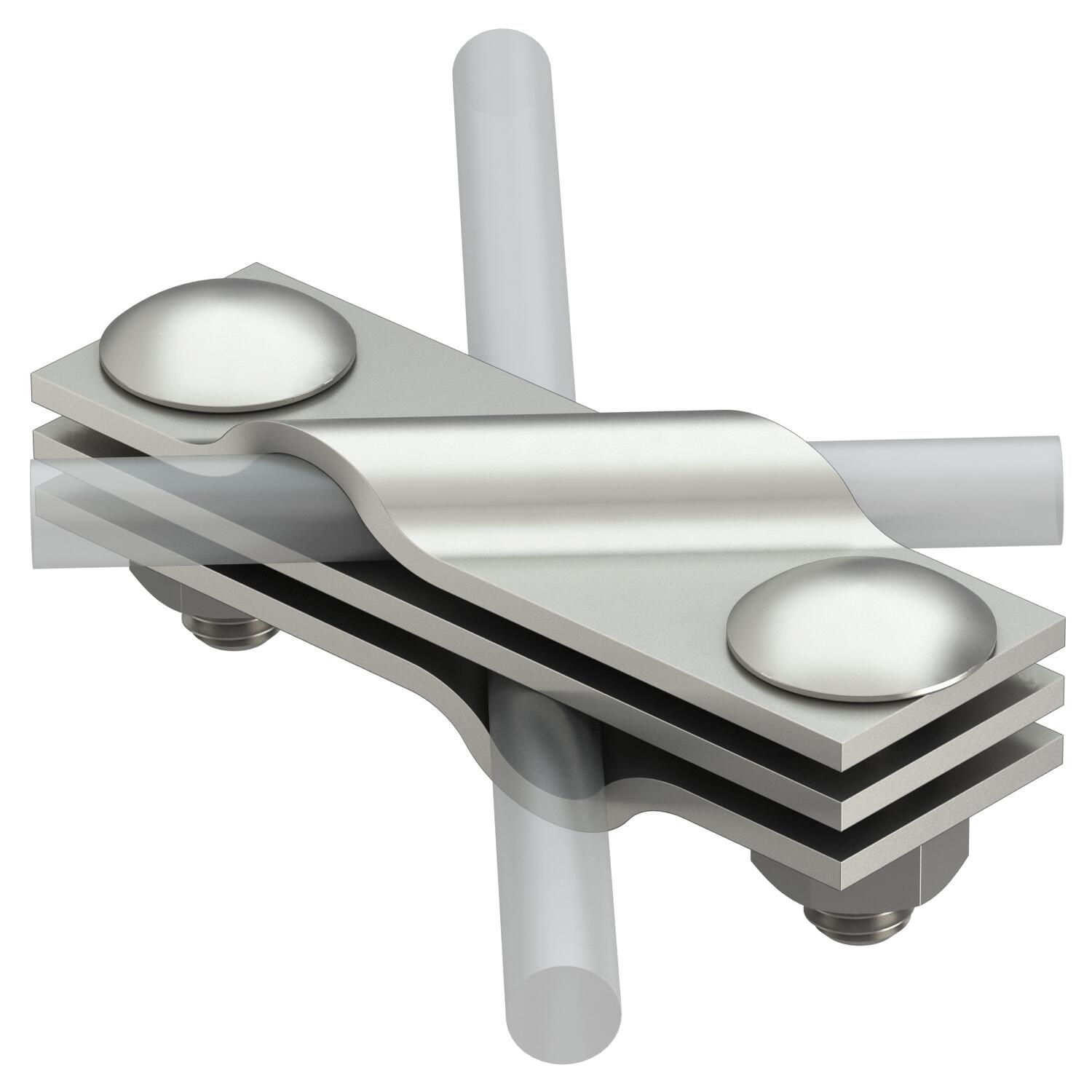

Diagonal connector with intermediate plate, for A2 round conductor
Item no. 5001612 | EAN 4012195721123
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
• With adapter plate
-
- Technical data
-
Technical data

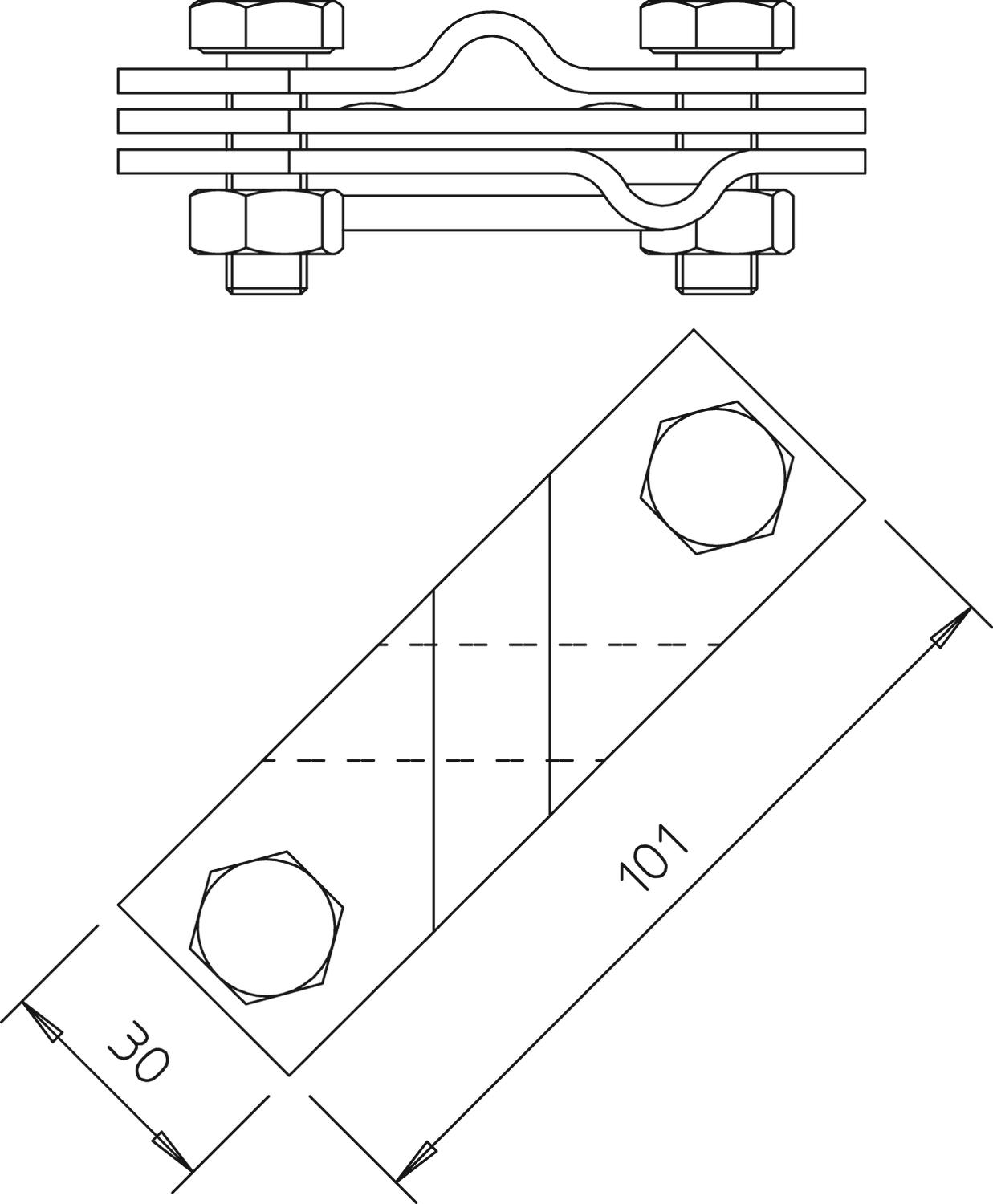

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension RD 8 Dimension A 101 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Connectors Type of fastening screw Gutter bolt - All types
- Downloads
-
Data sheet 2760 8 / 5001612 , 0.18MB , pdfEU declaration of conformity 2760 8 / 5001612 , 0.06MB , pdf
