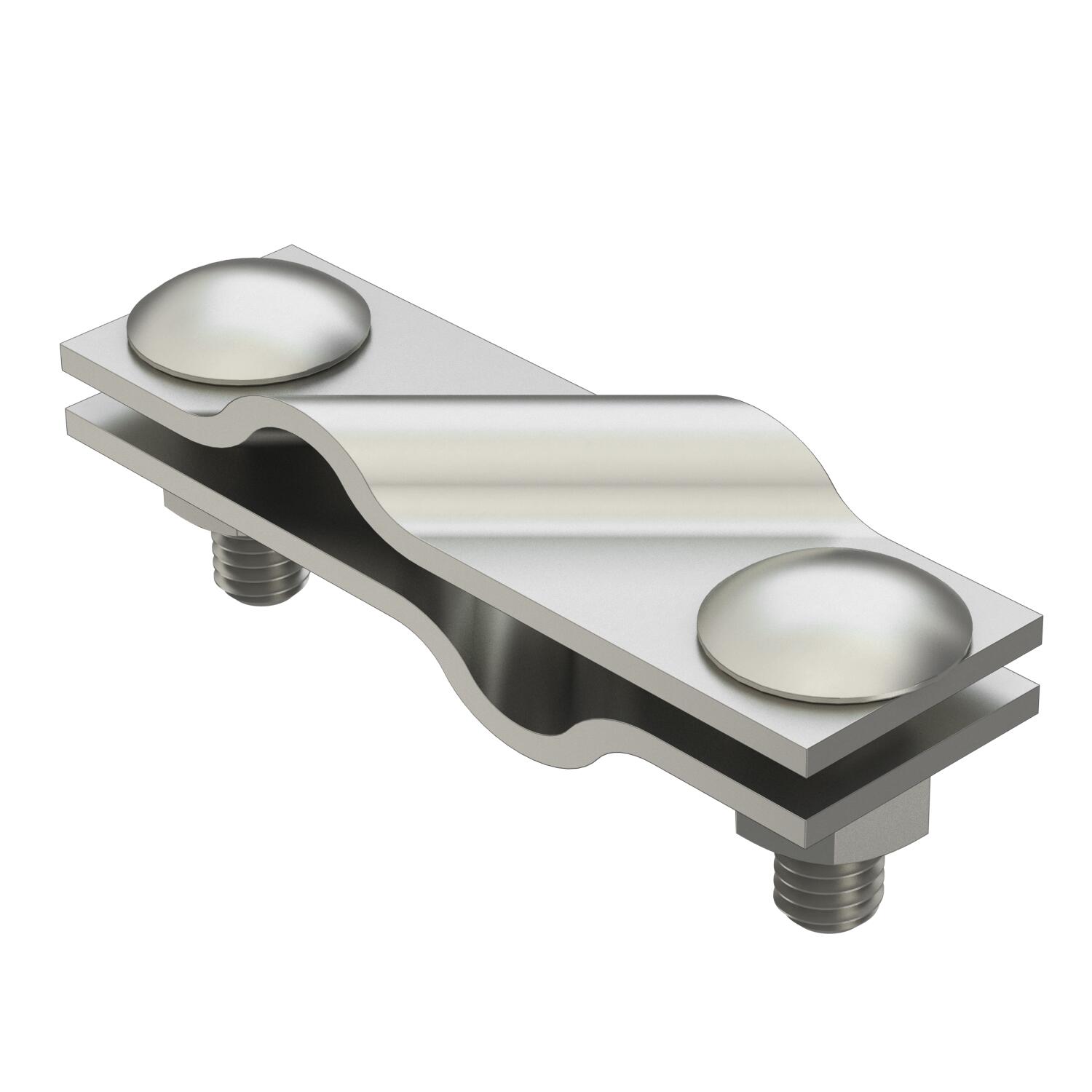

Diagonal connector for A4 round conductor
Item no. 5313013 | EAN 4012196466290
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
-
- Technical data
-
Technical data

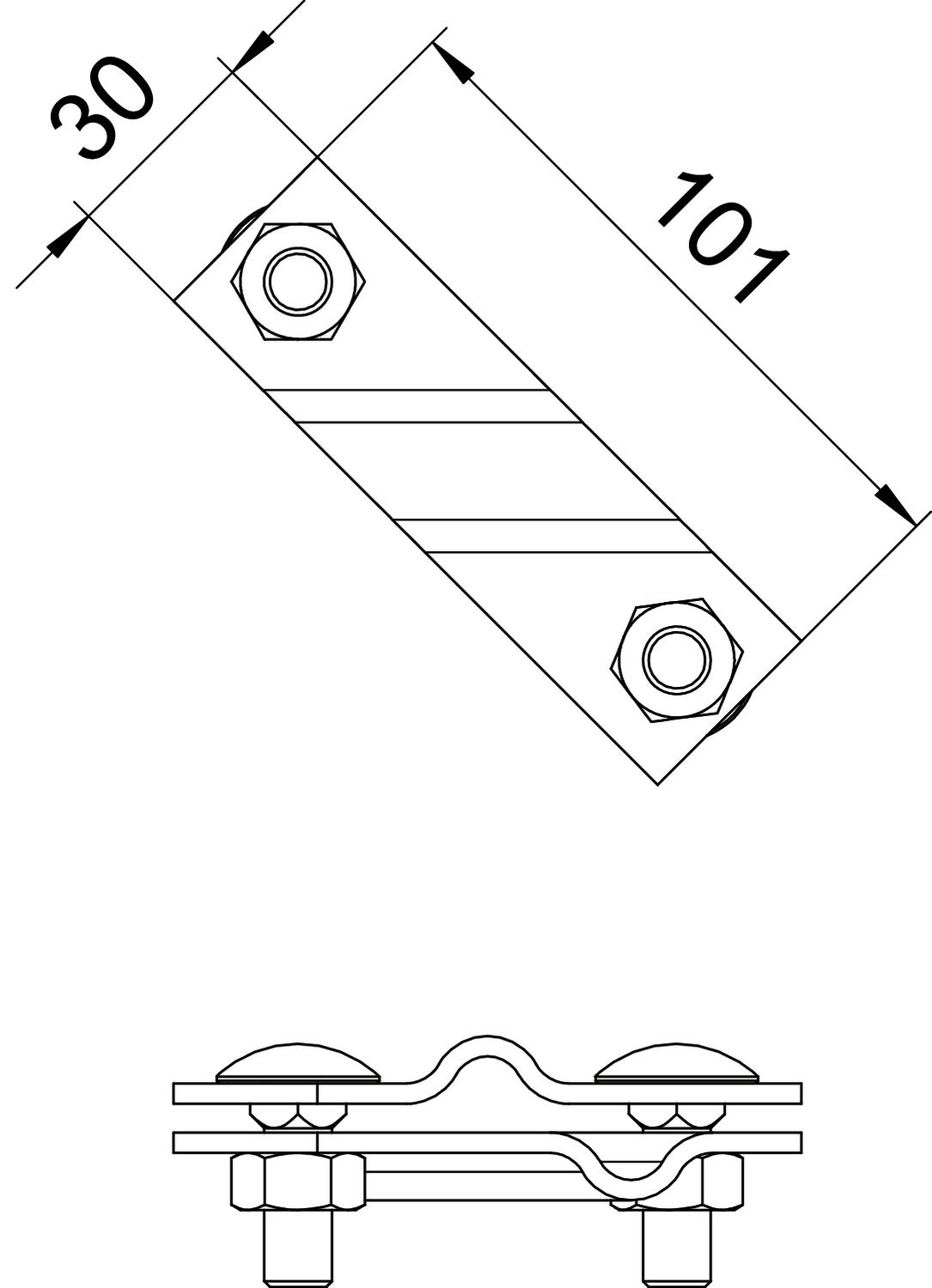

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 101x30 Dimension A 101 mm Fit Rd 8-10 mm Height 35 mm Intermediate plate no Length 101 mm Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Connectors Type of fastening screw Gutter bolt Width 30 mm - All types
- Downloads
-
Data sheet 2760 8-10 V4A / 5313013 , 0.17MB , pdfDeclaration of conformity 2760 8-10 V4A / 5313013 , 0.06MB , pdf
