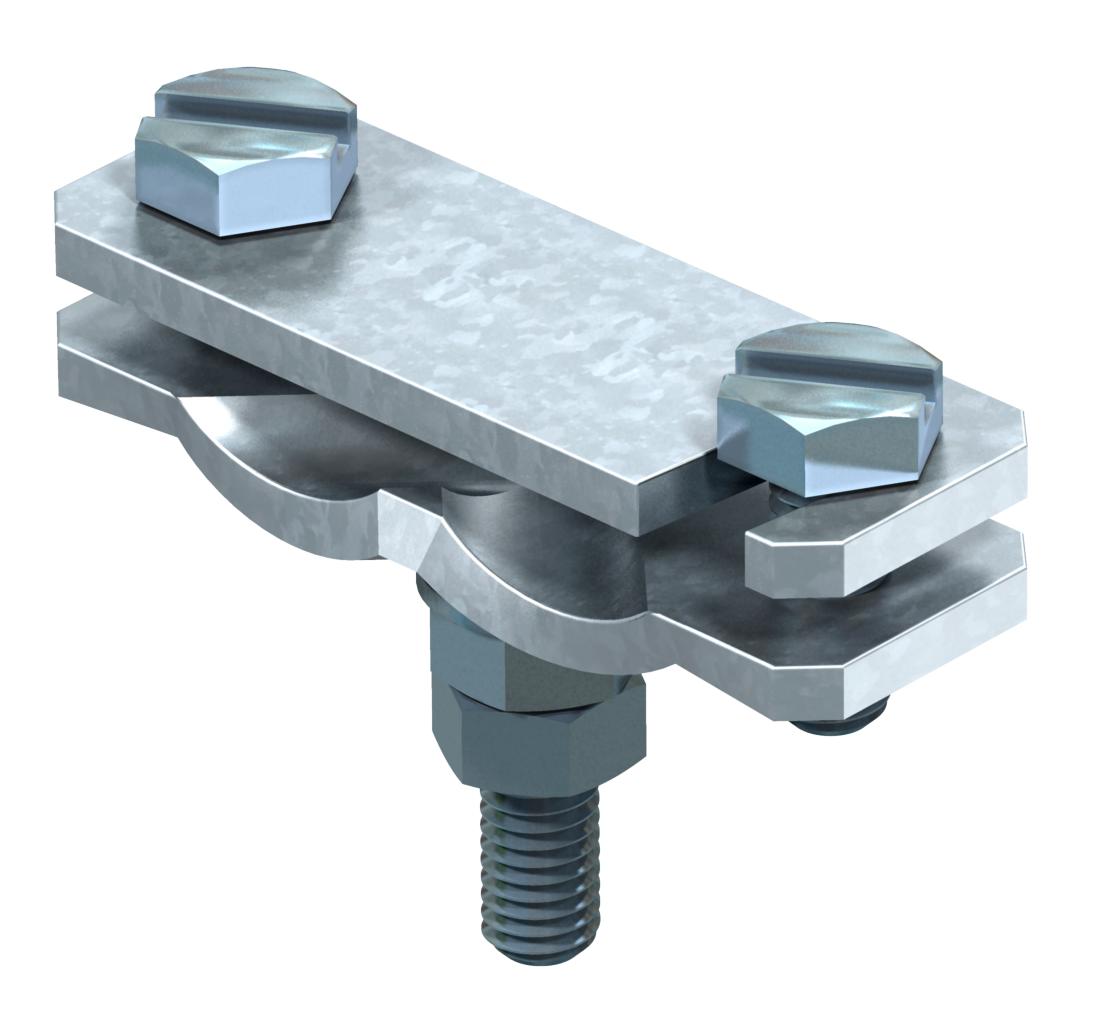

Diagonal clamp with bolt FT
Item no. 5313066 | EAN 4012195806530
- Product description
-
Product description
• For reinforced steels Ø 6-22 mm and flat conductor 50 x 4
• Installed with bolts M10 x 25
• Simple installation with open slot
• With flange-welded bolts M10 x 40, inc. 2 washers and 2 nuts
-
- Technical data
-
Technical data

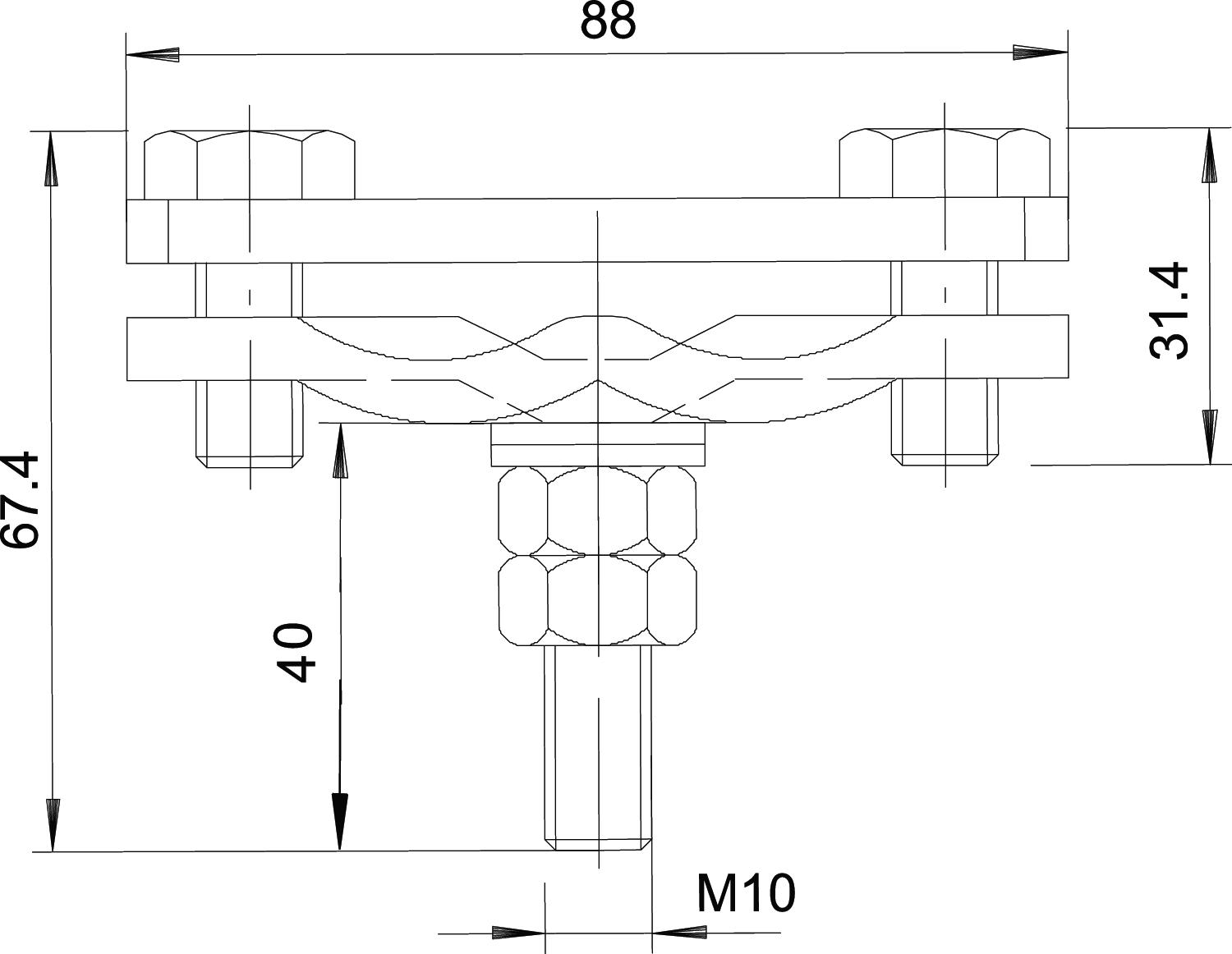

Dimension 88x30x70 Dimension L 25 mm Fit Rd 6-22/max. FL50 mm Flat conductor width, conductor 2, max. 5 Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 22 mm Round conductor diameter, conductor 1, min. 6 mm Suitable for connection Miscellaneous Surface Hot galvanized Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 250 A-BO / 5313066 , 0.20MB , pdfREACH Declaration of conformity 250 A-BO / 5313066 , 0.12MB , pdfRoHS Declaration of conformity 250 A-BO / 5313066 , 0.12MB , pdfLabel approval Diagonal clamp 250 A-BO , 0.10MB , pdf
