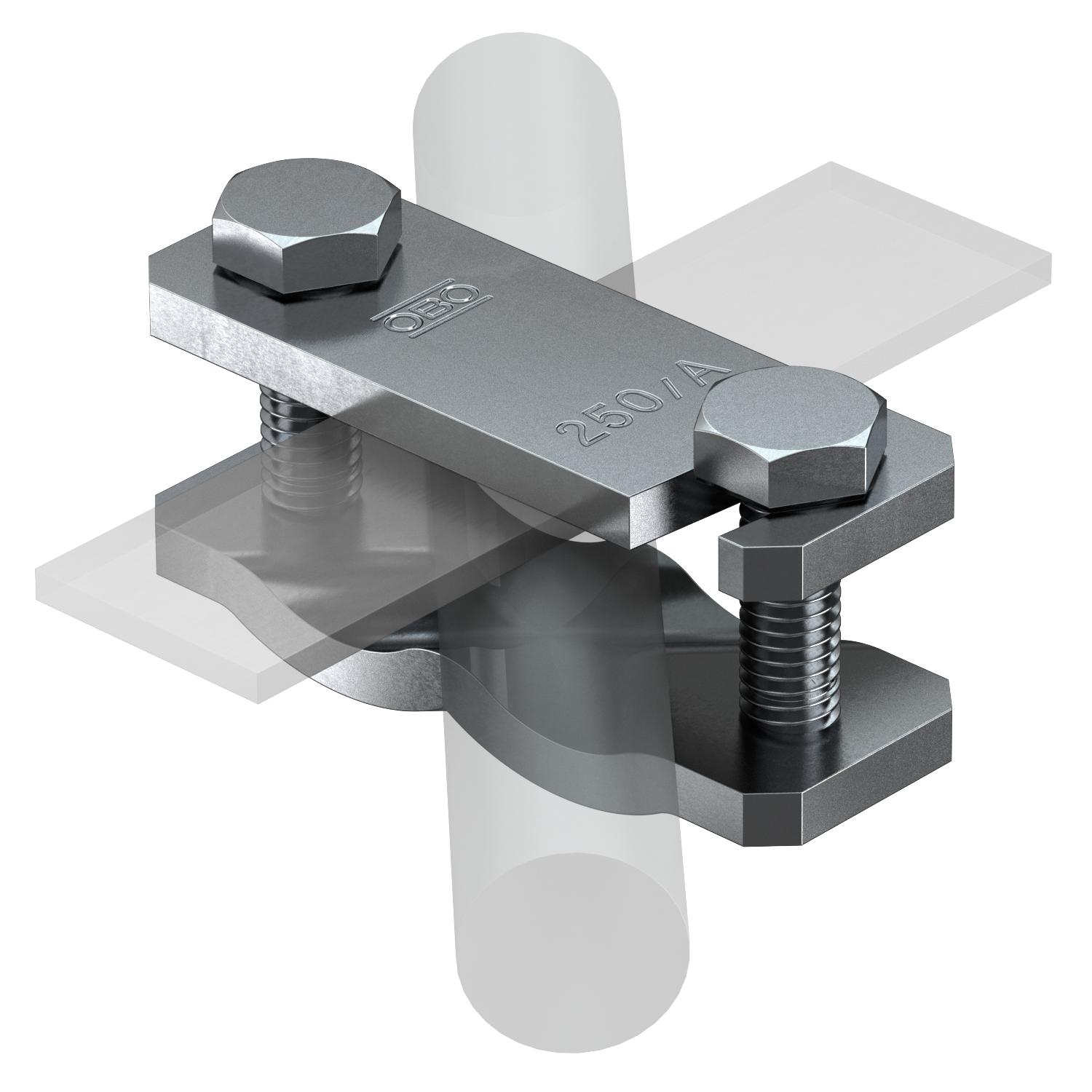

Diagonal clamp for flat conductors and round conductors FT
Item no. 5313058 | EAN 4012195237372
- Product description
-
Product description• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Version ...-AS with bolts M10 x 30
• Simple mounting through open slot
-
- Technical data
-
Technical data

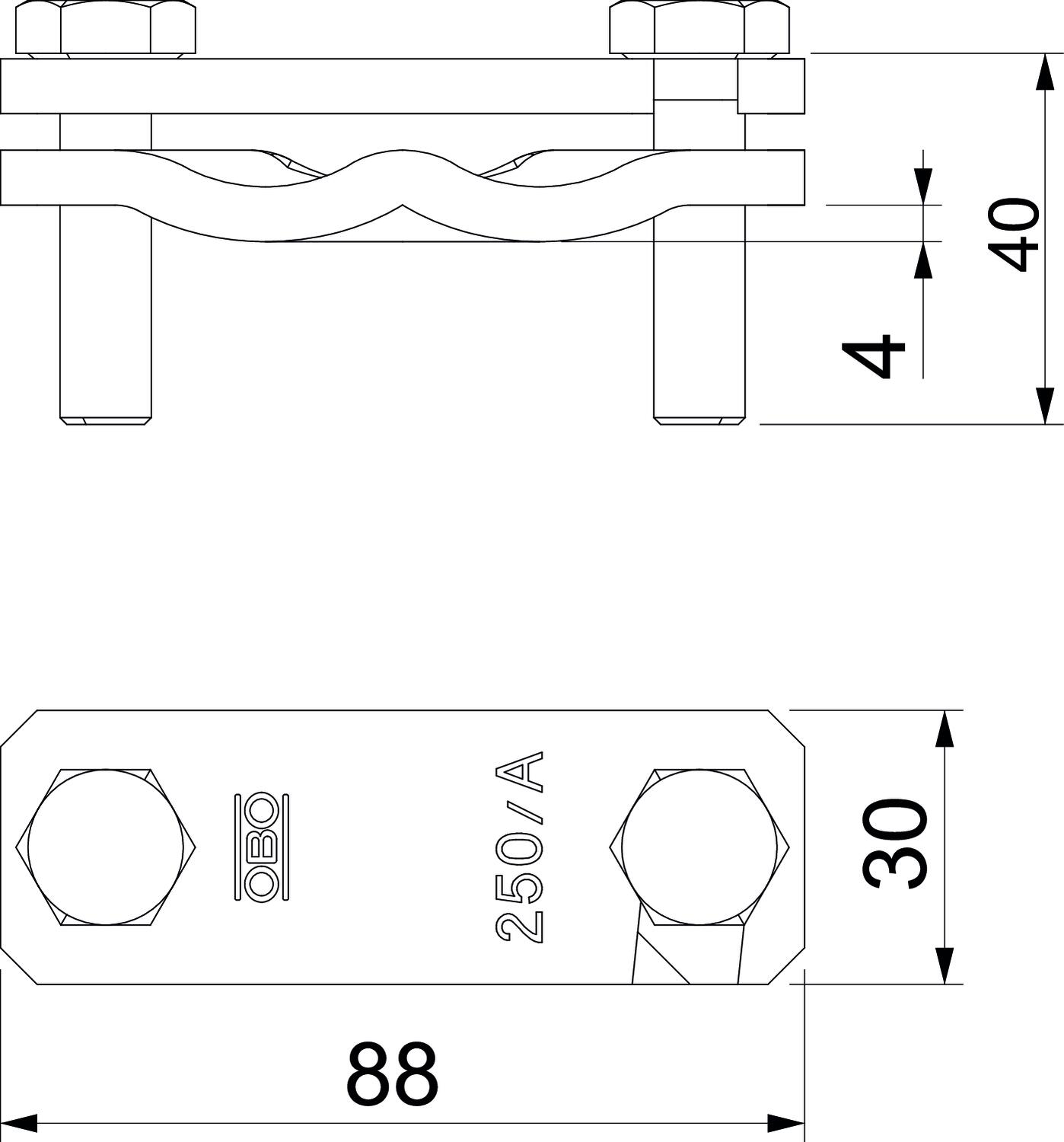

Dimension 88x30x45 Dimension A 30 mm Dimension B 88 mm Dimension L 40 mm Fit Rd 6-22/ max. FL50 mm Flat conductor width, conductor 2, max. 50 Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 22 mm Round conductor diameter, conductor 1, min. 6 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,3 Suitable for connection Miscellaneous Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 250 A / 5313058 , 0.23MB , pdfEU declaration of conformity 250 A / 5313058 , 0.06MB , pdfREACH Declaration of conformity 250 A / 5313058 , 0.12MB , pdfRoHS Declaration of conformity 250 A / 5313058 , 0.12MB , pdf
