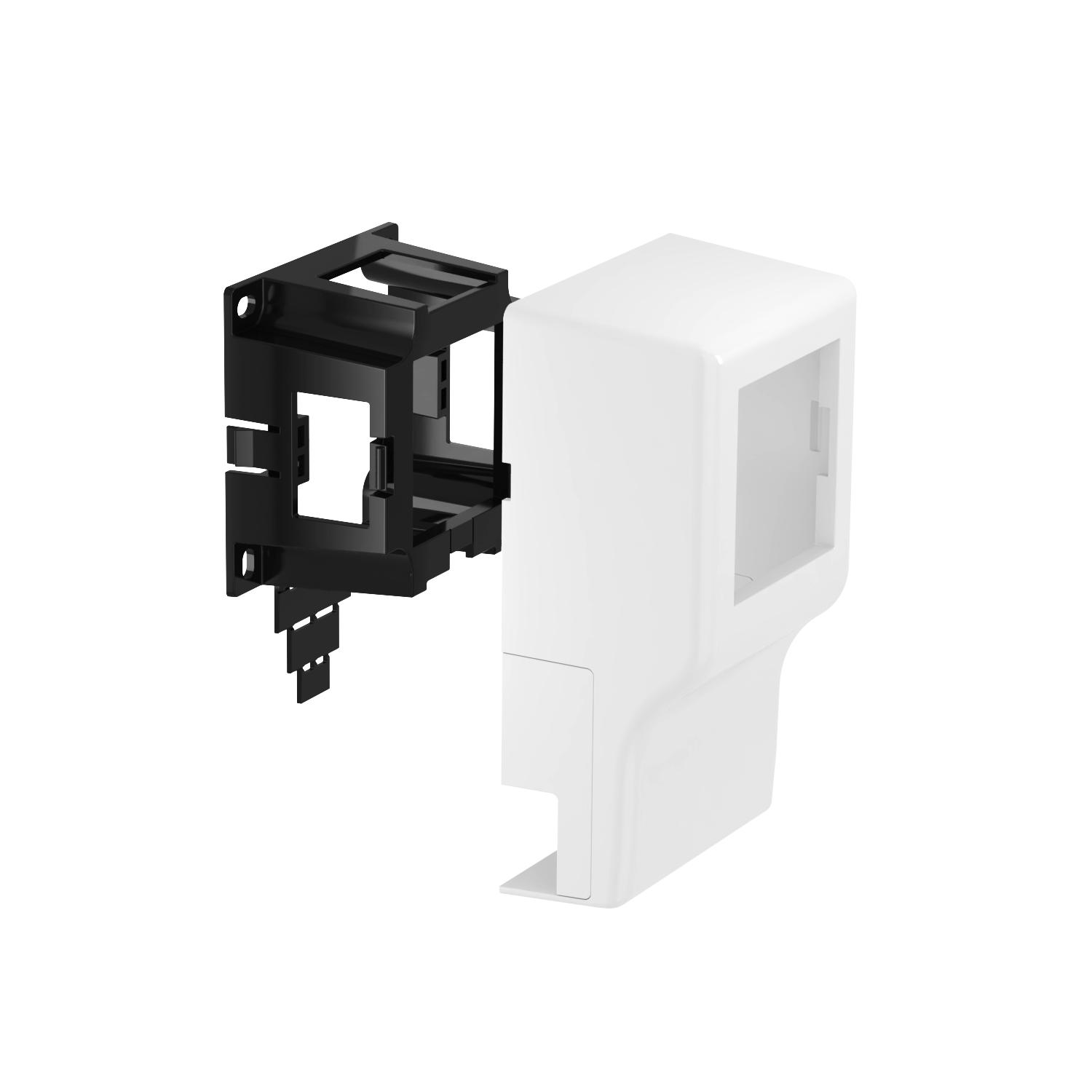

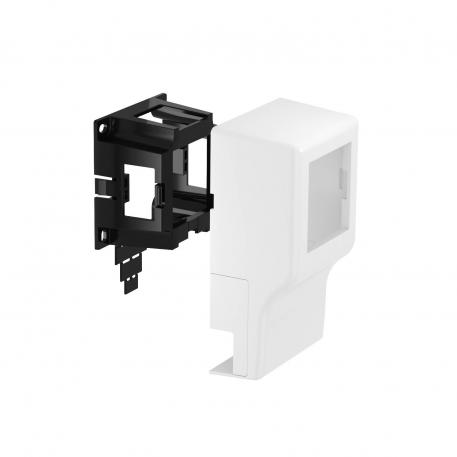

Device support, Modul 45
Item no. 6154893 | EAN 4012196617296
- Product description
-
Product description
Single device support for mounting on WDK wall and ceiling trunking of the types WDK 12022, WDK 15030, WDK 15040 and WDK 20050. The device is only
suitable for accepting Modul 45 devices.
- Technical data
-
Technical data

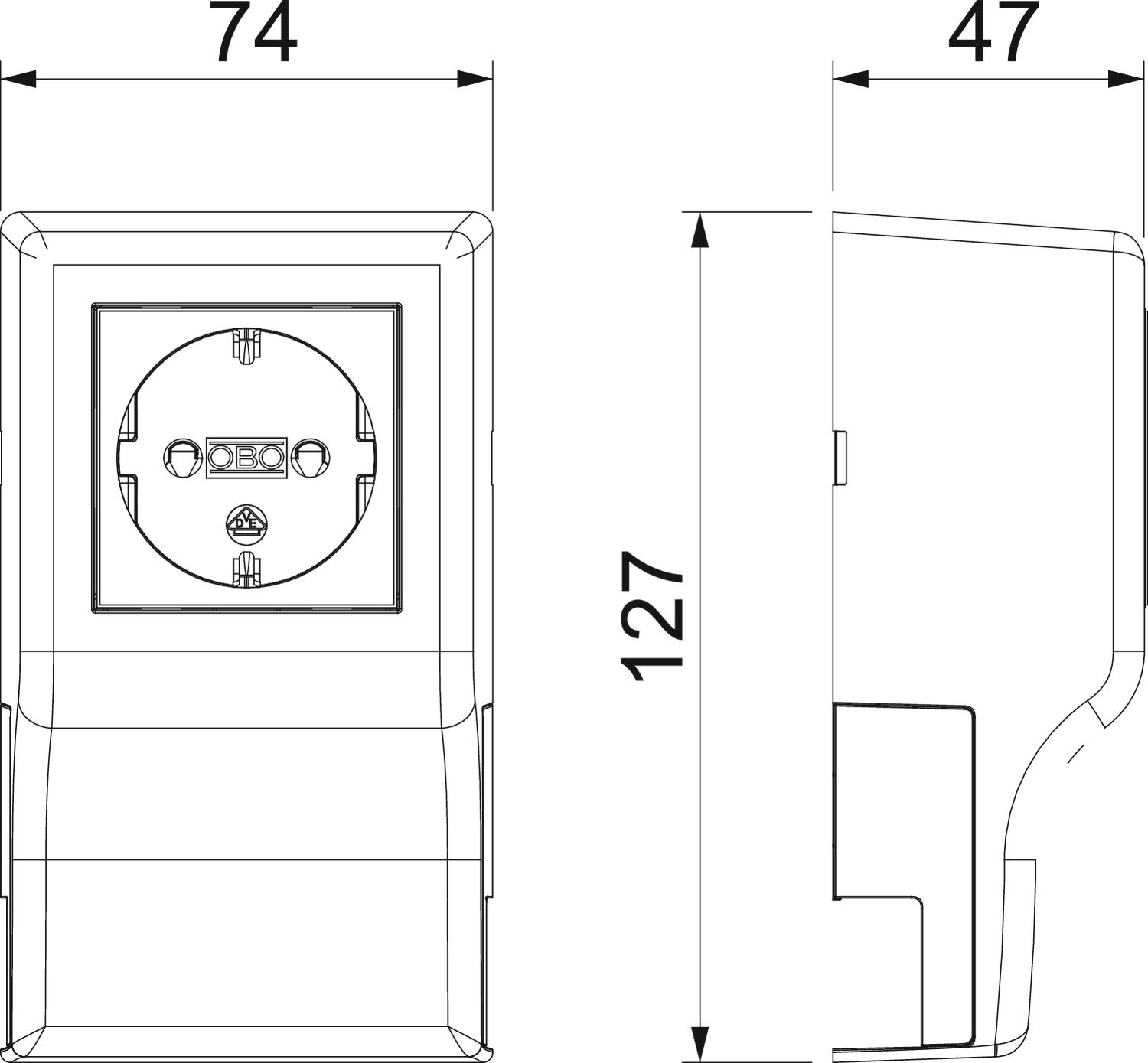

Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 74x127x47 Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 - All types
- Downloads
-
Data sheet WDK GT1M45RW / 6154893 , 0.12MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK GT1M45RW / 6154893 , 0.13MB , pdfREACH Declaration of conformity WDK GT1M45RW / 6154893 , 0.27MB , pdfRoHS Declaration of conformity WDK GT1M45RW / 6154893 , 0.28MB , pdfMounting instructions Mounting instructions, device support , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
