- Product description
-

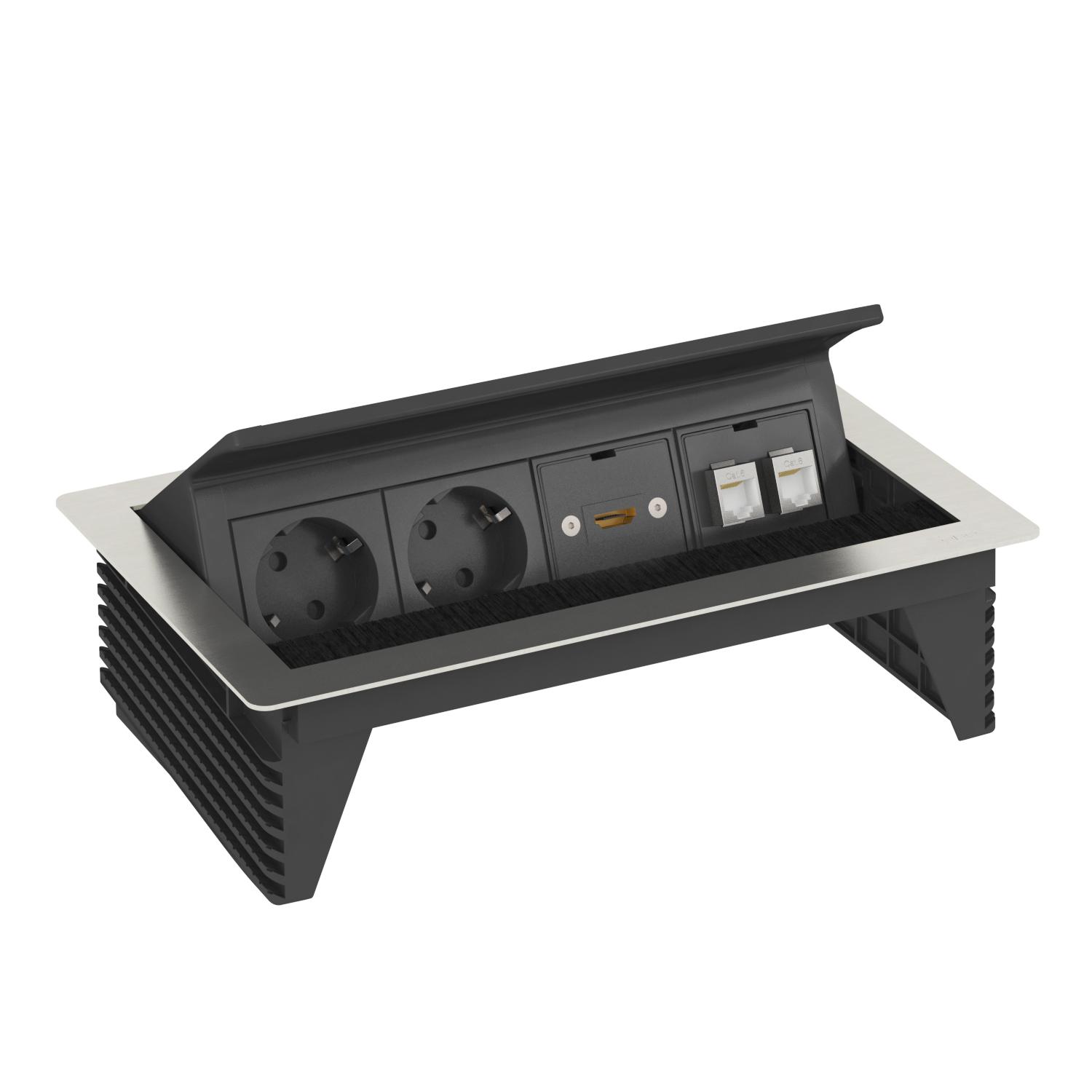

Product descriptionFoldable Deskbox with connection cable for fixed installation in a tabletop, housing made of brushed stainless steel with brush bar as cable outlet. Mounting is done via an installation opening 245 x 157 mm in the tabletop.
Equipped with:
- Two black protective contact sockets of 60° plug-in direction, including 3.0 m power cable with angular connector CEE 7/7.
- One HDMI 1.3 socket, including 3.0 m connection cable with plug.
- Two data technology couplings RJ45 on RJ45, 1:1, Cat. 6 shielded.
Note: Can be used in tabletops of up to 50 mm thickness.
The ready-for-connection type DBK Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data

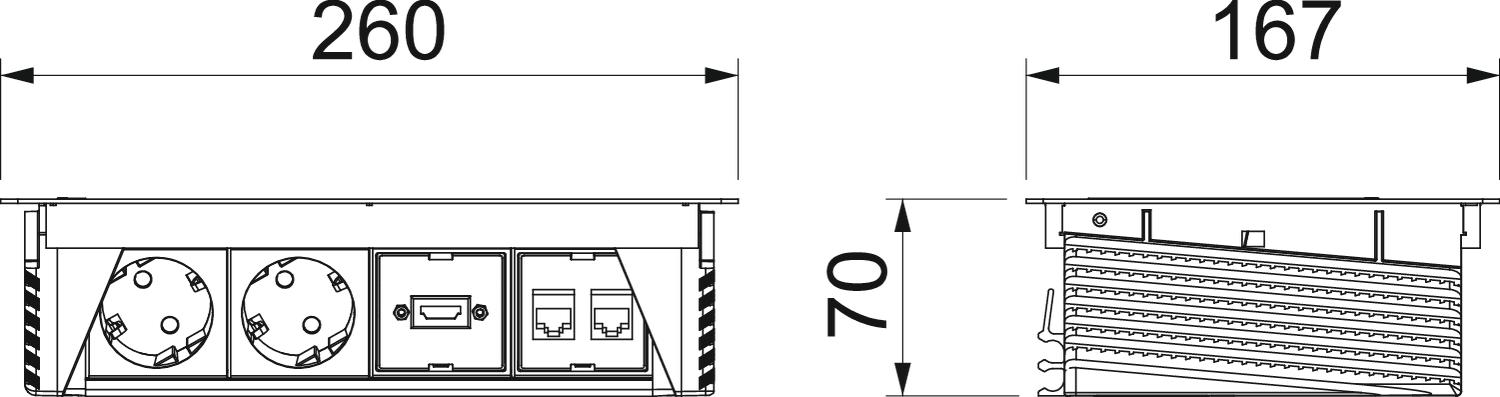

Dimension 260x167x68 Extendable no Foldable yes Installation depth 68 mm Length 260 mm Length of the supply cable 3 m Material Stainless steel Number of CAT 6 connections 2 Number of HDMI connections 1 Number of SCHUKO sockets 2 Surge protection no Width 167 mm - All types
- Downloads
-
Data sheet DBK2-M4H D2S2K / 6116810 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Deskbox DBK2 , 5.74MB , pdf
