- Product description
-

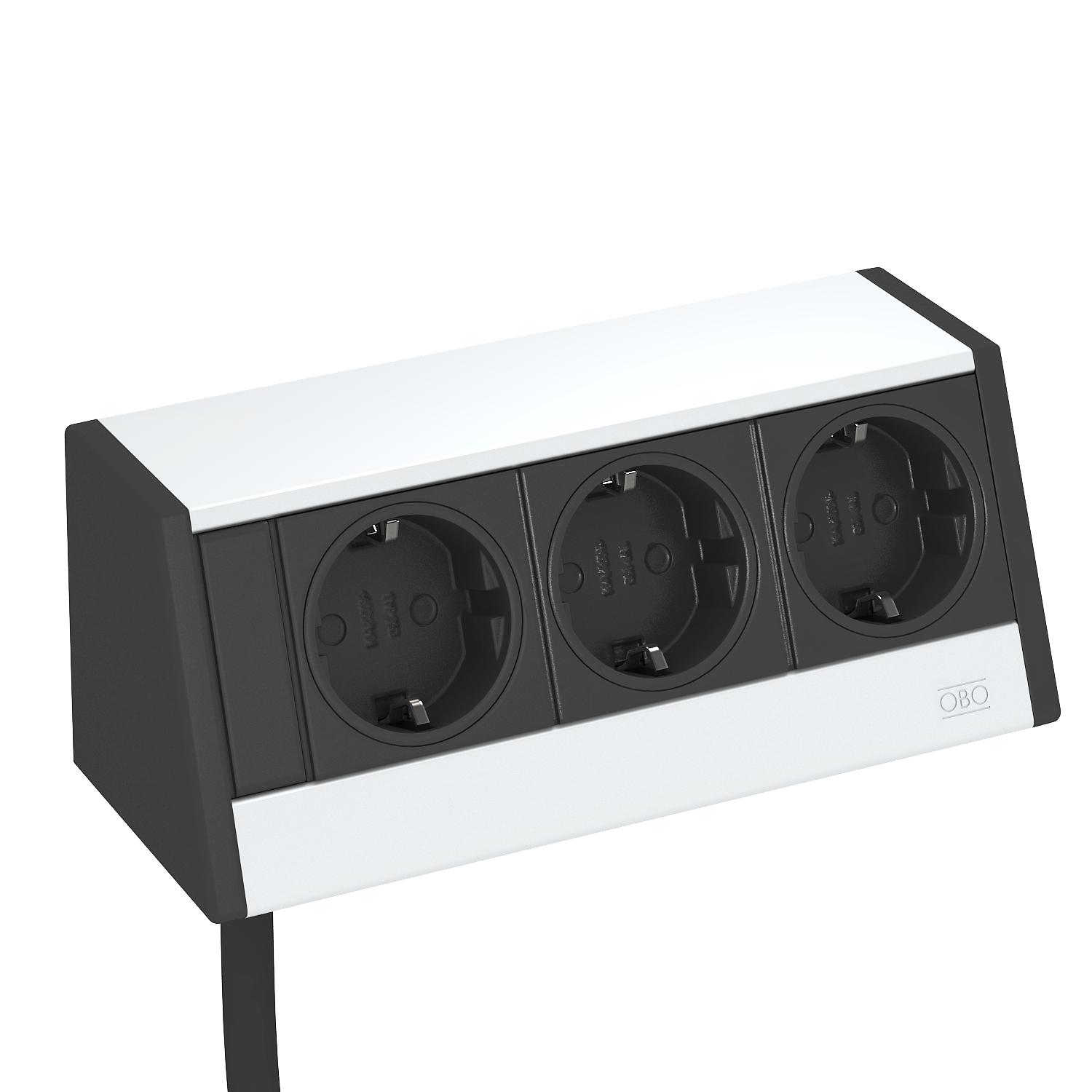

Product descriptionDeskbox with connection cable, cable outlet at the bottom of the profile, without fastening material, combinable with the fastening solutions listed in the accessories.
Equipment:
- Three black protection contact sockets in 0° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data
Colour aluminium Extendable no Foldable no Height 70 mm Length 180 mm Length of the supply cable 3 m Material Aluminium Number of SCHUKO sockets 3 Surge protection no Version for Housing, silver anodised Width 73 mm - All types
- Downloads
-
Data sheet DB-0B3 D3S / 6116939 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Deskbox DB , 7.80MB , pdf
