- Product description
-

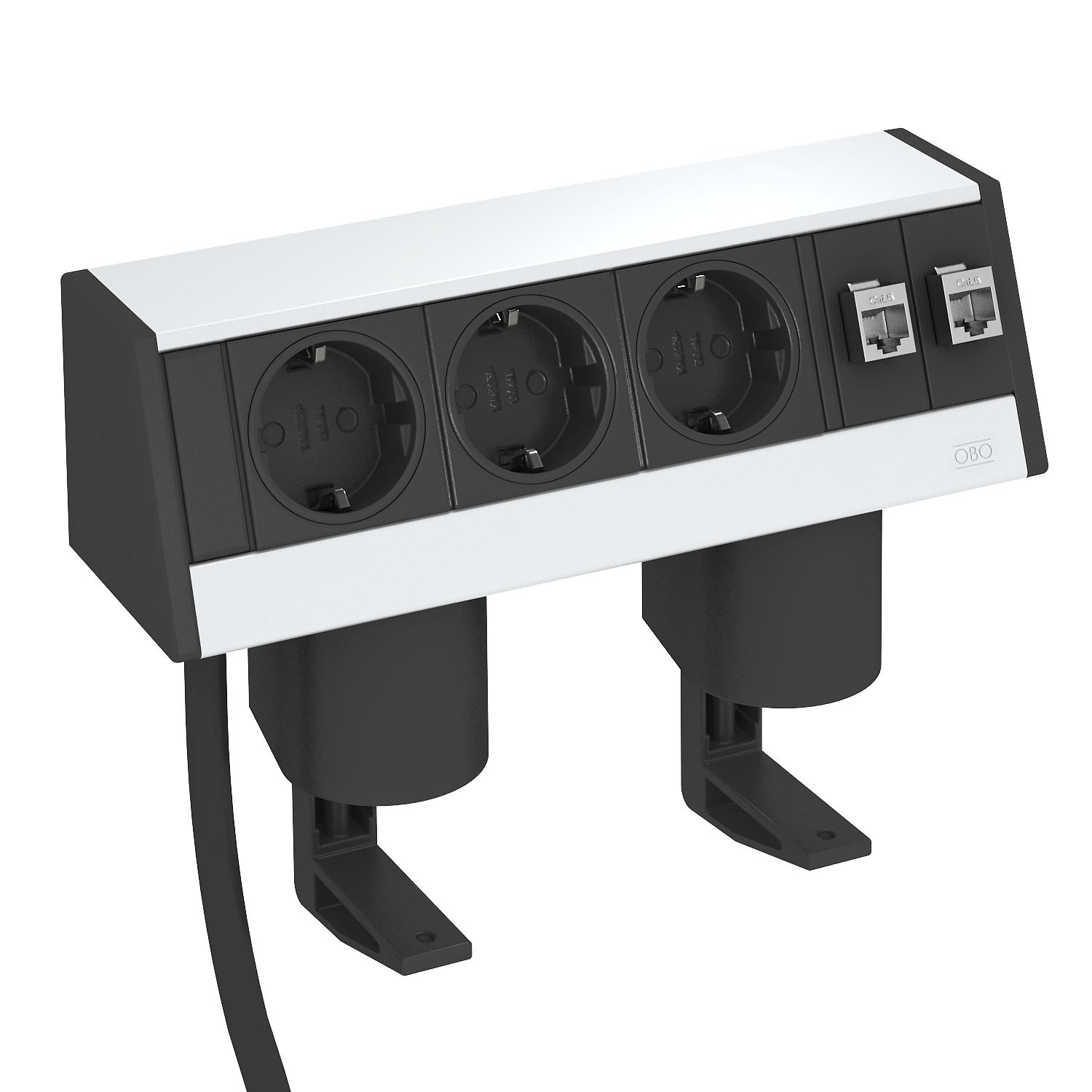

Product descriptionDeskbox with connection cable, cable outlet at the bottom of the profile with two fastening clamps for tabletop thicknesses of 8 to 40 mm.
Equipment:
- Three black protection contact sockets in 0° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7.
- Two data technology couplings RJ45 to RJ45, 1:1 switched, Cat. 6 shielded.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data

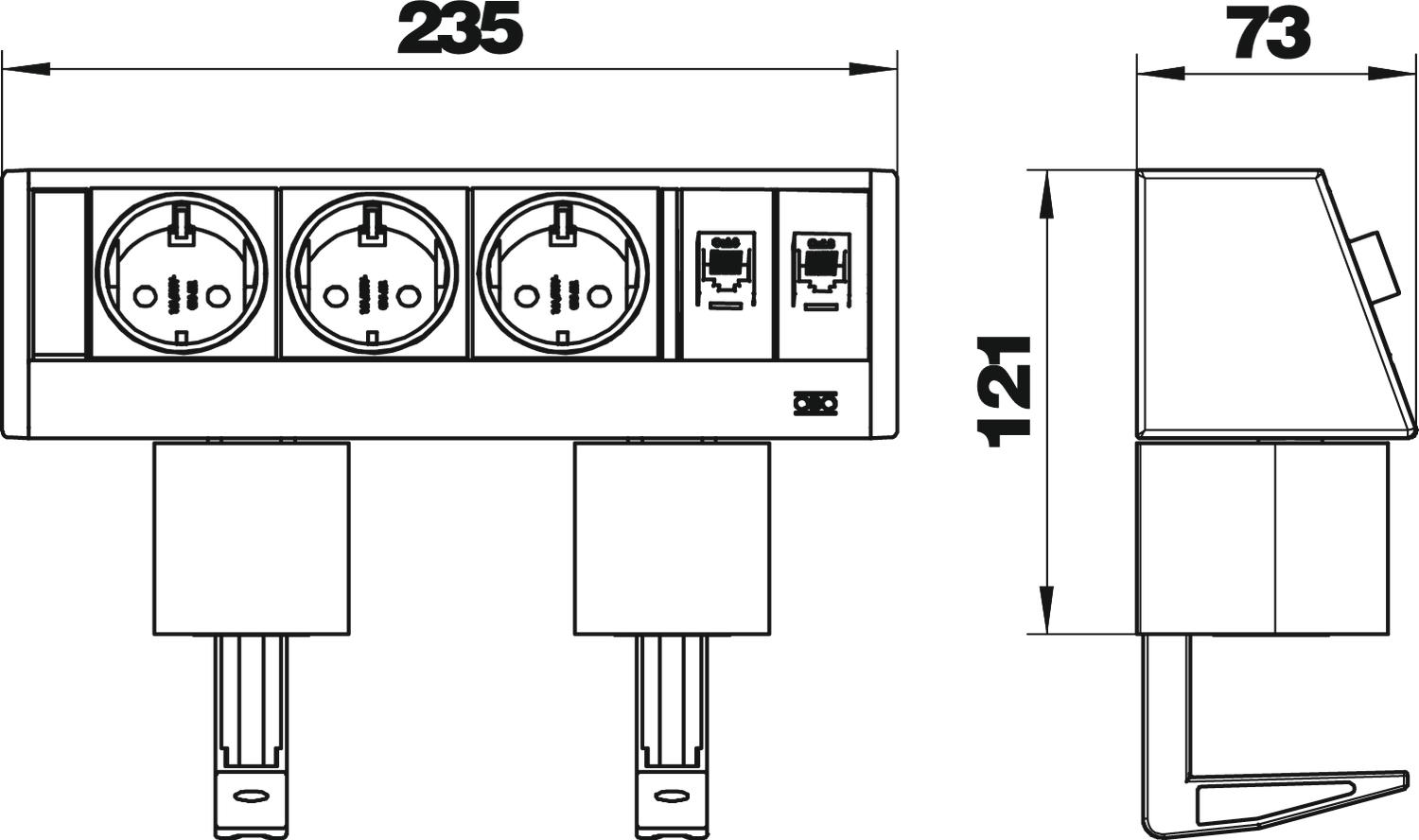

Colour aluminium Extendable no Foldable no Height 121 mm Length 235 mm Length of the supply cable 3 m Material Aluminium Number of CAT 6 connections 2 Number of SCHUKO sockets 3 Surge protection no Version for Housing, silver anodised Width 73 mm - All types
- Downloads
-
Data sheet DB-1B3 D3S2K / 6116942 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity DB-1B3 D3S2K / 6116942 , 0.11MB , pdfMounting instructions Deskbox DB , 7.80MB , pdf
