Product description

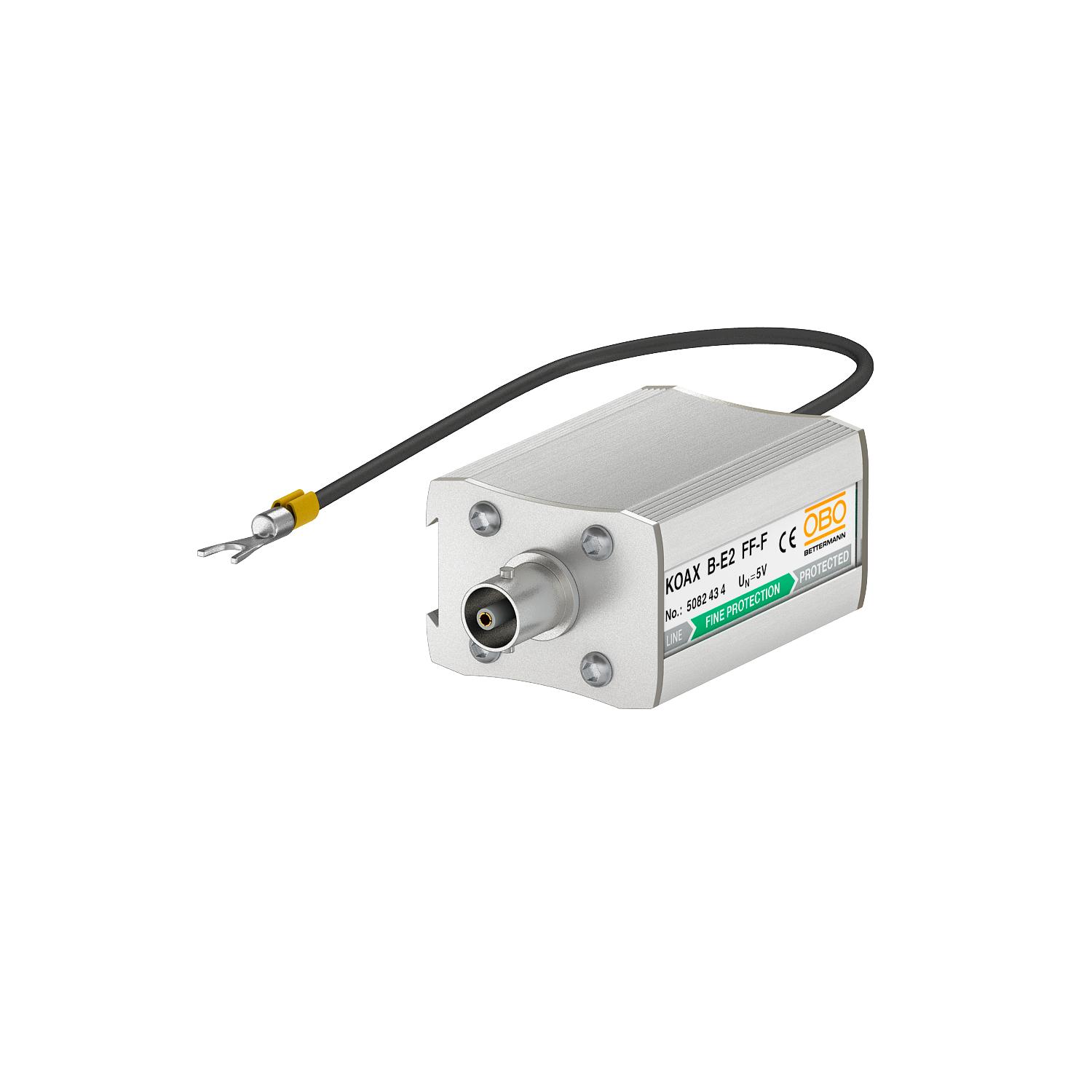

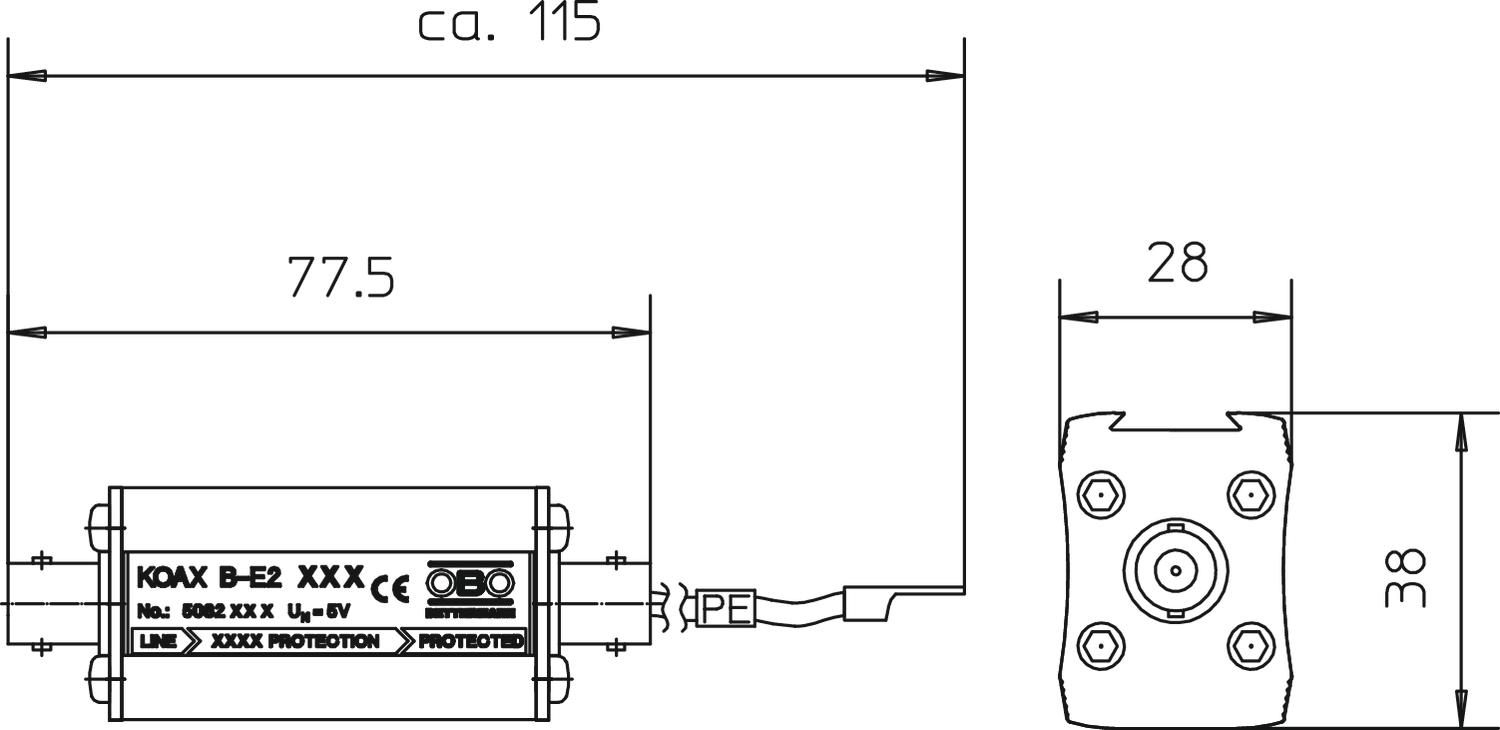

Data cable protection device for coaxial TV/camera systems
• In aluminium housing
• BNC connector socket/socket
• Simple mounting with adapter plug
• Two-stage protection circuit

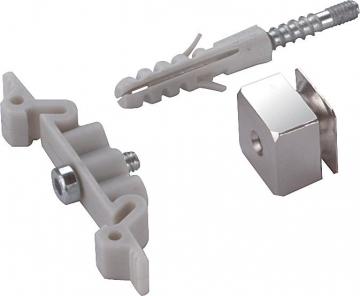

• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Protection of CCTV, video signals; cameras and/or TV systems
• Usable in CCTV and diverse TV systems
• Optimised transmission properties
• Can be locked onto hat profile rail
• Simple connection technology
- Technical data
-
Technical data
Cable type for surge protection devices Data cable COAX Capacity (wire-earth) <100 pF Capacity (wire-wire) <100 pF Cut-off frequency 160 MHz Dimension 6.2V Earthing via: Connection cable Explosion-tested version no Impulse durability wire-earth C2: 10 kV / 5 kA (8/20µs) Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20µs) Insertion loss ≤1,7 dB Insulation resistance >1 GΩ Kategorie Type 2+3 / C2+C1 Lightning protection zone LPZ 1→3 Maximum continuous voltage AC 4,2 Maximum continuous voltage DC 6 Nominal load current AC 0,7 Nominal load current DC 1 A Number of poles 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Plug-in system BNC Protection level wire-earth <600 V Protection level wire-wire <40 V Protection rating IP40 Return loss ≥14 Screening Direct Shielding connection available yes SPD to IEC 61643-21 Class II+III / C2+C1 Telecommunications contact no Testing standard IEC 61643-21 Total discharge current (8/20) 10 kA Version for Fine protection Wave resistance 75 Ω - All types
- Downloads
-
Data sheet KOAX B-E2 FF-F / 5082434 , 0.20MB , pdfDeclaration of conformity KOAX B-E2 FF-F / 5082434 , 0.11MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, CoaxB-E2/... , 0.10MB , pdf
