Cutting ring Pg 9 | M16
morepic-1 morepic-2

Cutting ring

Item no. 2029103 | EAN 4012195167051

Product description
Product description

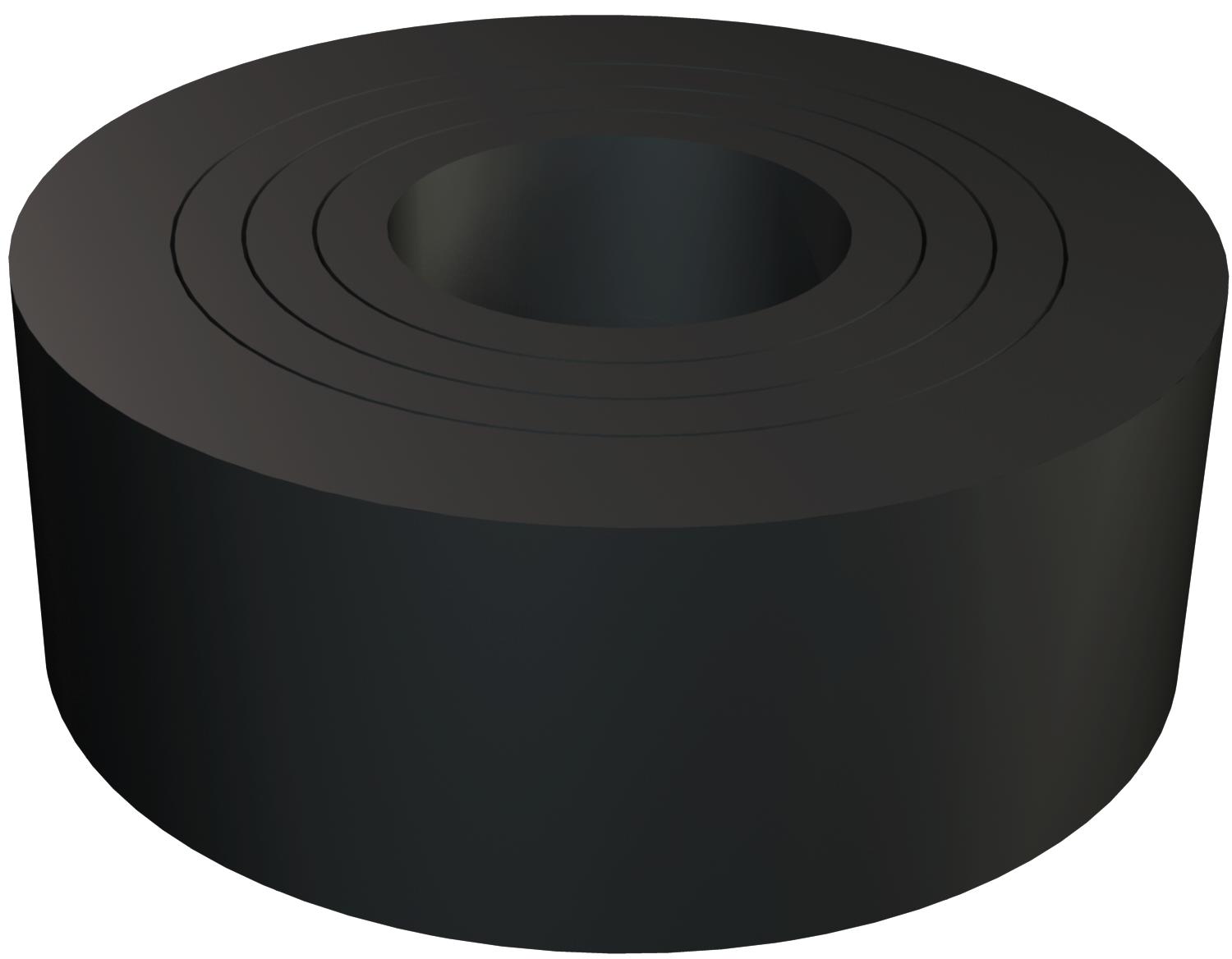

Rubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Black

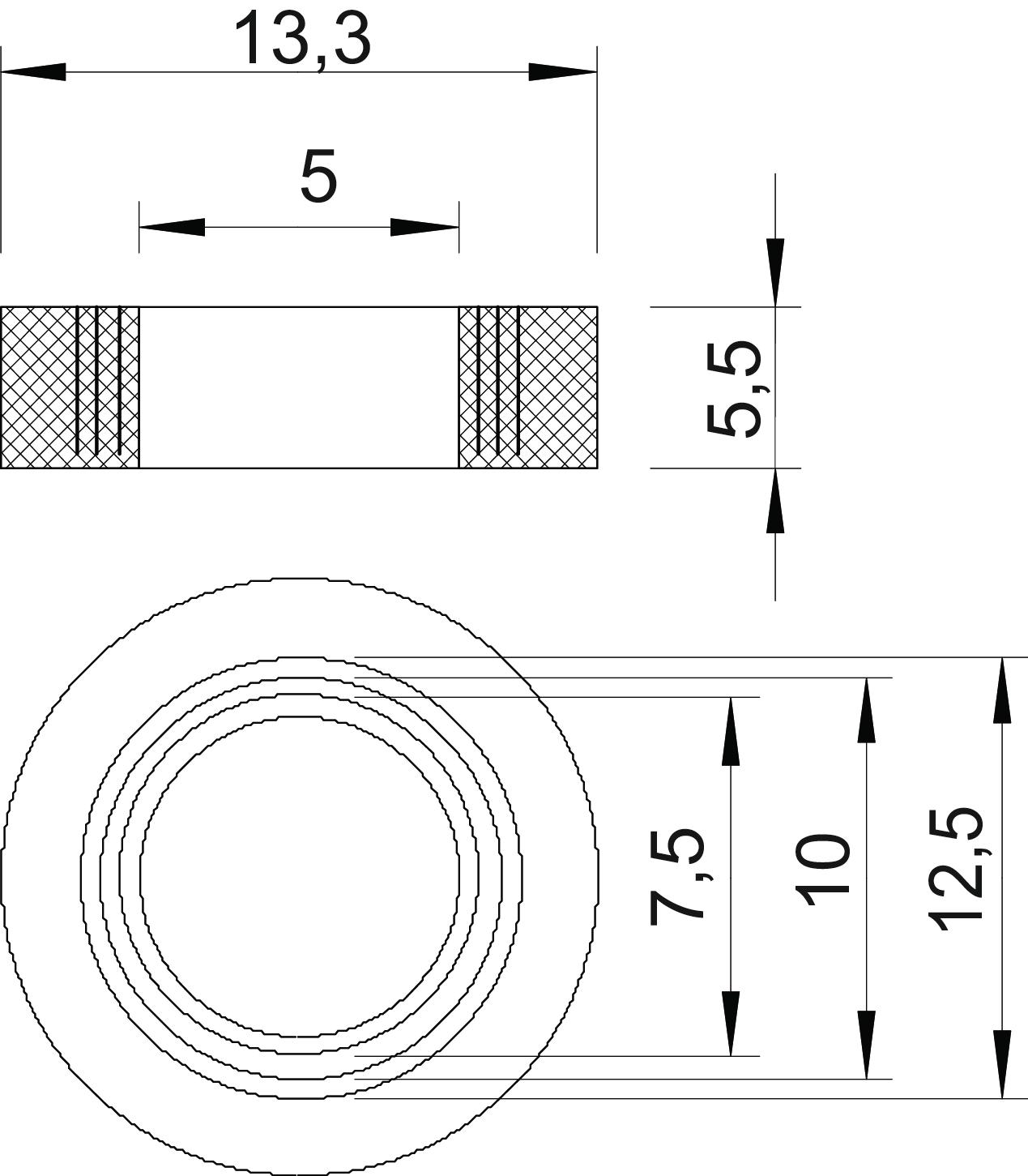

Dimension PG9
Dimension D1 5 mm
Dimension D2 13,3 mm
Dimension D3 7,5 mm
Dimension D4 10 mm
Dimension D5 12,5 mm
Dimension H 5,5 mm
Material Rubber mixture
Sealing area D, max. 10 mm
Sealing area D, min. 5 mm
Size Pg 9
Size M16
All types

All types

Types Size Size Item no. Quantity SSU
107 B PG9 Pg 9 M16 2029103
100 piece
107 B PG11 Pg 11 - 2029111
100 piece
107 B PG13.5 Pg 13,5 M20 2029138
100 piece
107 B PG16 Pg 16 M25 2029162
100 piece
107 B PG21 Pg 21 - 2029219
100 piece
107 B PG29 Pg 29 M32 2029294
100 piece
107 B PG36 Pg 36 M40 2029367
50 piece
107 B PG42 Pg 42 M50 2029421
50 piece
107 B PG48 Pg 48 M63 2029480
50 piece
