- Product description
-
Product description

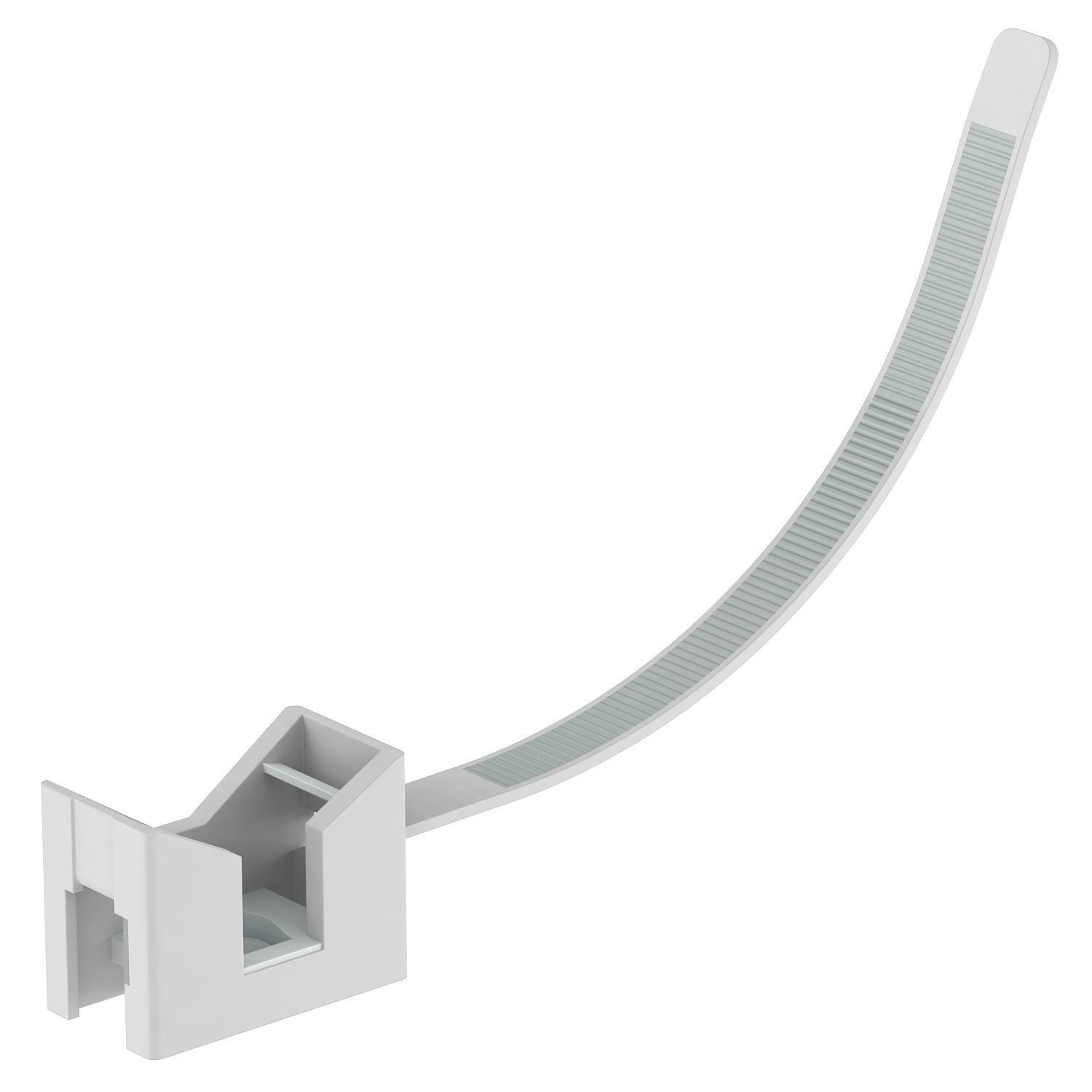

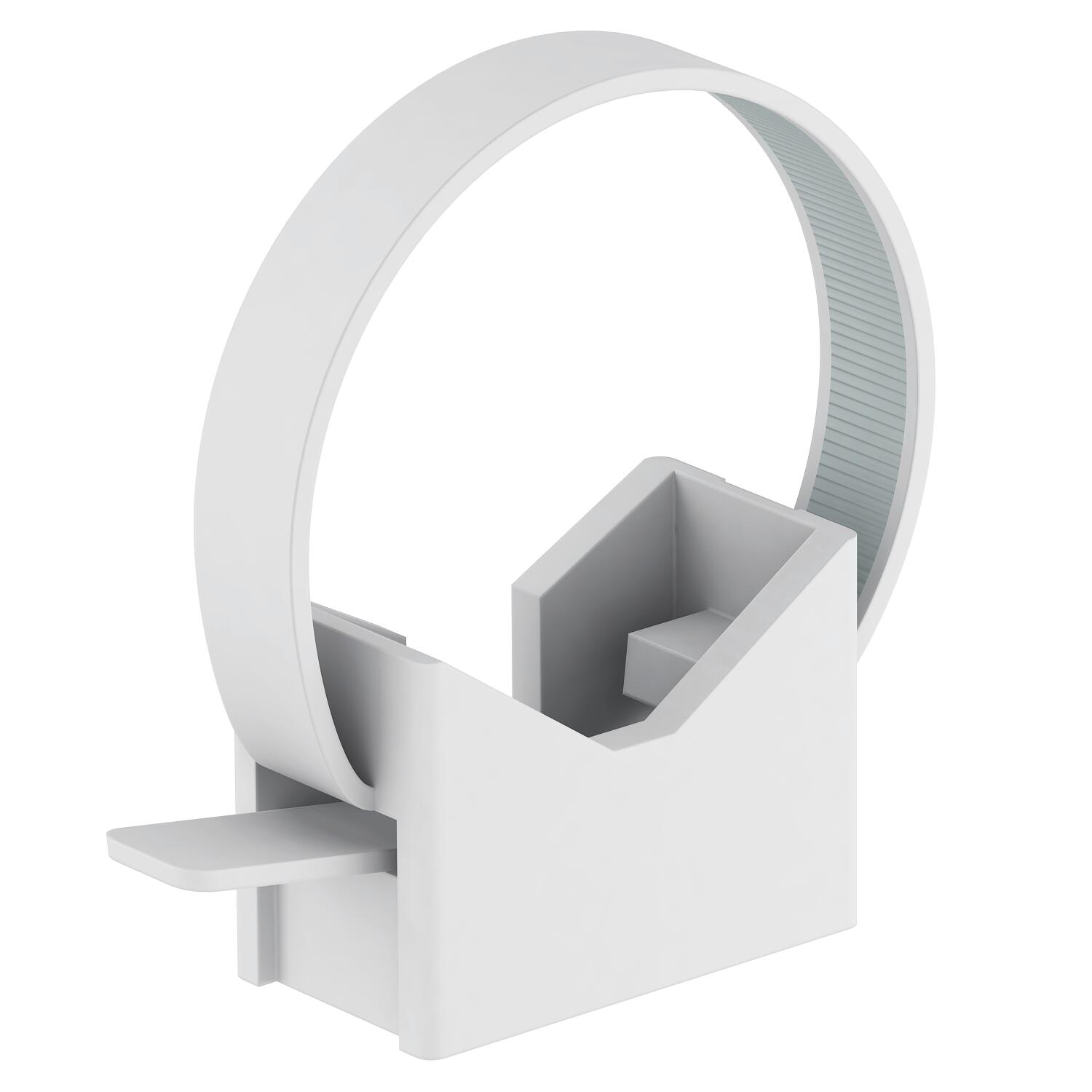

Cable tie clip for easy and quick mounting of various cables, cable bundles and pipe dimensions.
Cable tie clip for simple and quick mounting of all kinds of cables, cable bundles and pipe dimensions.
- Technical data
-
Technical data

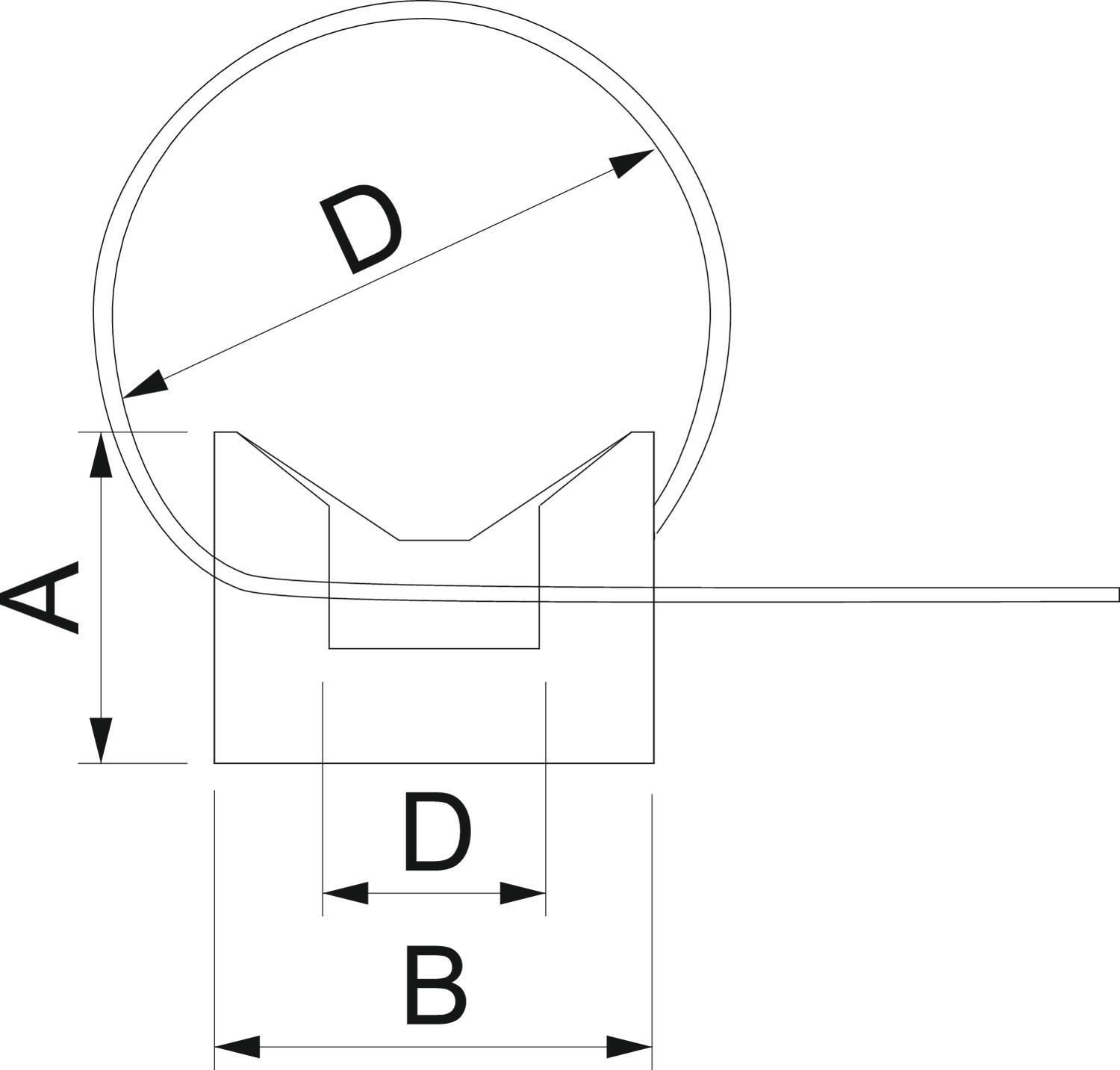

Colour Light grey; RAL 7035 Dimension 7,5x180mm Dimension B 7,5 mm Halogen-free yes Height 1,5 mm Labelling area Without Length 180 mm Material Polyamide Max. Bundle diameter 32 mm minimum breaking load 0,36 kN Mounting temperature, max. 35 °C Mounting temperature_min. -15 °C Permitted temperature range, max. 85 °C Permitted temperature range, min. -40 °C Reflective no Strip closure Plastic tongue/tab Tensile strength 360 N Transparent no Width 7,5 mm - All types
- Downloads
-
Data sheet CTC 7,5x180 LGR / 2332790 , 0.17MB , pdf
