Cross-over 60 FT 300

morepic-1

morepic-2

Cross-over 60 FT

Item no. 7113315 | EAN 4012196991822

Item no. / Types	7113315 / RK 630 FT

Width	300 mm

Product description

Product description

Horizontal cross-over for all cable tray types of 60 mm side height.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Connector version	Supplied connectors
Dimension	60x300
Dimension B	300 mm
Dimension R	50 mm
Height	60 mm
Height	2 in
Maintain electrical functions	no

Material	Steel
Material thickness, floor plate	1 mm
Rail thickness	1,25 mm
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Wide-span version	no
Width	12 in
Width	300 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RK 630 FT	300 mm	7113315	piece	1 piece

Downloads

Data sheet RK 630 FT / 7113315 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity RK 630 FT / 7113315 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

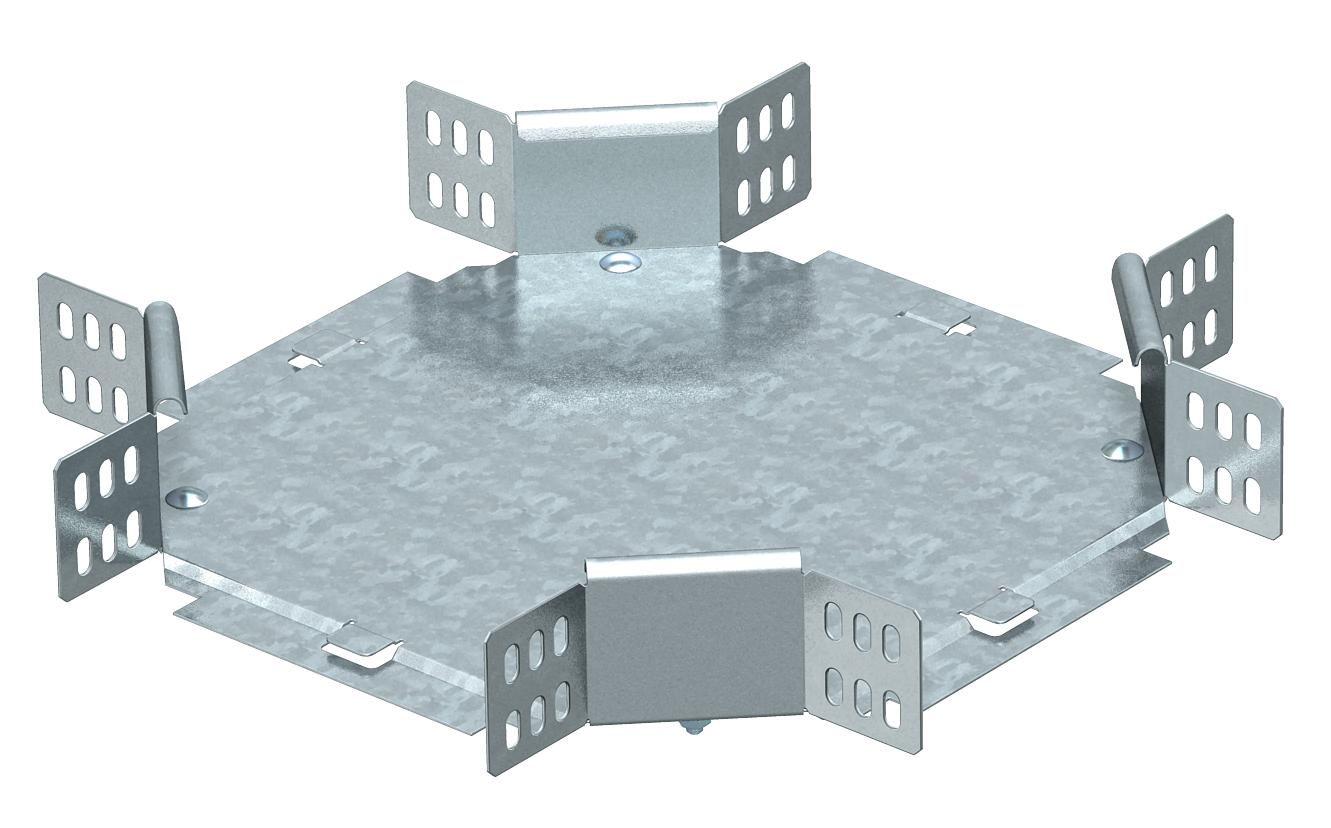

Product graphic RK 630 FT / 7113315, 85.20 kB, jpg

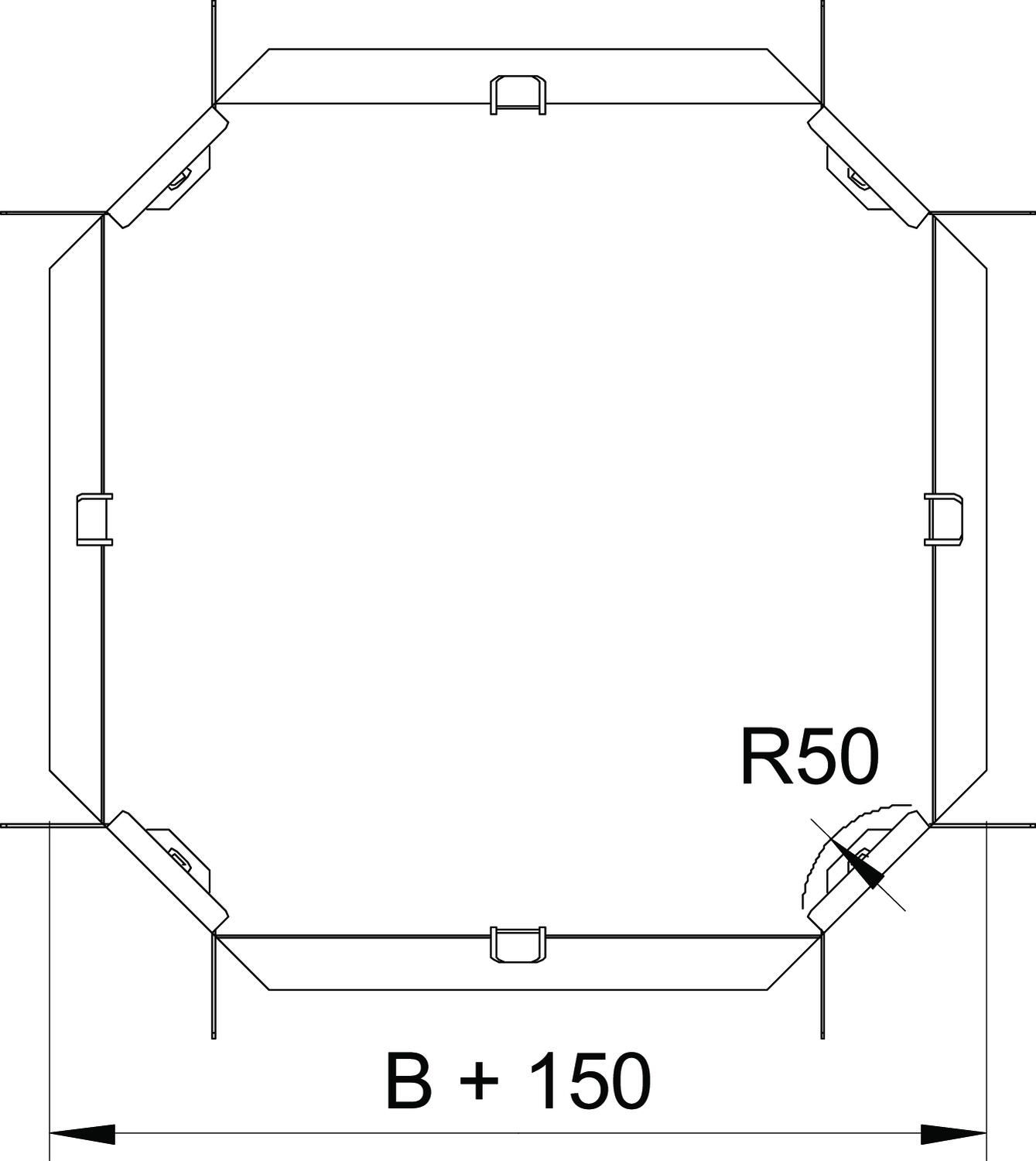

Scale drawing RK 630 FT / 7113315, 66.85 kB, jpg

RK 630 FT / 7113315

7113315_KSTP1.stp, 234.42 kB
