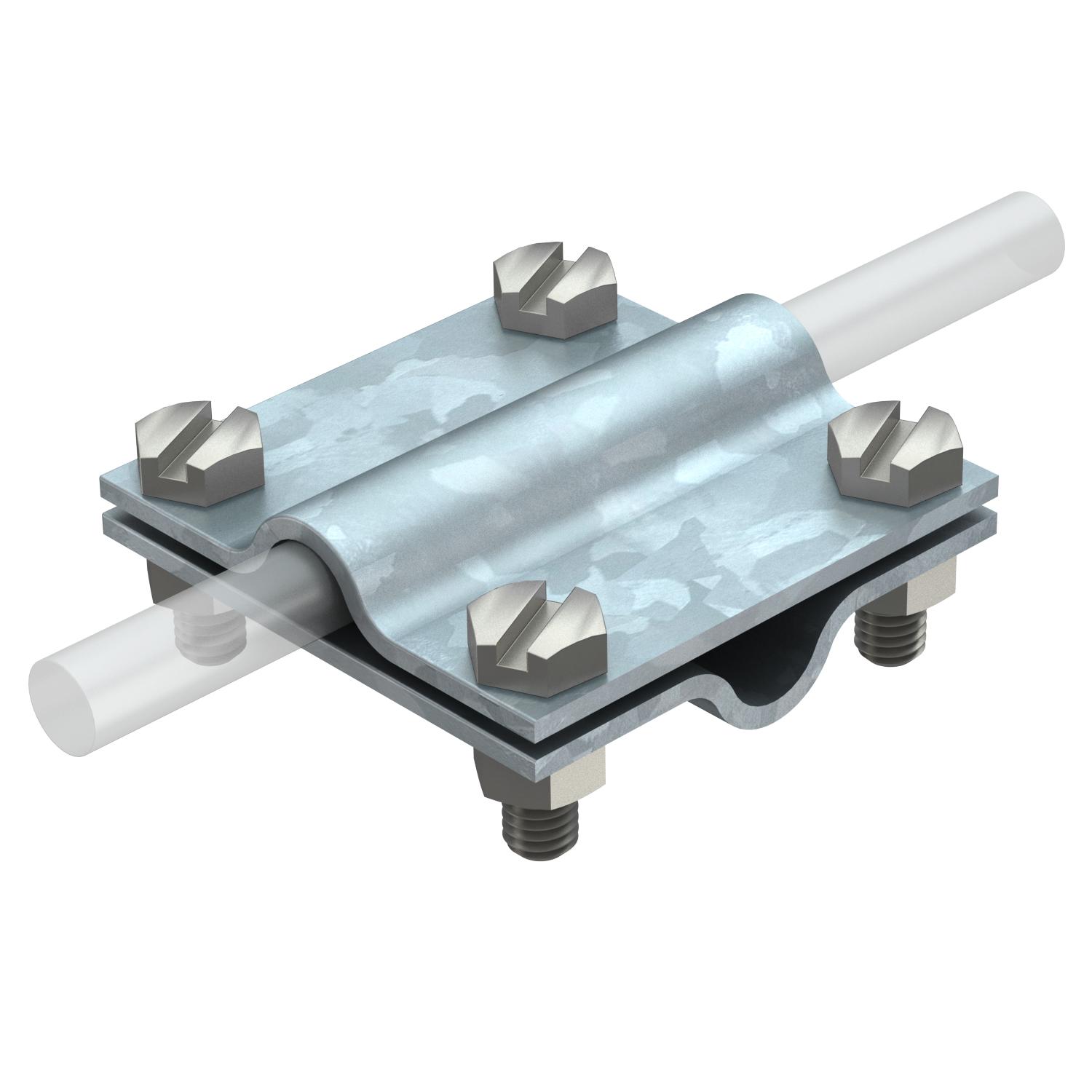

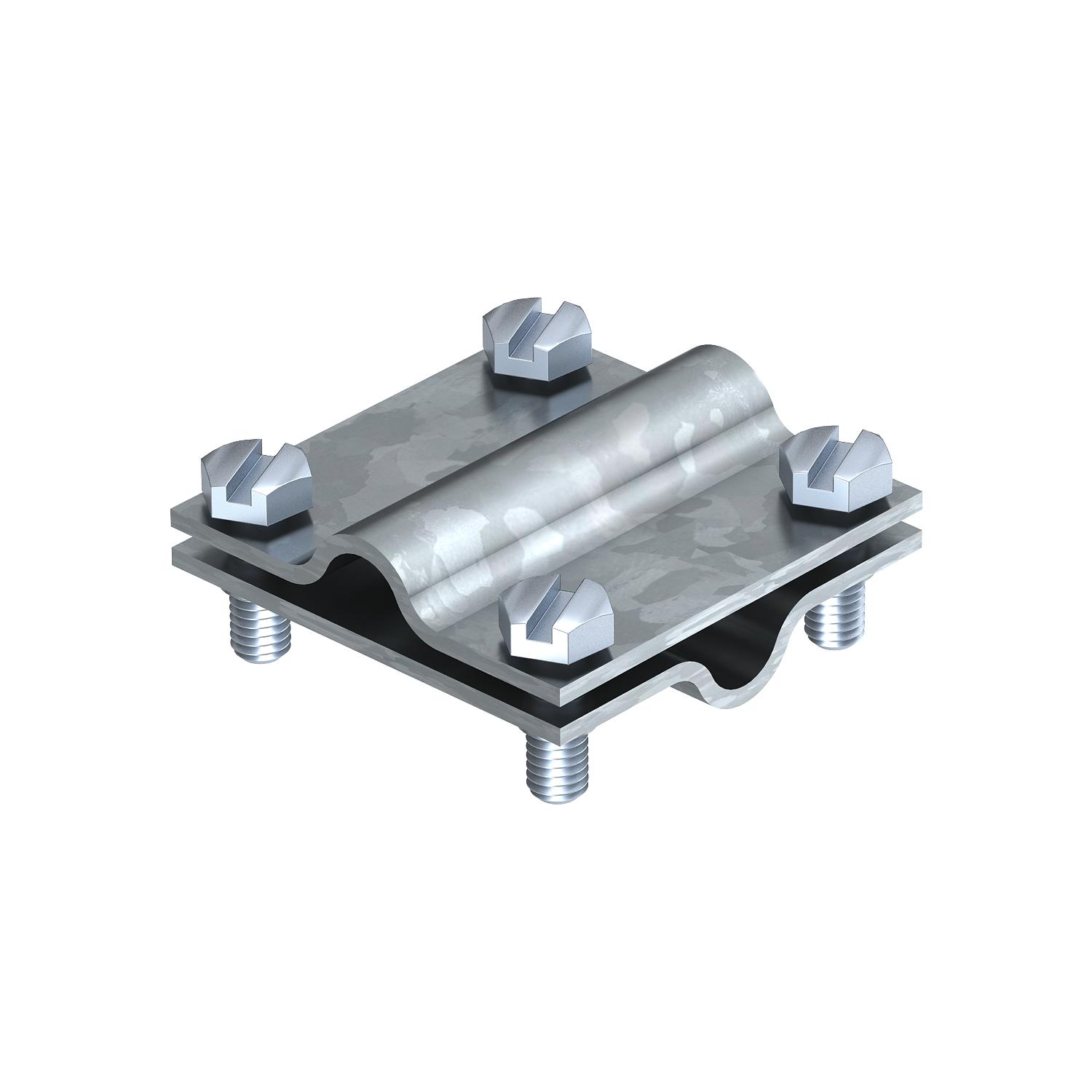

Cross-connector Rd 8−10 mm
Item no. 5312035 | EAN 4012195417972
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• For round conductors, fit: Rd 8-10 x Rd 8-10
• With 4 hexagonal bolts M6 x 16 (VA)
-
- Technical data
-
Technical data

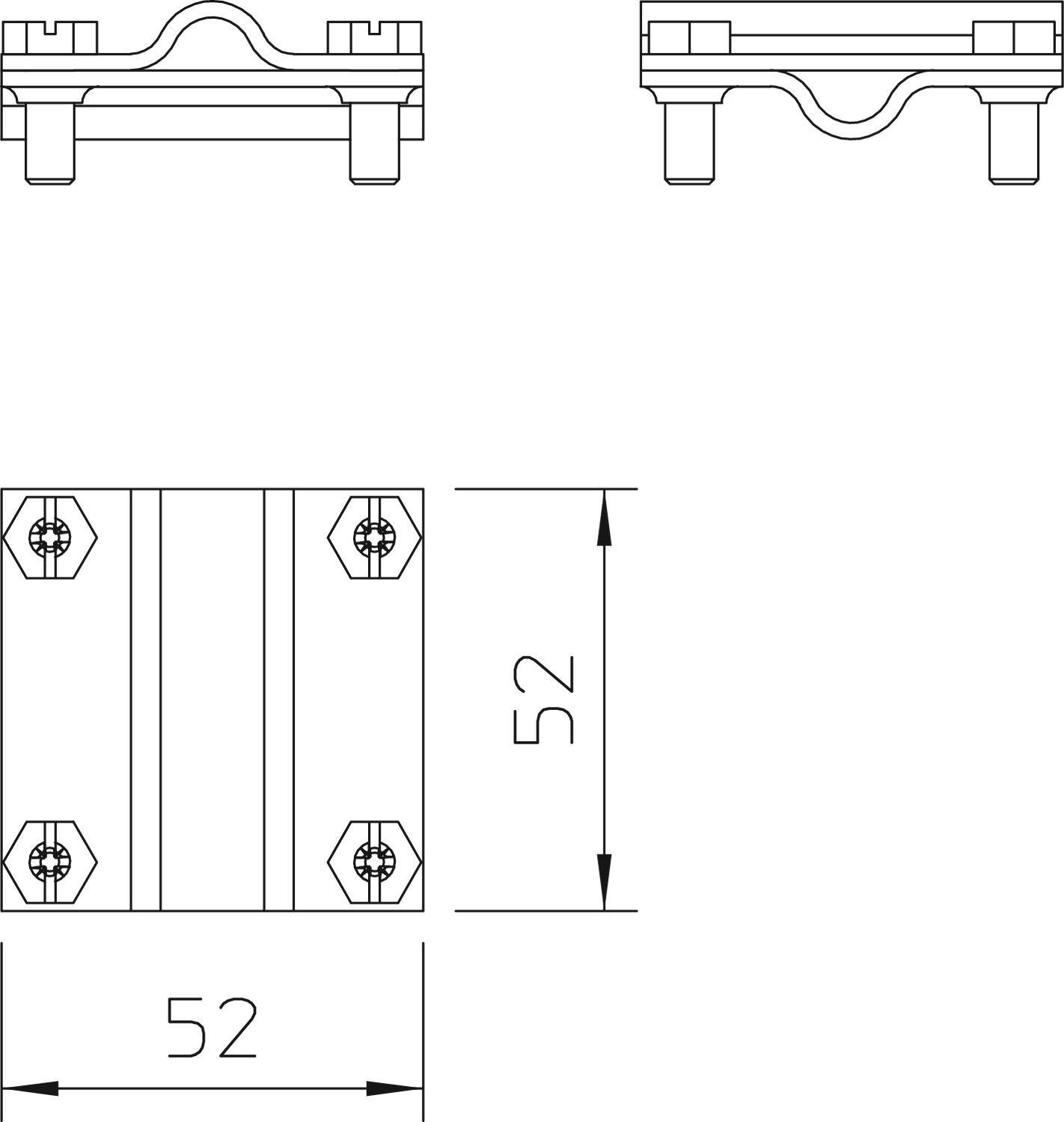

Dimension 8-10mm Dimension A 52 mm Dimension B 52 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
