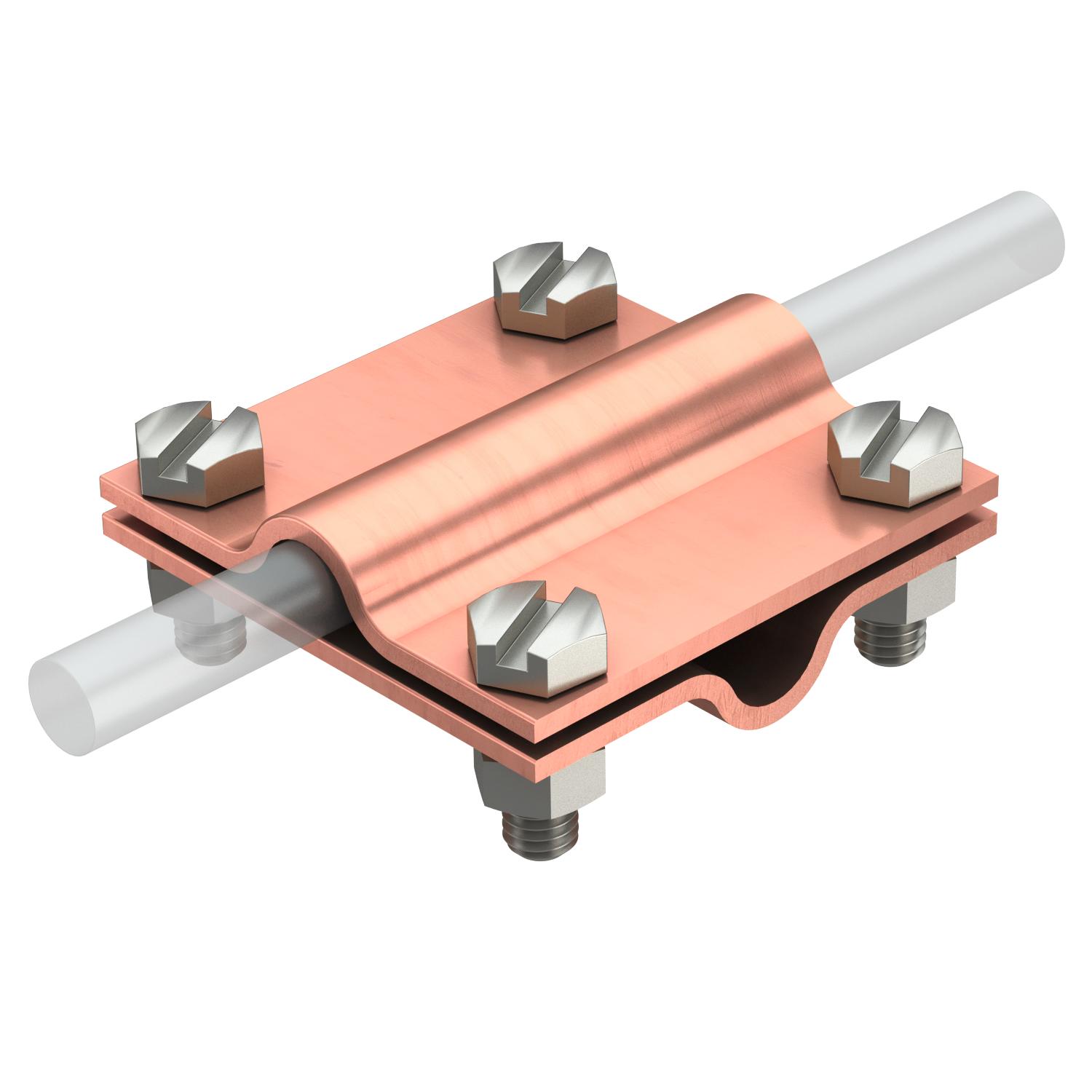

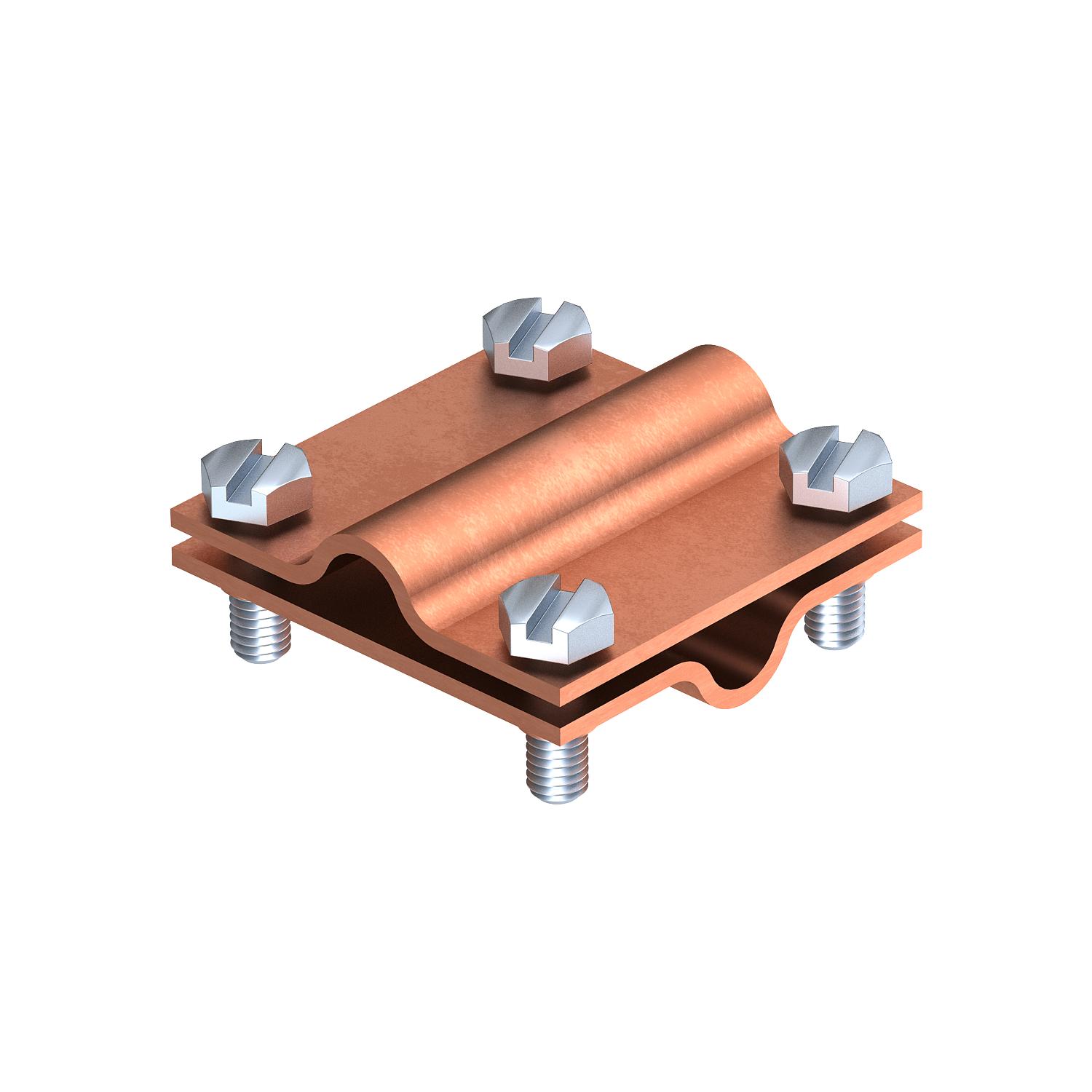

Cross-connector Rd 8−10 mm Cu
Item no. 5312132 | EAN 4012195418030
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10
• With 4 hexagonal bolts M6 x 16, made of rust-proof steel (VA)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Copper Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

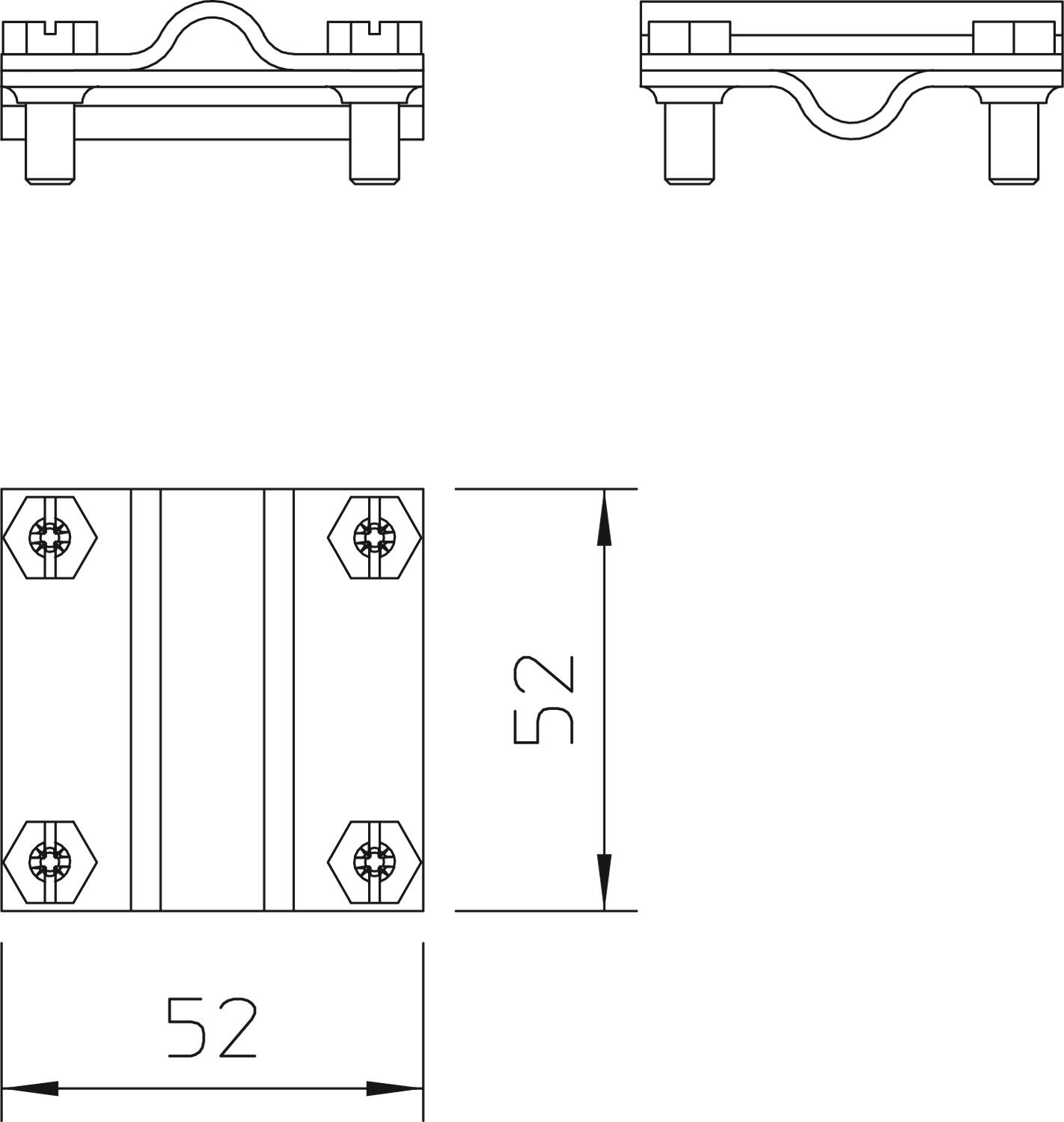

Dimension A 52 mm Dimension B 52 mm - All types
