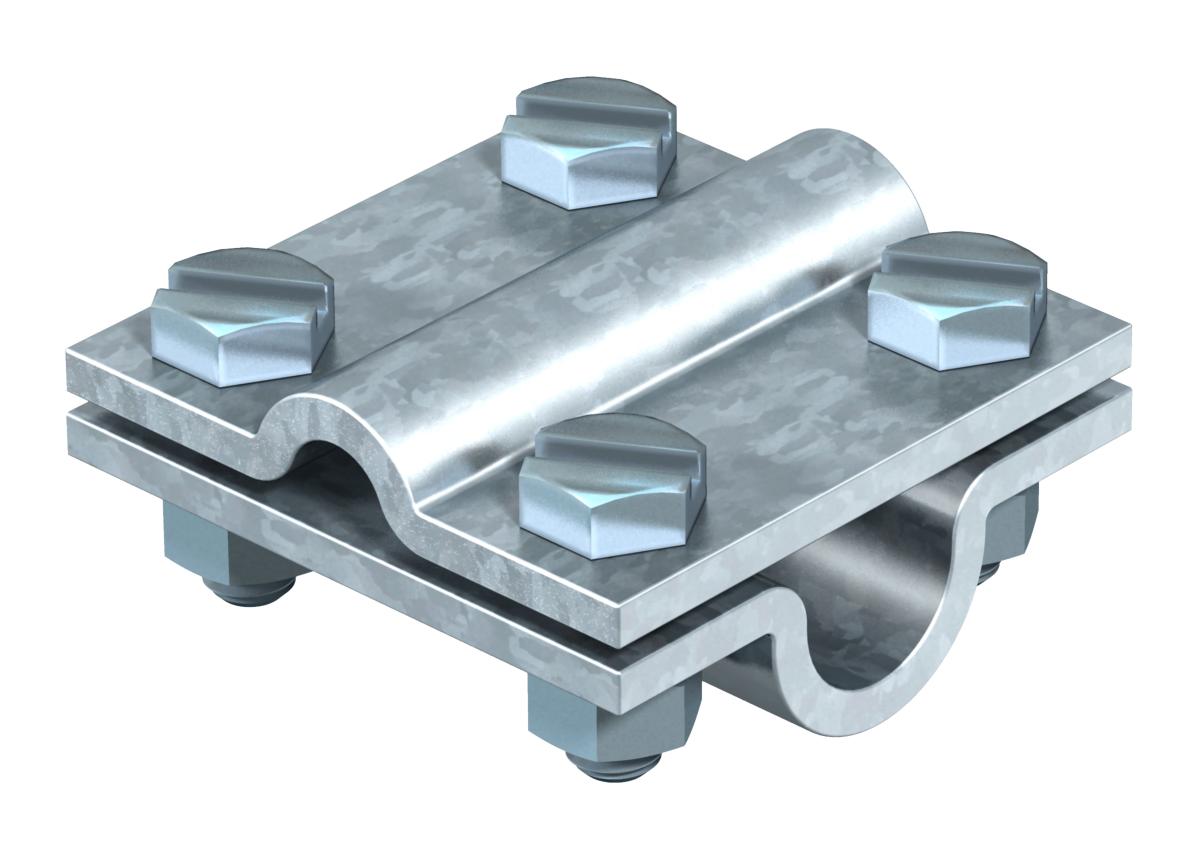

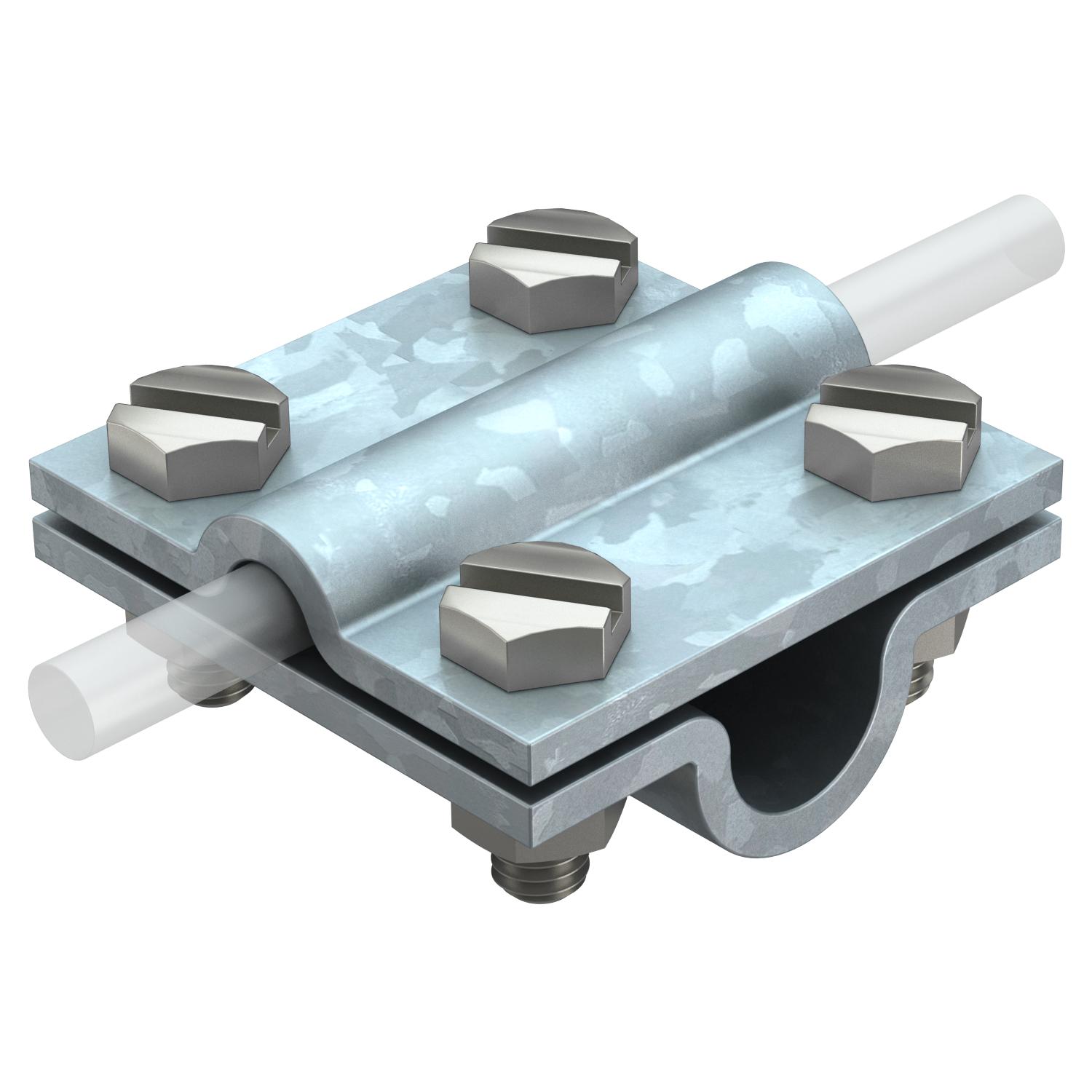

Cross-connector for Rd 8−10 x Rd 16 Rd 8-10 x 16 | Hot-dip galvanised

Cross-connector for Rd 8−10 x Rd 16

Item no. 5312809 | EAN 4012195418573

Item no. / Types	5312809 / 253 10X16

Fit	Rd 8-10 x 16 mm

Surface	Hot-dip galvanised

Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Fit: Rd 8-10 x Rd 16 / FL 30

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)

Technical data

Technical data

Dimension	8-10mm

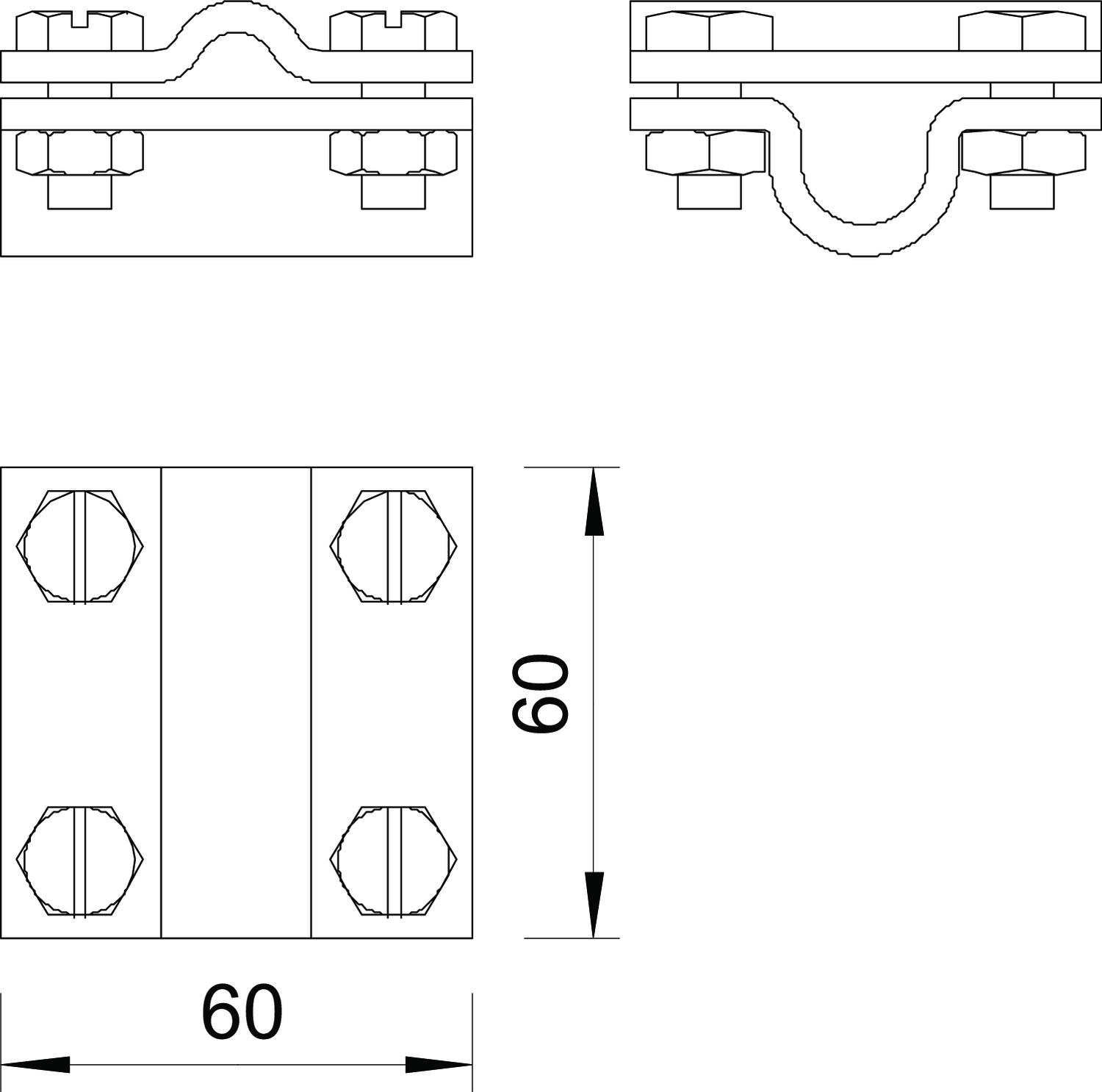

Dimension A	60 mm
Dimension B	60 mm
Fit	Rd 8-10 x 16 mm
Intermediate plate	no
Lightning current carrying capacity	H/100 kA

Material	Steel
Suitable for connection	Round conductor Rd 8-10 / Rd 16
Surface	Hot-dip galvanised
Type of connector	Cross-connectors
Type of fastening screw	Hexagonal bolt

All types

All types

Types	Fit	Surface	Item no.	Quantity	SSU
253 10X16	Rd 8-10 x 16 mm	Hot-dip galvanised	5312809	piece	25 piece

Downloads

Data sheet 253 10X16 / 5312809 , 0.21MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 253 10X16 / 5312809 , 0.06MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Download

Mounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
