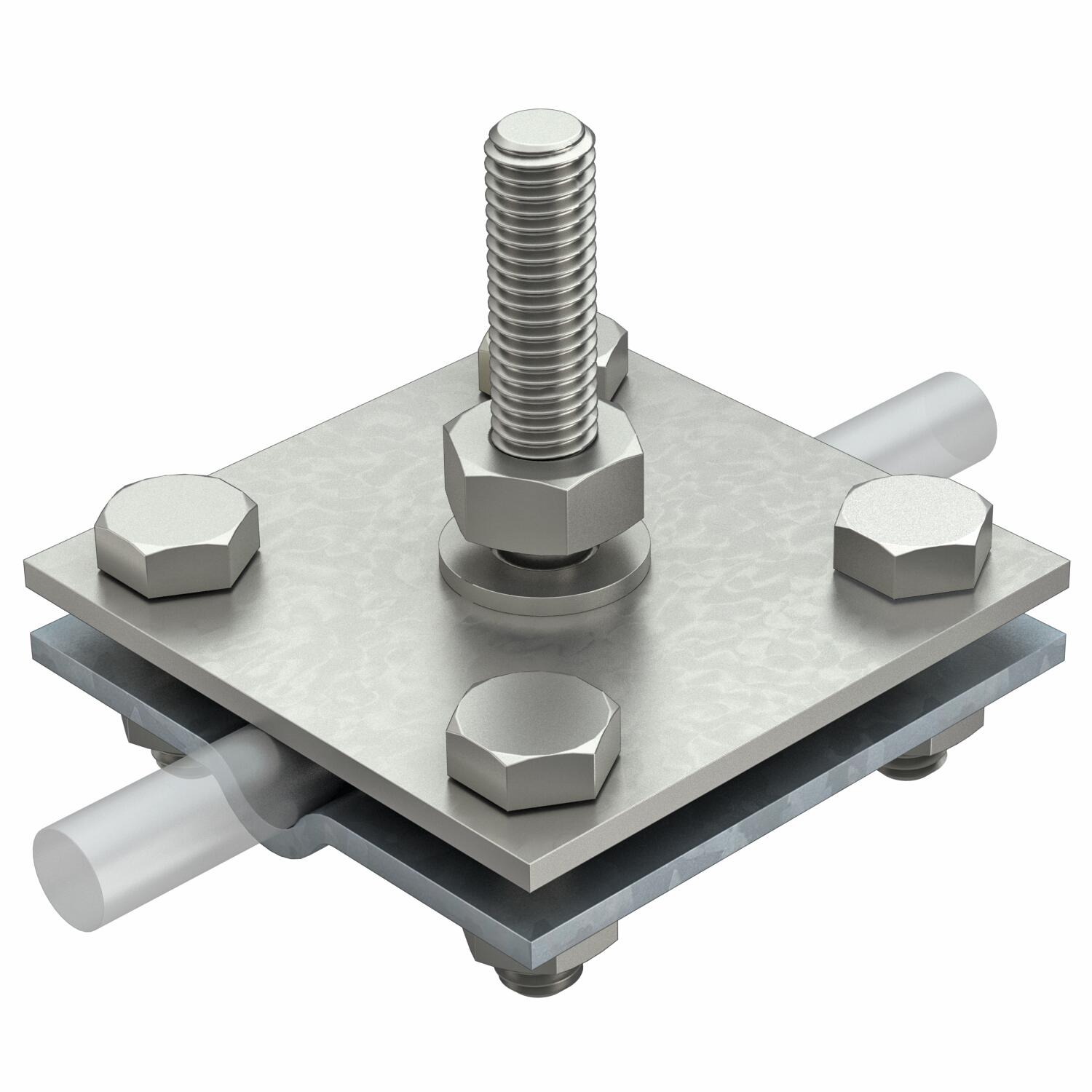

Cross-connector for flat conductors and round cables with threaded bolt M10x45
Item no. 5312657 | EAN 4012196454563
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10/FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Short-circuit current (50 HZ)(1 s;≤300°C) 4,2 Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Surface Hot-dip galvanised/stainless steel, grade 1.4301 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

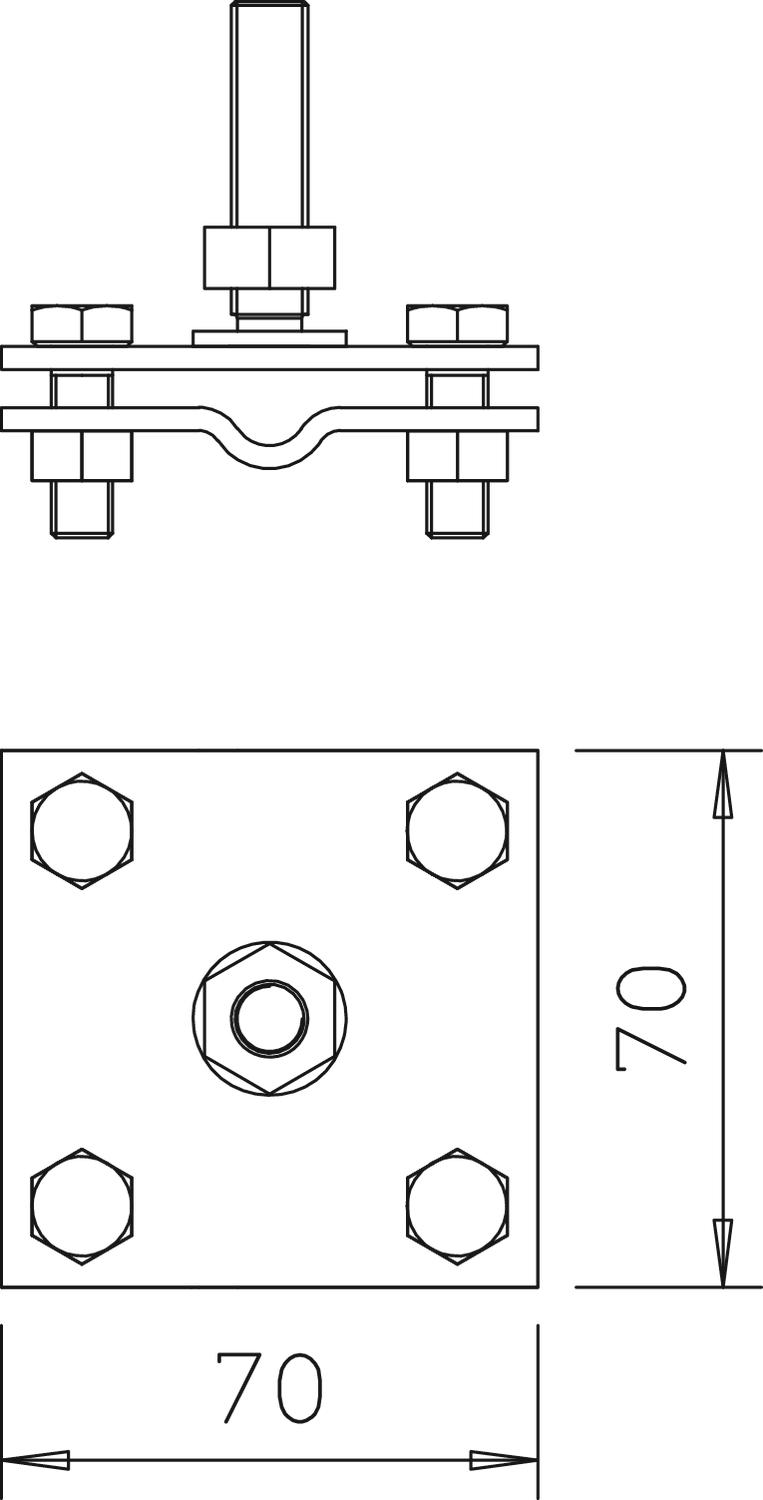

Dimension A 70 mm Dimension B 70 mm Height 55 mm Length 70 mm Width 70 mm - All types
