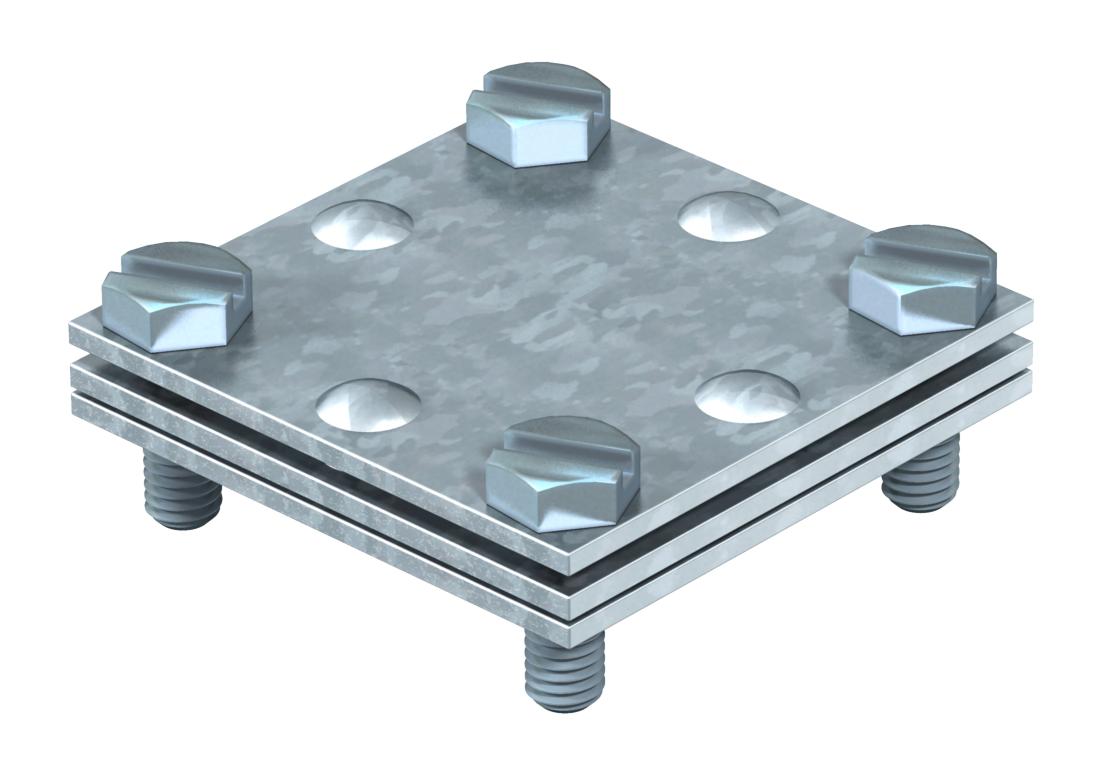

Cross-connector for flat conductor, with intermediate plate
Item no. 5314518 | EAN 4012195419174
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
• Fit: Max FL 30 x FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 (F)
-
- Technical data
-
Technical data
Dimension 30mm Fit max. FL30 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Flat conductor Fl 30 / Fl 30 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

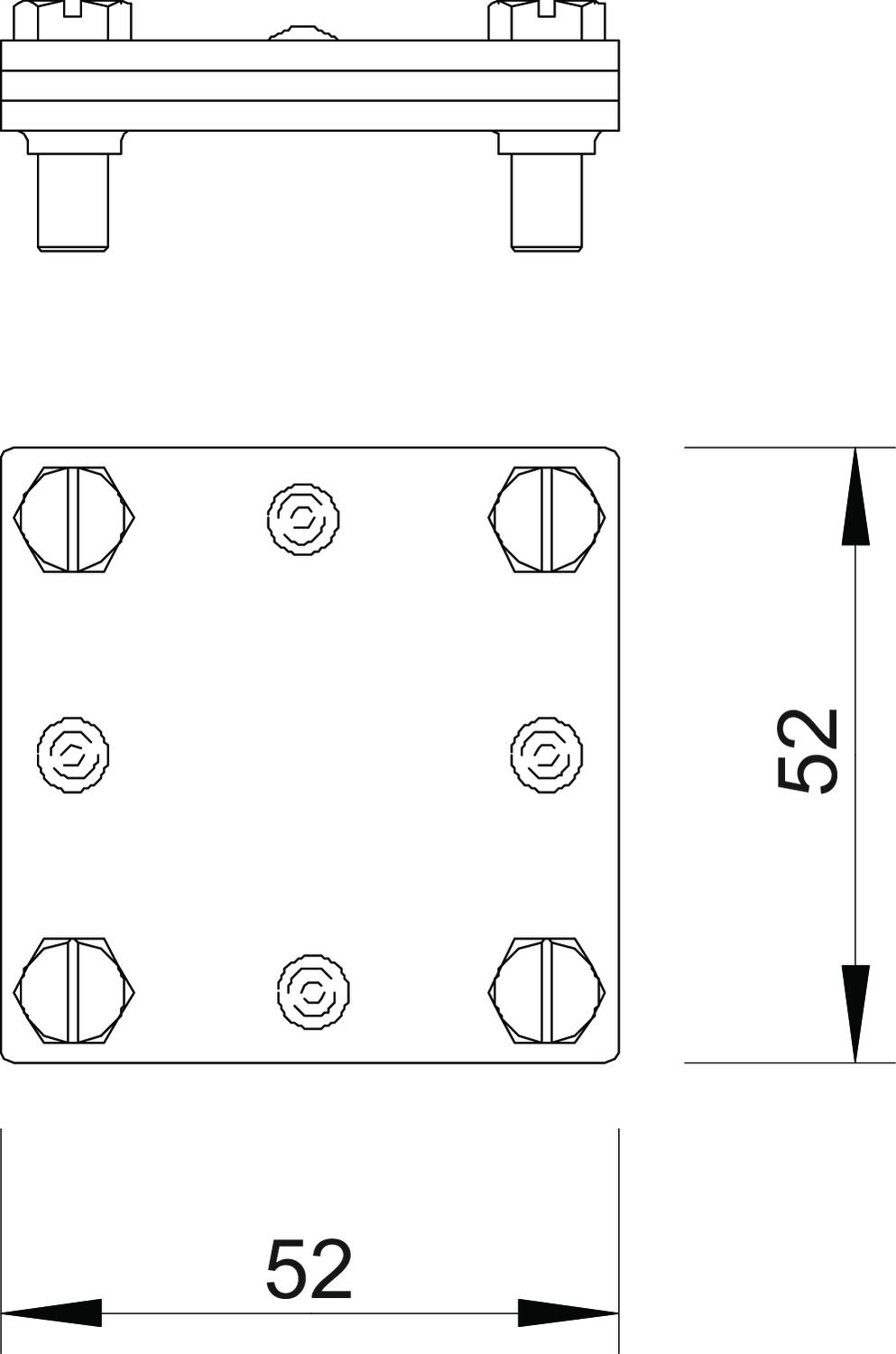

Dimension A 52 mm Dimension B 52 mm Dimension L 52 mm - All types
- Downloads
-
Data sheet 255 30 / 5314518 , 0.18MB , pdfREACH Declaration of conformity 255 30 / 5314518 , 0.27MB , pdfRoHS Declaration of conformity 255 30 / 5314518 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdfNo invitation to tender text is available for this product.
