Cover with turn buckle FS 3000 | 300 | 1

Cover with turn buckle FS

Item no. 6052304 | EAN 4012196058273

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

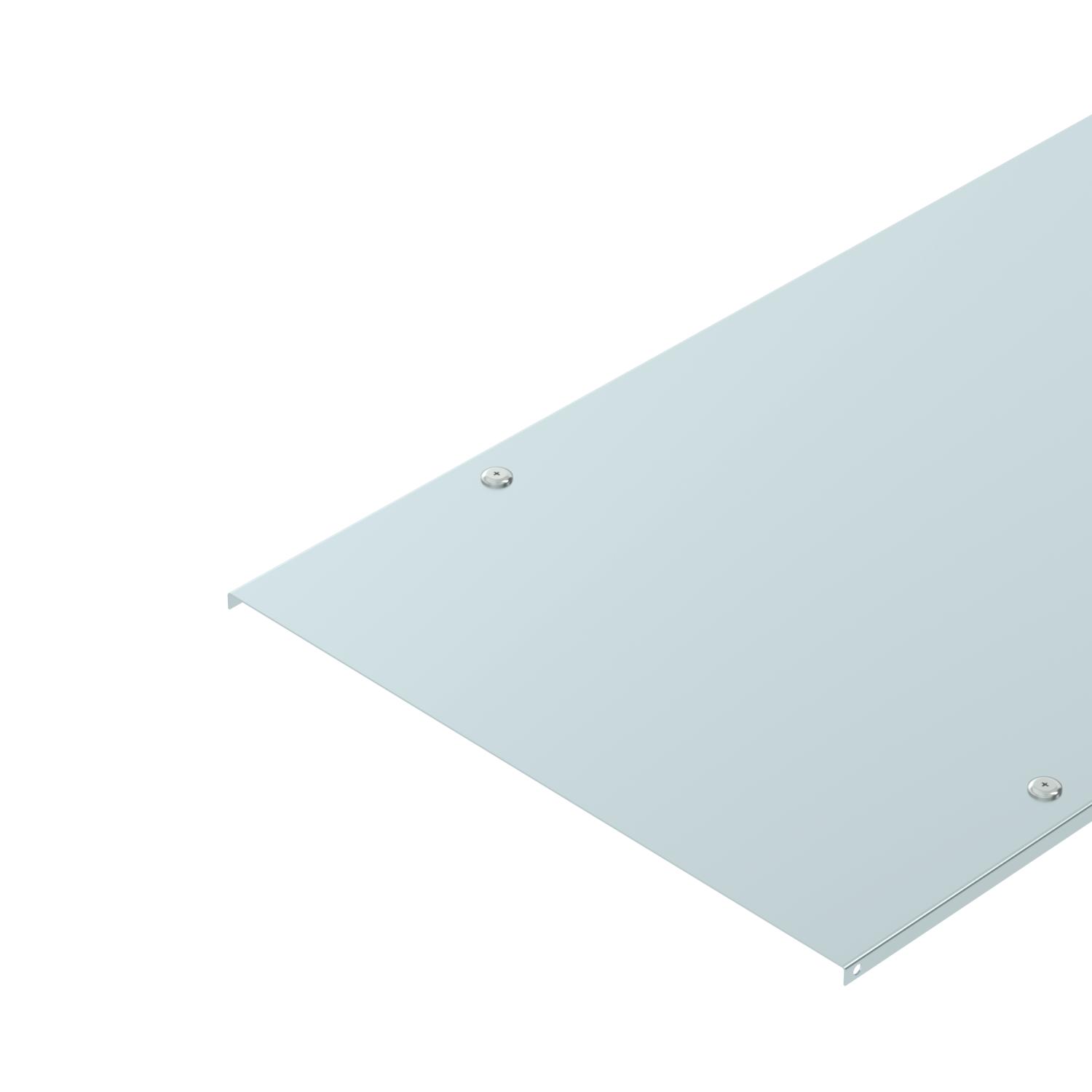

Cover for cable trays and cable ladders with turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	6,126 kg CO₂e / 1 Meter
Dimension	300x3000
Dimension B	300 mm
Dimension H	15 mm
Fastening type	Sash lock
Height	35 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	yes
Material	Steel

Number of turn buckles	6 St.
Plate thickness	1 mm
Plate thickness	0,04 in
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	300 mm
Width	12 in

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRL 075 FS	3000 mm	75 mm	1 mm	6052029	m	3 m
DRL 100 FS	3000 mm	100 mm	1 mm	6052096	m	3 m
DRL 150 FS	3000 mm	150 mm	1 mm	6052150	m	3 m
DRL 200 FS	3000 mm	200 mm	1 mm	6052207	m	3 m
DRL 300 FS	3000 mm	300 mm	1 mm	6052304	m	3 m
DRL 400 FS	3000 mm	400 mm	1 mm	6052401	m	3 m
DRL 500 FS	3000 mm	500 mm	1.25 mm	6052509	m	3 m
DRL 550 FS	3000 mm	550 mm	1.25 mm	6052568	m	3 m
DRL 600 FS	3000 mm	600 mm	1.25 mm	6052606	m	3 m
