Cover with turn buckle DD 3000 | 100 | 1

Cover with turn buckle DD

Item no. 6052703 | EAN 4012196038770

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

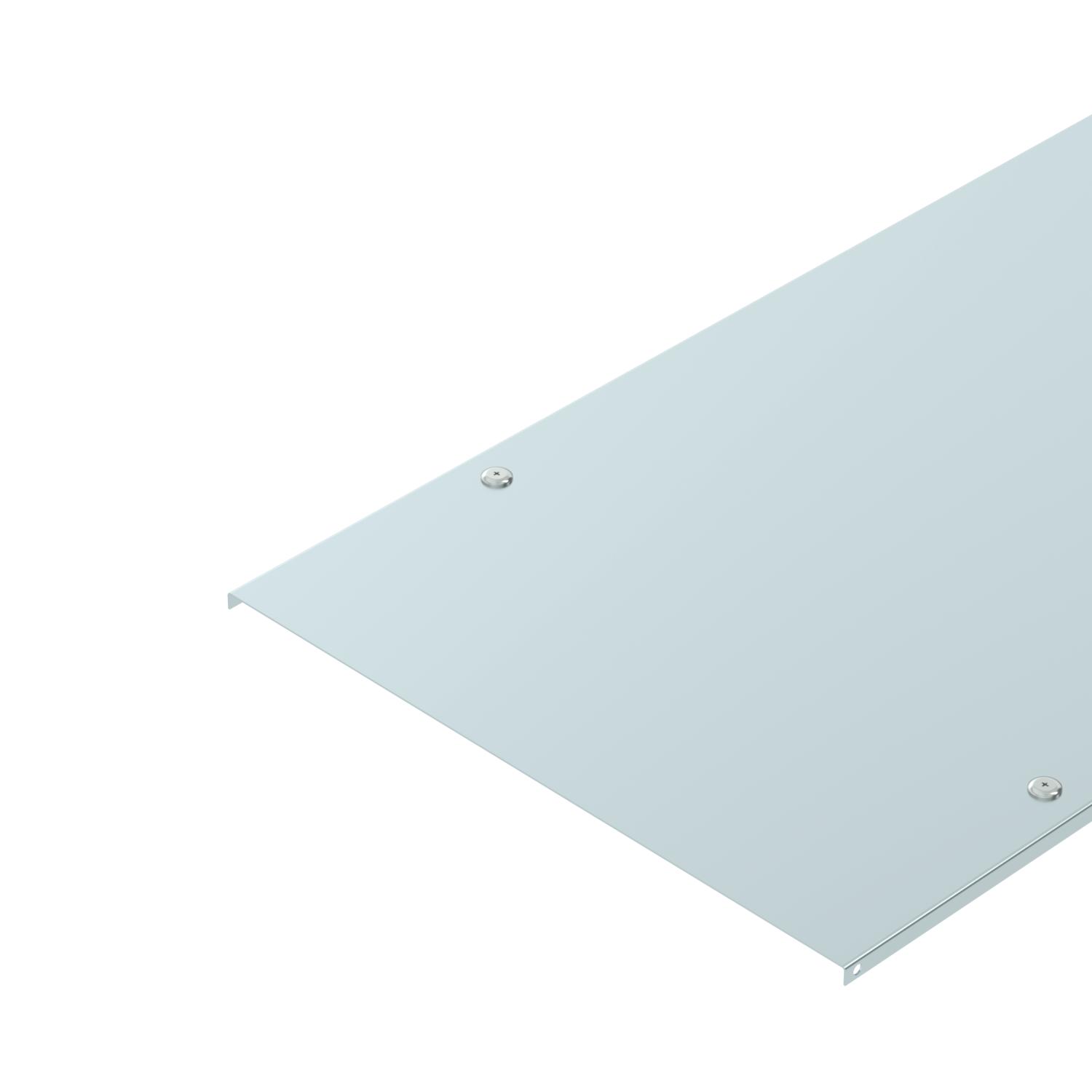

Cover for cable trays and cable ladders with turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

Colour	zinc
Dimension	100x3000
Dimension B	100 mm
Dimension H	15 mm
Fastening type	Sash lock
Height	35 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	no
Material	Steel

Number of turn buckles	6 St.
Plate thickness	0,03 in
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	4 in
Width	100 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRL 100 DD	3000 mm	100 mm	1 mm	6052703	m	3 m
DRL 150 DD	3000 mm	150 mm	1 mm	6052706	m	3 m
DRL 200 DD	3000 mm	200 mm	1 mm	6052709	m	3 m
DRL 300 DD	3000 mm	300 mm	1 mm	6052712	m	3 m
DRL 400 DD	3000 mm	400 mm	1 mm	6052715	m	3 m
DRL 500 DD	3000 mm	500 mm	1.25 mm	6052718	m	3 m
DRL 550 DD	3000 mm	550 mm	1.25 mm	6052721	m	3 m
DRL 600 DD	3000 mm	600 mm	1.25 mm	6052724	m	3 m
