Cover with turn buckle A4 3000 | 600 | 1.25
morepic-1 morepic-2 video-1

Cover with turn buckle A4

Item no. 6052986 | EAN 4012195866190

3000 mm
Product description

Product description

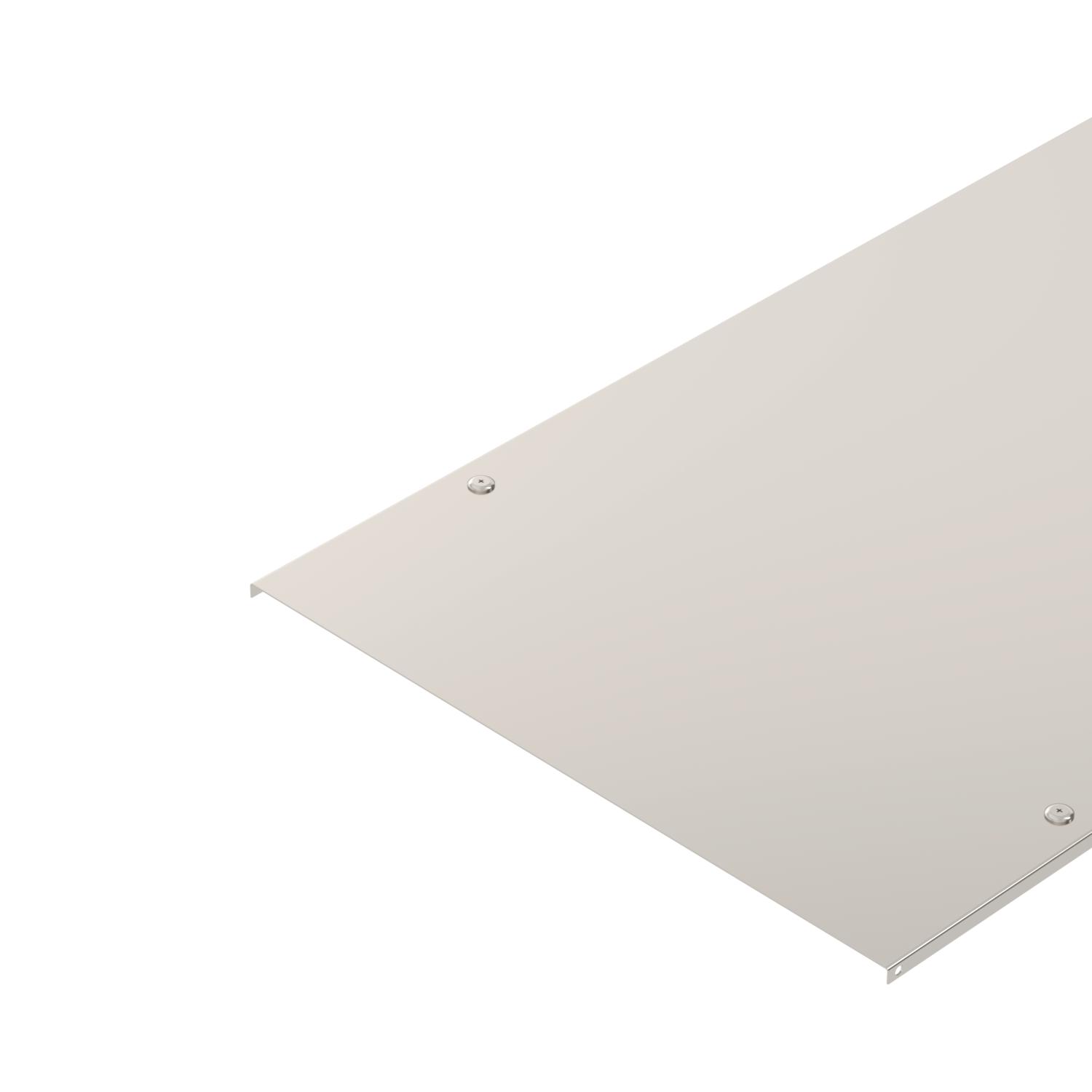

Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 600x3000
Dimension B 600 mm
Fastening type Sash lock
Height 13 mm
Length 3000 mm
Maintain electrical functions no
Material Stainless steel
Plate thickness 1,25 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Bright, treated
Width 600 mm
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU
DRL 100 A4 3000 mm 100 mm 1 mm 6052980
3 m
DRL 200 A4 3000 mm 200 mm 1 mm 6052981
3 m
DRL 300 A4 3000 mm 300 mm 1 mm 6052983
3 m
DRL 400 A4 3000 mm 400 mm 1 mm 6052984
3 m
DRL 500 A4 3000 mm 500 mm 1.25 mm 6052985
3 m
DRL 600 A4 3000 mm 600 mm 1.25 mm 6052986
3 m
