Cover with turn buckle A2 3000 | 600 | 1.5
morepic-1 morepic-2 video-1 video-2

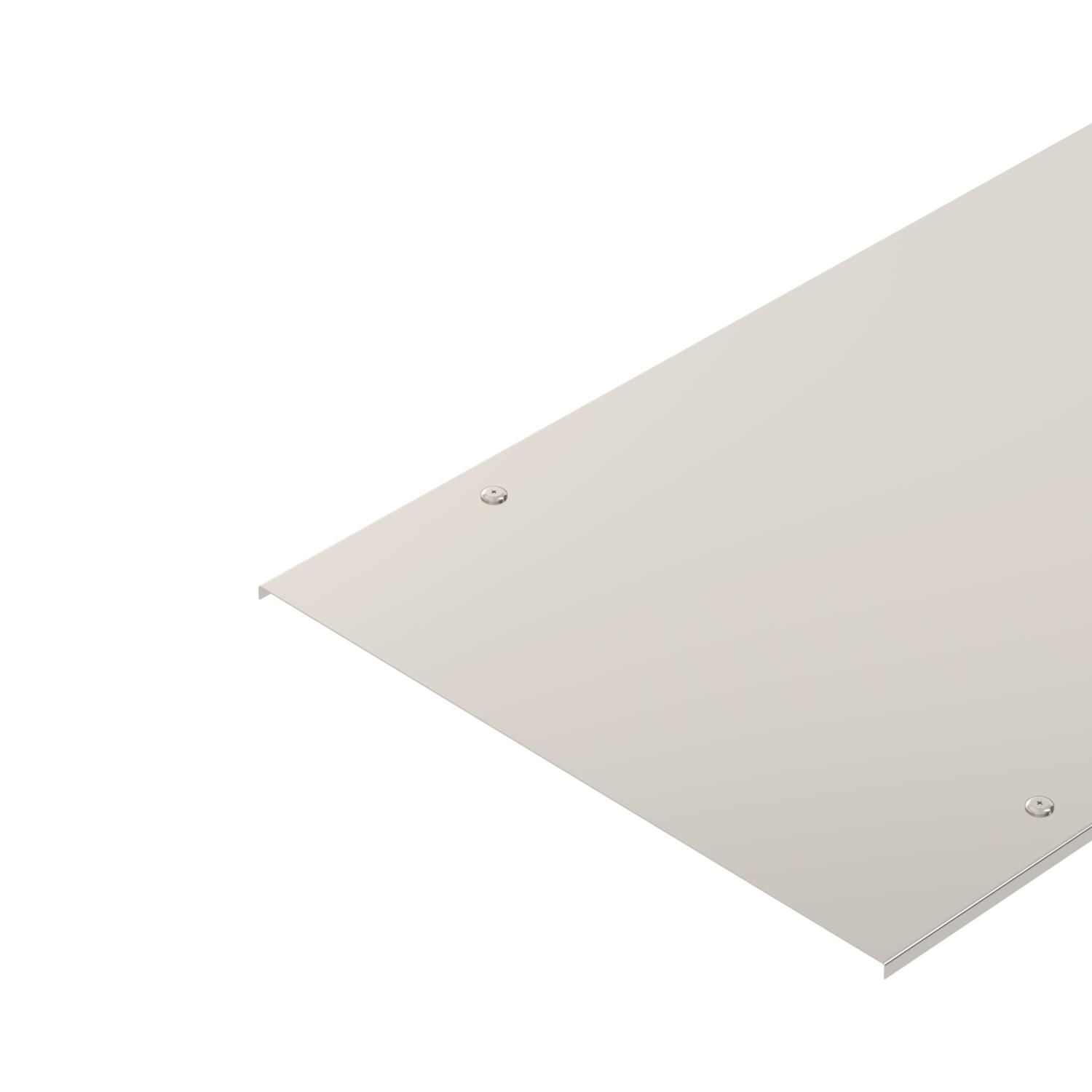

Cover with turn buckle A2

Item no. 6227368 | EAN 4012195751359

3000 mm
1.5 mm
Product description

Product description

Cover for wide span trays and ladders with the side height 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
  • Wide span cable ladder, side height 110 mm
  • Wide span cable ladder, side height 160 mm
Technical data

Technical data

Dimension 600x3000
Fastening type Sash lock
Maintain electrical functions no
Material Stainless steel
Number of turn buckles 6 St.
Plate thickness 1,5 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Bright, treated

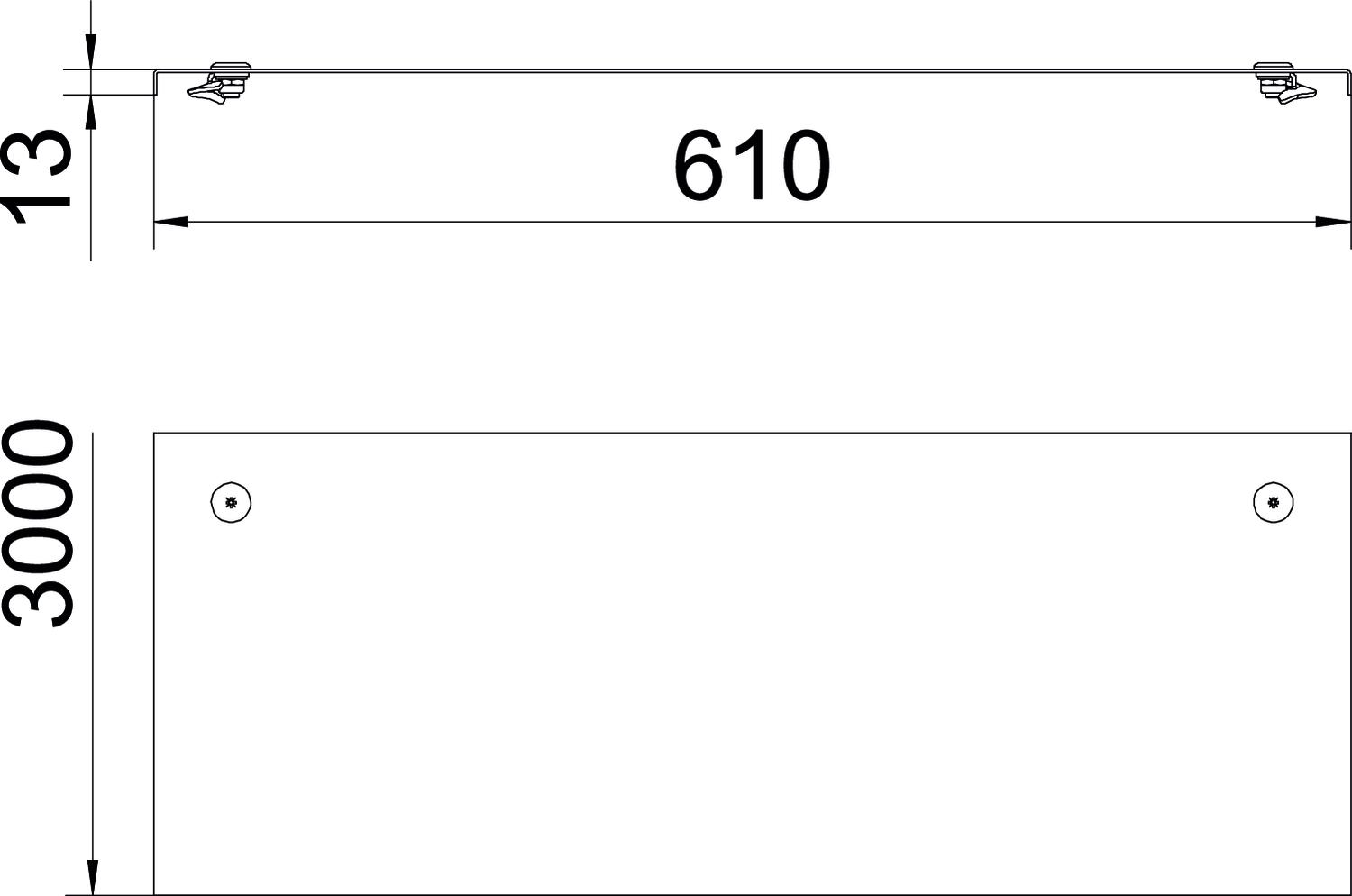

Dimensions

Dimension B 600 mm
Dimension H 15 mm
Dimension L 3000 mm
Height 13 mm
Length 3000 mm
Width 600 mm
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU
WDRL 1116 20 A2 3000 mm 200 mm 1.5 mm 6227360
3 m
WDRL 1116 30 A2 3000 mm 300 mm 1.5 mm 6227362
3 m
WDRL 1116 40 A2 3000 mm 400 mm 1.5 mm 6227364
3 m
WDRL 1116 50 A2 3000 mm 500 mm 1.5 mm 6227366
3 m
WDRL 1116 60 A2 3000 mm 600 mm 1.5 mm 6227368
3 m
