Cover with turn buckle A2 3000 | 600 | 1.25

Cover with turn buckle A2

Item no. 6052975 | EAN 4012196059171

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

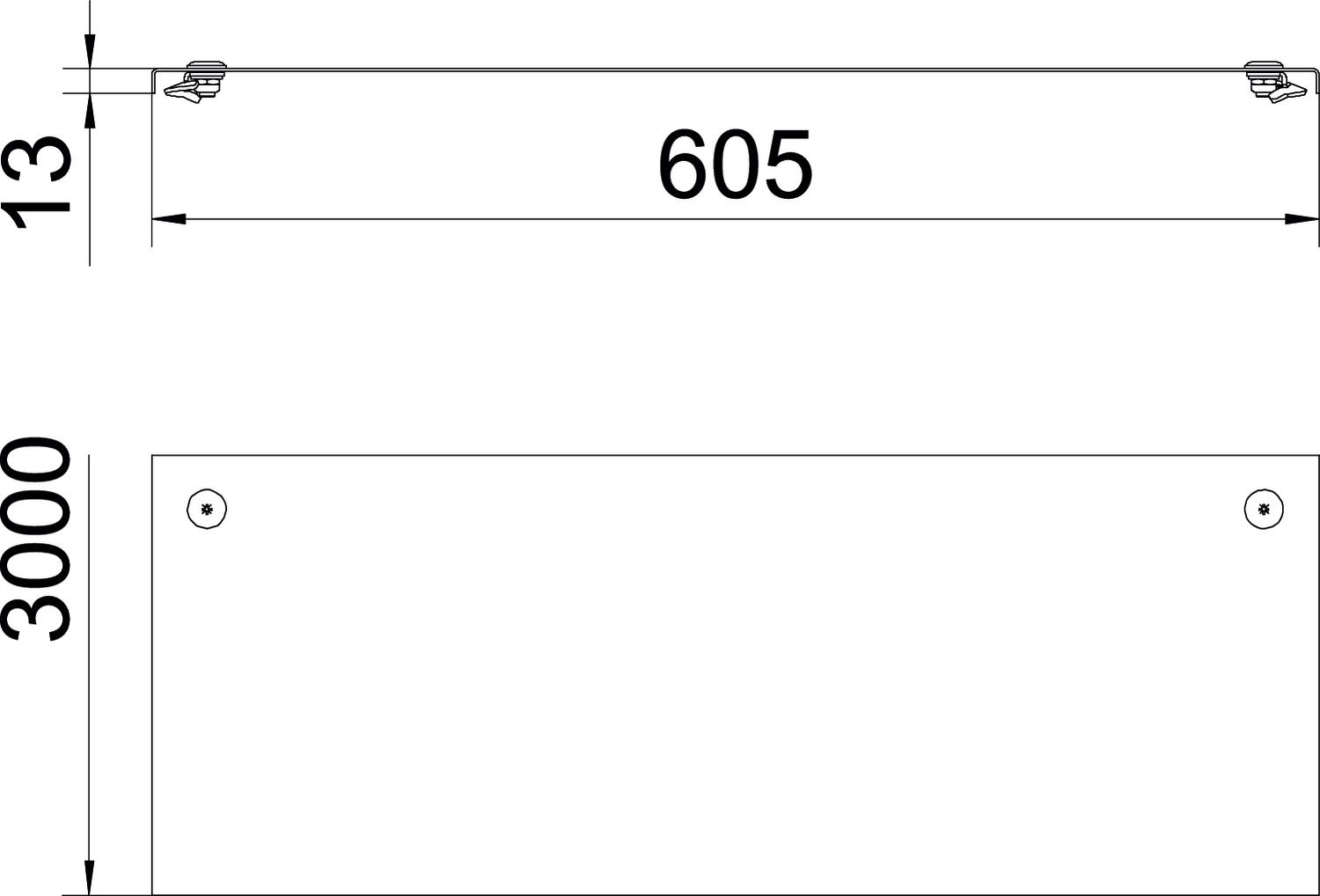

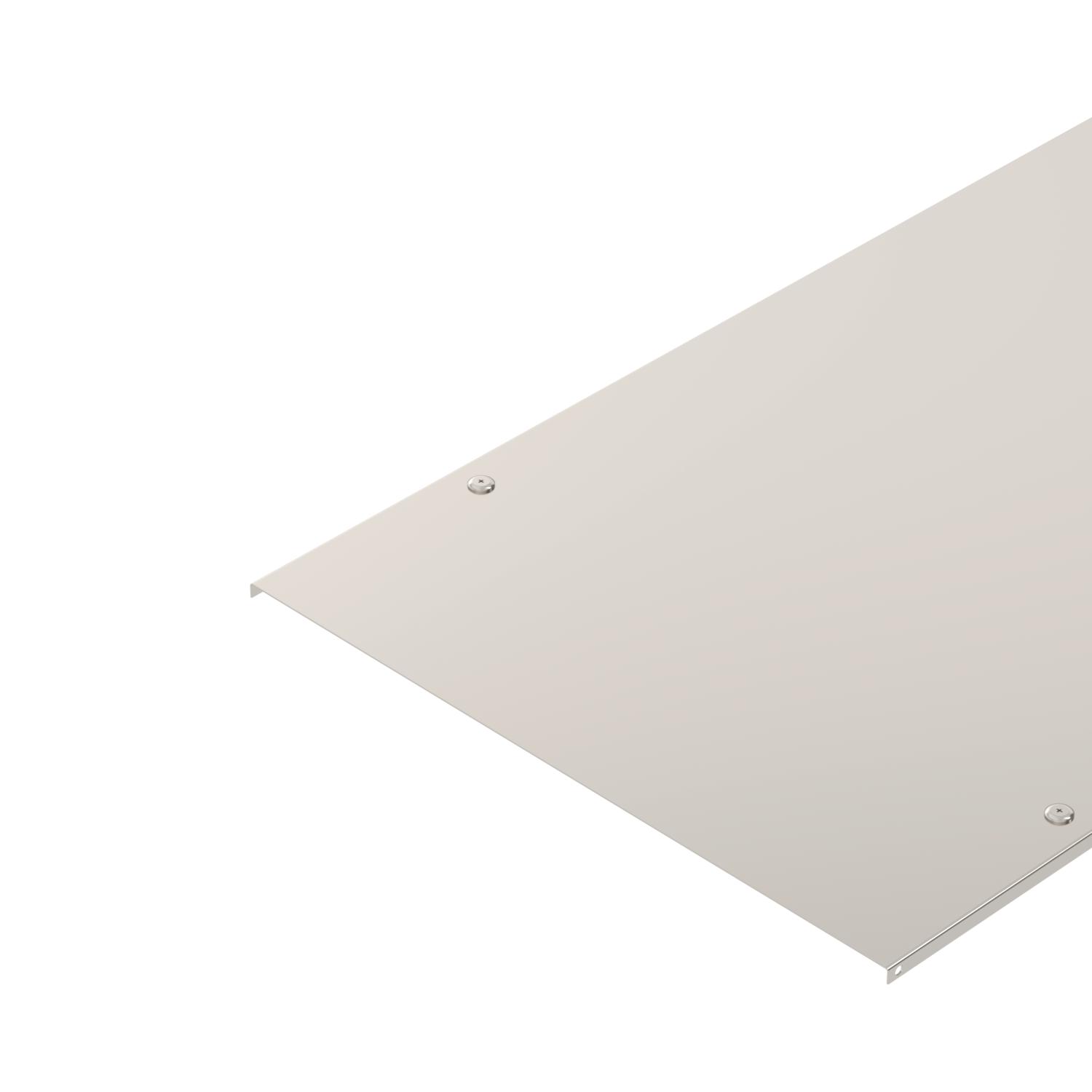

Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

Colour	stainless steel
Dimension	600x3000
Dimension B	600 mm
Dimension H	15 mm
Fastening type	Sash lock
Height	35 mm
Length	3000 mm
Maintain electrical functions	no
Material	Stainless steel

Number of turn buckles	6 St.
Plate thickness	1,25 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	600 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRL 100 A2	3000 mm	100 mm	1 mm	6052878	m	3 m
DRL 150 A2	3000 mm	150 mm	1 mm	6052886	m	3 m
DRL 200 A2	3000 mm	200 mm	1 mm	6052894	m	3 m
DRL 300 A2	3000 mm	300 mm	1 mm	6052908	m	3 m
DRL 400 A2	3000 mm	400 mm	1 mm	6052932	m	3 m
DRL 500 A2	3000 mm	500 mm	1.25 mm	6052959	m	3 m
DRL 600 A2	3000 mm	600 mm	1.25 mm	6052975	m	3 m
