- Product description
-
Product description

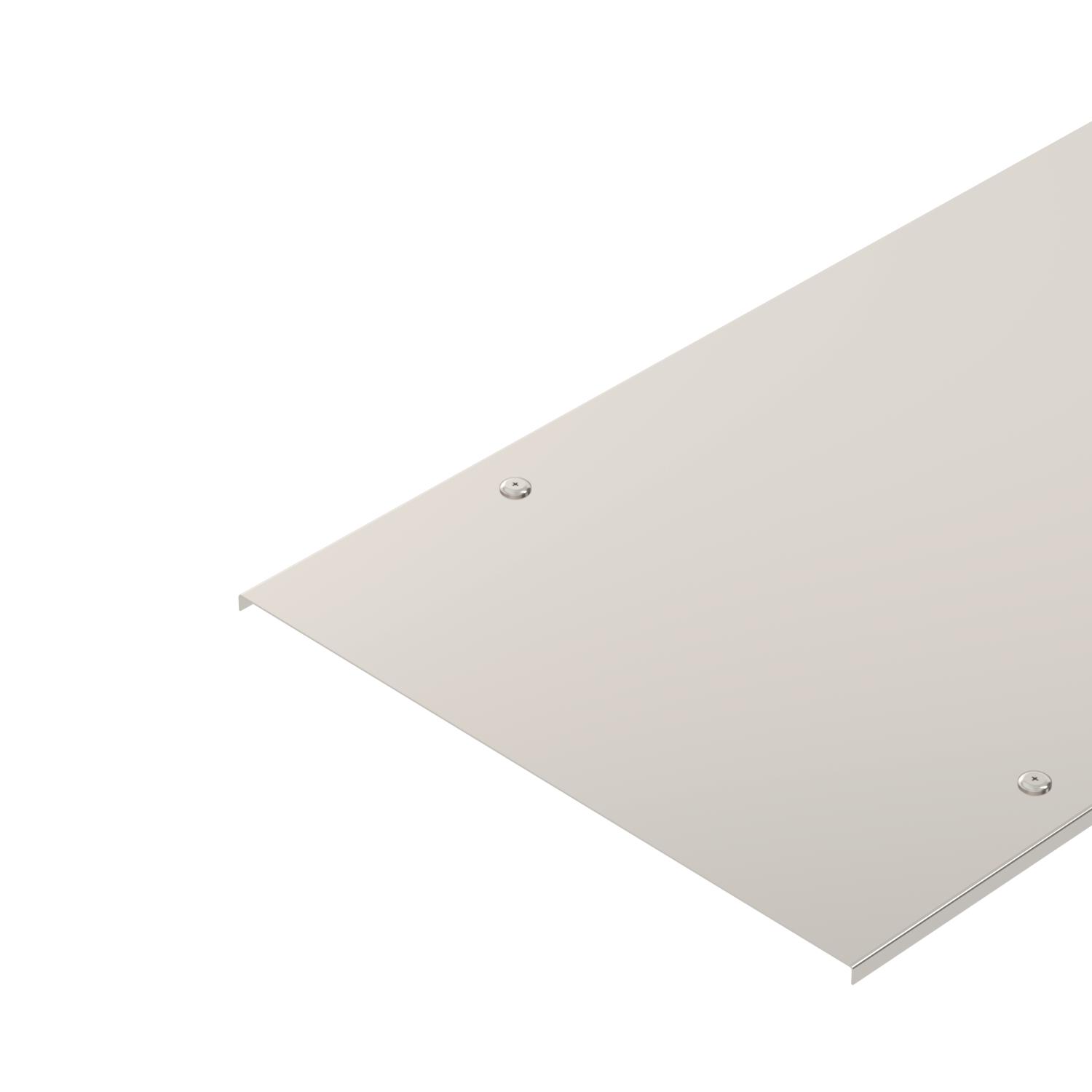

Cover for wide span trays and ladders with the side height 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.
- Technical data
-
Technical data

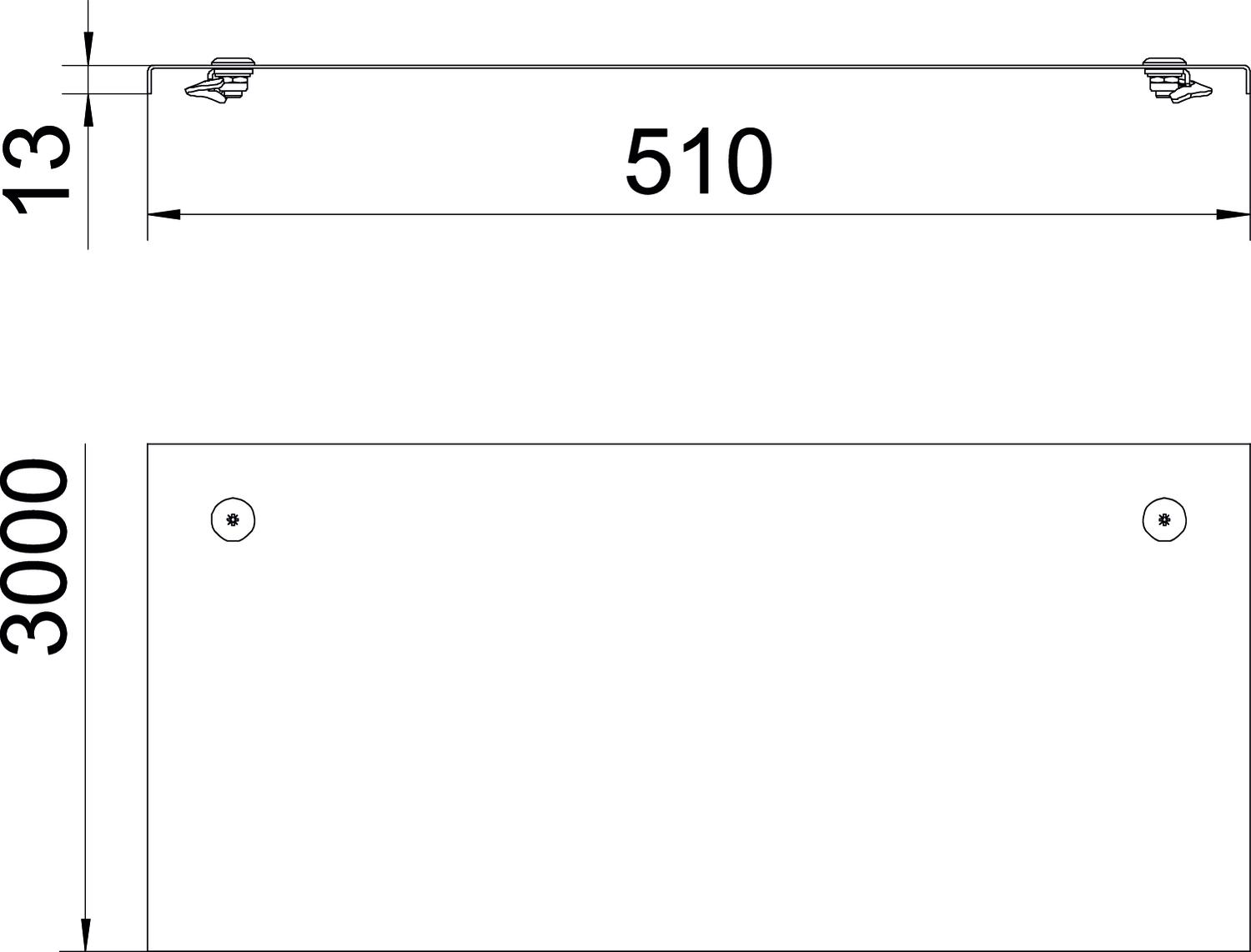

Dimension 500x3000 Dimension B 500 mm Dimension H 15 mm Dimension L 3000 mm Fastening type Sash lock Height 13 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Number of turn buckles 6 St. Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 500 mm - All types
- Downloads
-
Data sheet WDRL 1116 50 A2 / 6227366 , 0.25MB , pdfDeclaration of conformity WDRL 1116 50 A2 / 6227366 , 0.11MB , pdfUK Declaration of Conformity WDRL 1116 50 A2 / 6227366 , 0.09MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
