Cover with chequer plate and turn buckle FS 3000 | 100 | 6

Cover with chequer plate and turn buckle FS

Item no. 6049181 | EAN 4012196146826

Item no. / Types

Length	3000 mm

Width

Plate thickness	6 mm

Product description

Product description

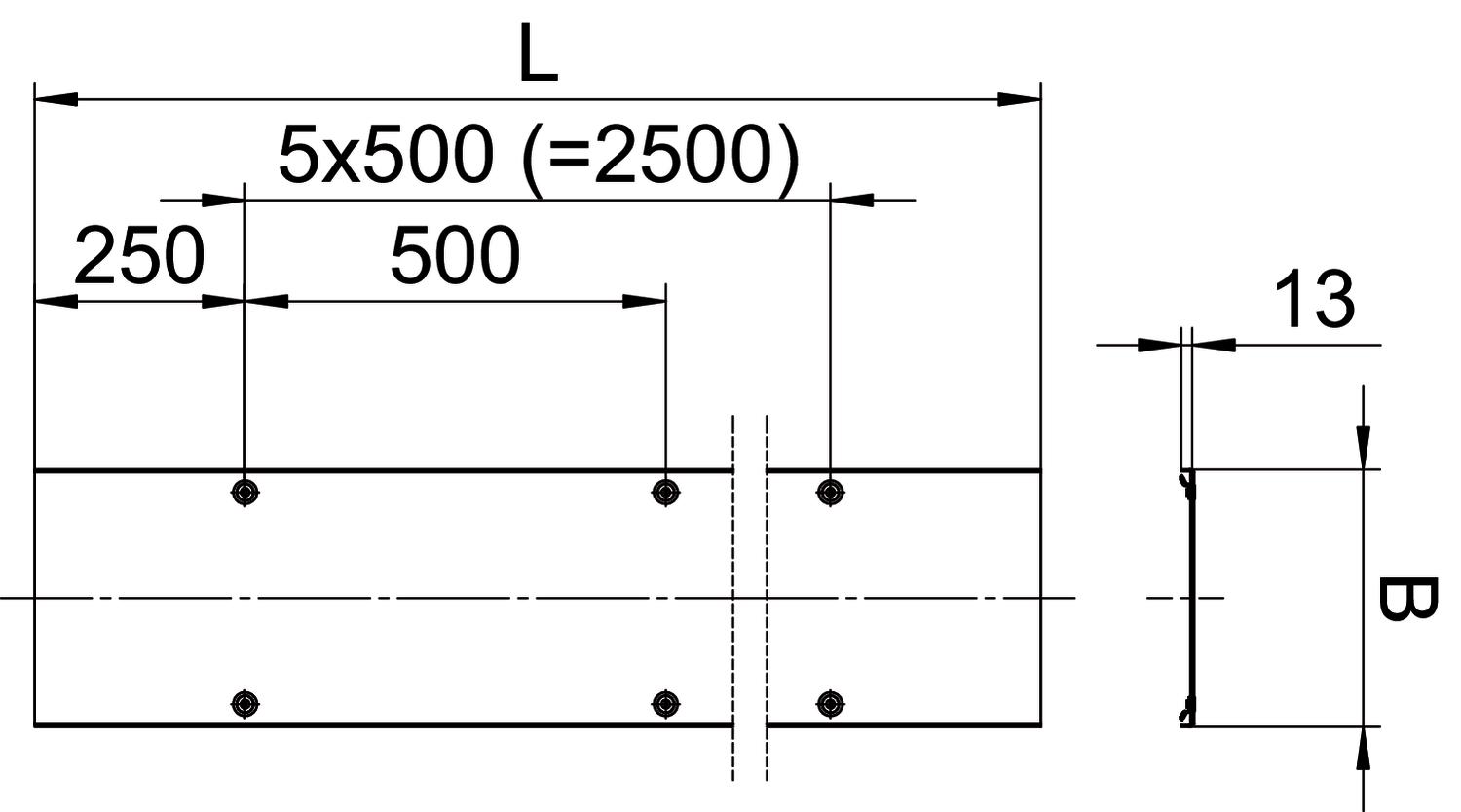

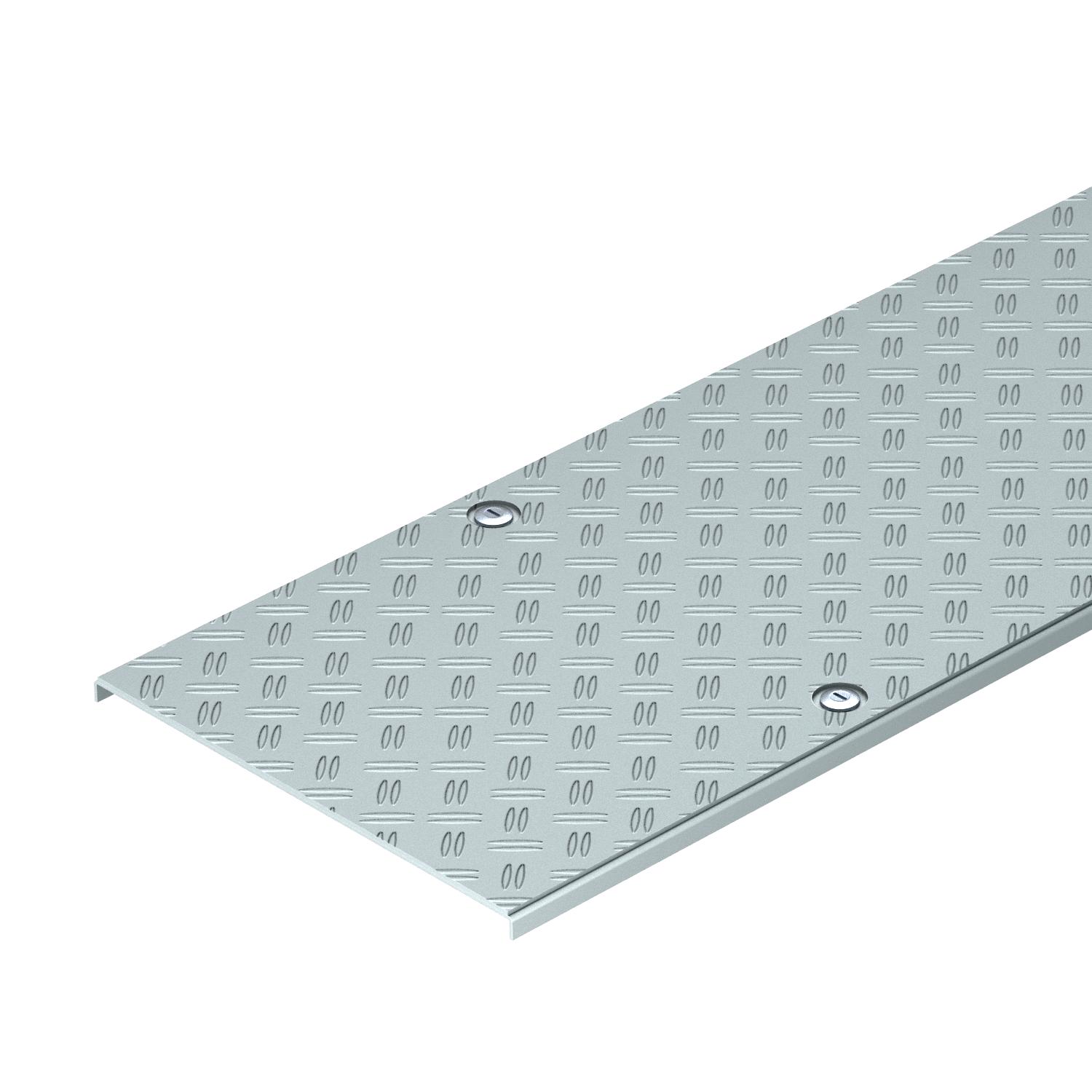

Cable tray cover for the walkable BKRS cable tray system. The basic cover is strip galvanised in a material thickness of 2 mm with additional aluminium chequer riveted on in a thickness of 4 mm, sturdy and non-slip. Turn buckle fastening with a turn buckle distance of 500 mm.
When the cover is used under wind, draught or pressure impacts, additional security measures are required.

Technical data

Technical data

Dimension	100x3000
Dimension B	100 mm
Dimension L	3000 mm
Fastening type	Sash lock
Length	10 ft
Length	3000 mm
Maintain electrical functions	no
Material	Aluminium/Steel
Number of turn buckles	14 St.

Plate thickness	6 mm
Plate thickness	0,24 in
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Width	100 mm
Width	4 in

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DF BKR10 FS AL	3000 mm	100 mm	6 mm	6049181	m	3 m
DF BKR20 FS AL	3000 mm	200 mm	6 mm	6049183	m	3 m
DF BKR30 FS AL	3000 mm	300 mm	6 mm	6049185	m	3 m
DF BKR40 FS AL	3000 mm	400 mm	6 mm	6049187	m	3 m
DF BKR50 FS AL	3000 mm	500 mm	6 mm	6049189	m	3 m
DF BKR60 FS AL	3000 mm	600 mm	6 mm	6049191	m	3 m
