Cover, unperforated DD 3000 | 53 | 1

morepic-1

morepic-2

Cover, unperforated DD

Item no. 6080158 | EAN 4012196084135

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Product description

Product description

Cover without turn buckles for AZ small duct.

Technical data

Technical data

Antibacterial treatment	no
Dimension	53x3000
Dimension H	10 mm
Fastening type	Cover clamp
Height	10 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel

Number of turn buckles	3 St.
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	53 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
AZDU 50 DD	3000 mm	53 mm	1 mm	6080158	m	3 m
AZDU 100 DD	3000 mm	103 mm	1 mm	6080239	m	3 m

Downloads

Data sheet AZDU 50 DD / 6080158 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity AZDU 50 DD / 6080158 , 0.15MB , pdf

REACH Declaration of conformity AZDU 50 DD / 6080158 , 0.12MB , pdf

Download

RoHS Declaration of conformity AZDU 50 DD / 6080158 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

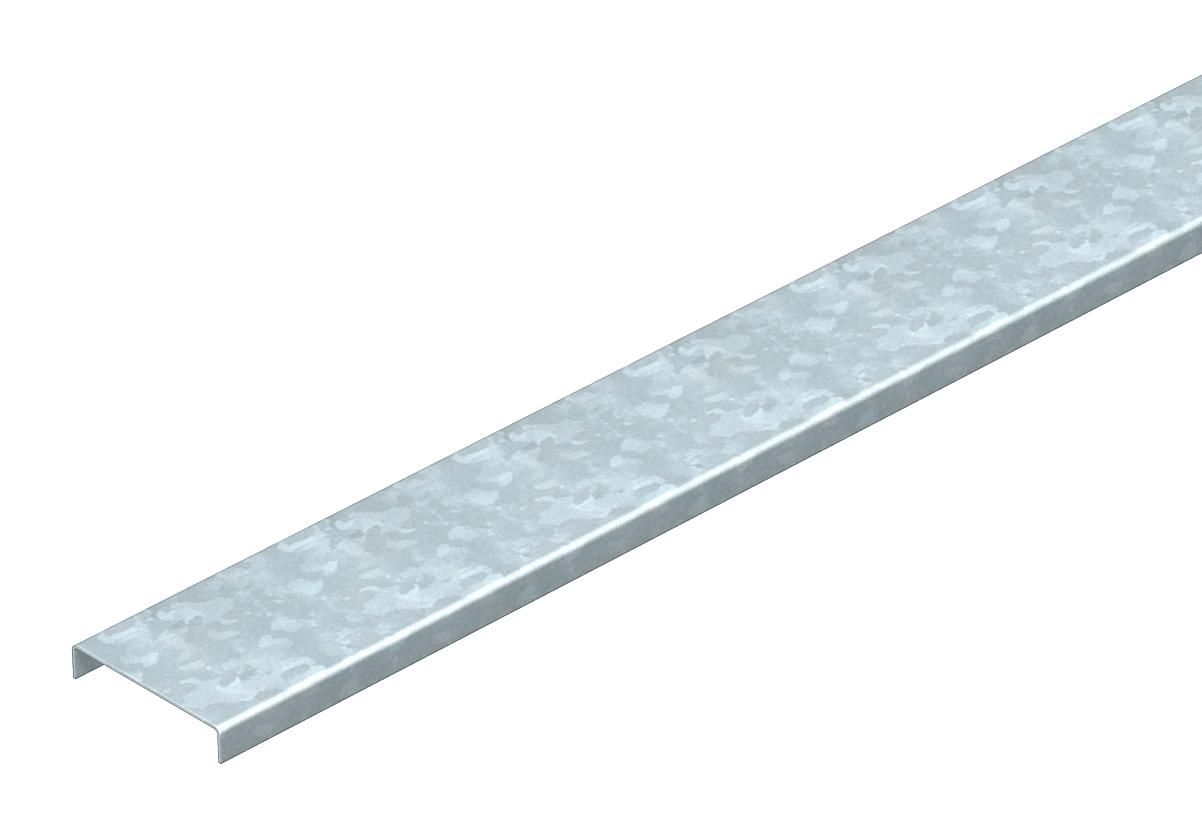

Product graphic AZDU 50 DD / 6080158, 37.91 kB, jpg

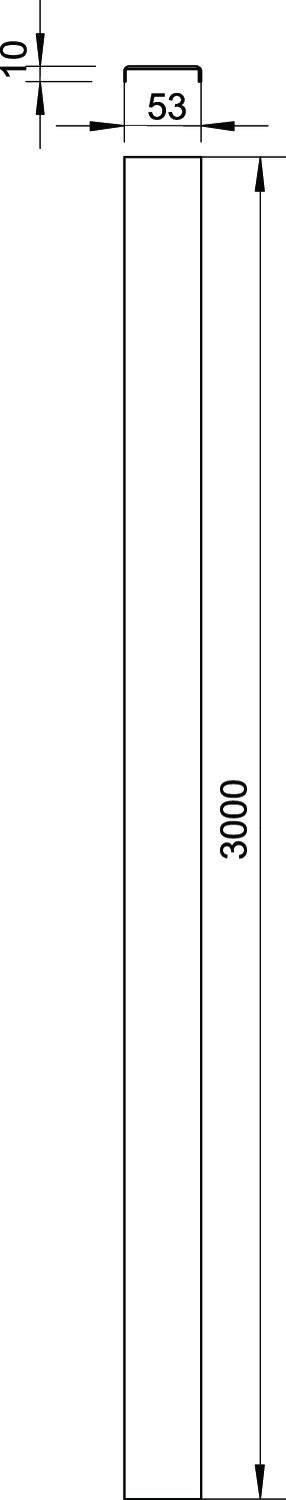

Scale drawing AZDU 50 DD / 6080158, 16.51 kB, jpg

AZDU 50 DD / 6080158

6080158_KSTP1.stp, 18.75 kB
