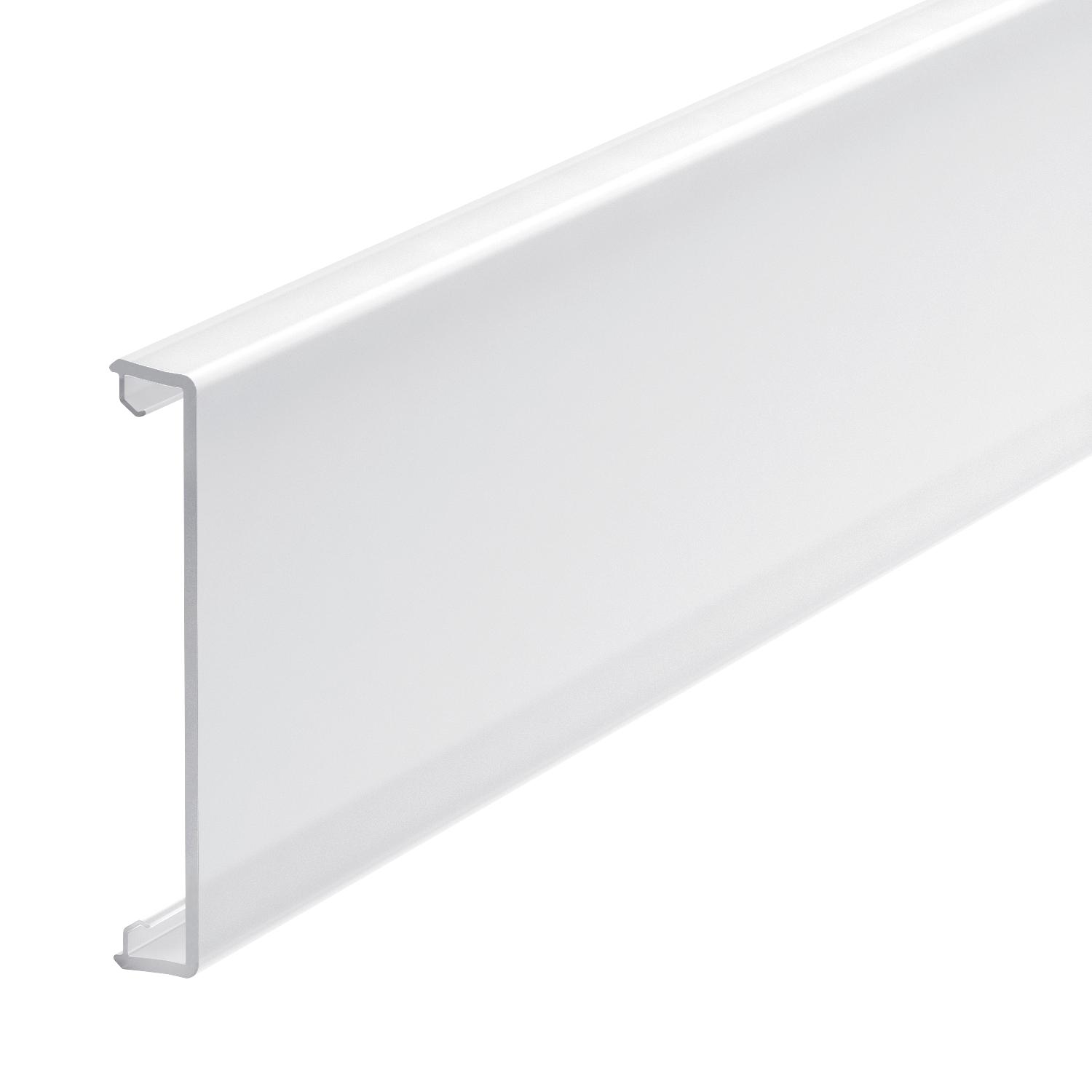

Cover Rapid 80, opal, smooth
Item no. 6278690 | EAN 4012196036233
- Product description
-
Product descriptionTrunking cover for closing Rapid 80 GK (PVC), GS (steel) and GA (aluminium) device installation trunking as well as ISS service poles with a 76.5 mm system opening. The GK-OTGO cover is made from translucent but milky plastic (looking like cut glass) and is therefore suitable for integrating lighting in the trunking or service poles.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Transparent Cover mounting type Internal Dimension 80x2000mm Halogen-free no Height 12 mm Length 2000 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film yes Version for Smooth Width 76,5 mm - All types
- Downloads
-
Data sheet GK-OTGO / 6278690 , 0.19MB , pdfEU declaration of conformity GK-OTGO / 6278690 , 0.13MB , pdfUK Declaration of Conformity GK-OTGO / 6278690 , 0.14MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
