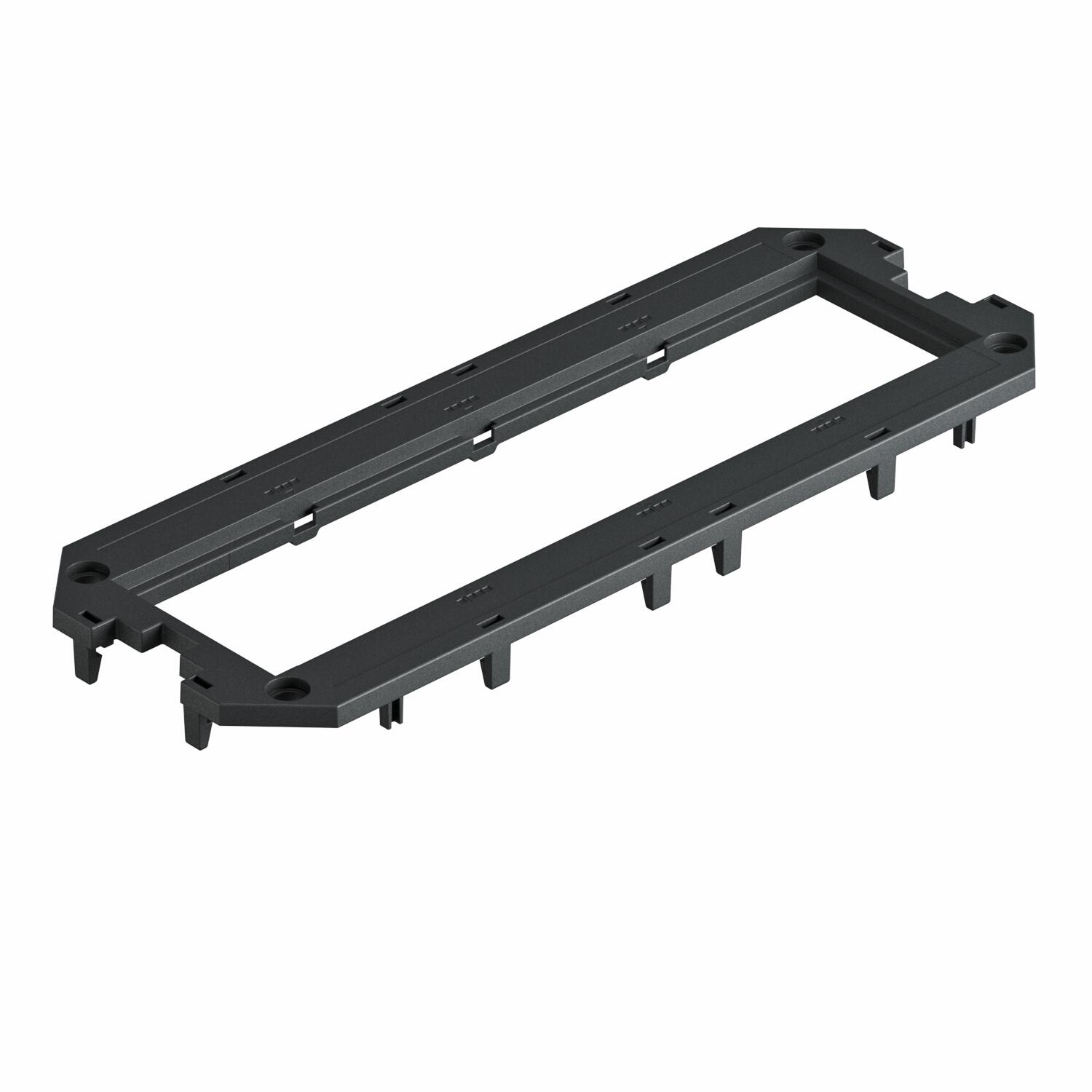

Cover plate for universal support UT4, Modul 45® installation opening
Item no. 7408763 | EAN 4012196435340
- Product description
-
Product descriptionCover plate for the installation of 4 Modul 45 devices.
Mounting bridge UT34T for the installation of individual devices or socket combinations should be ordered separately.
-
- Technical data
-
Technical data

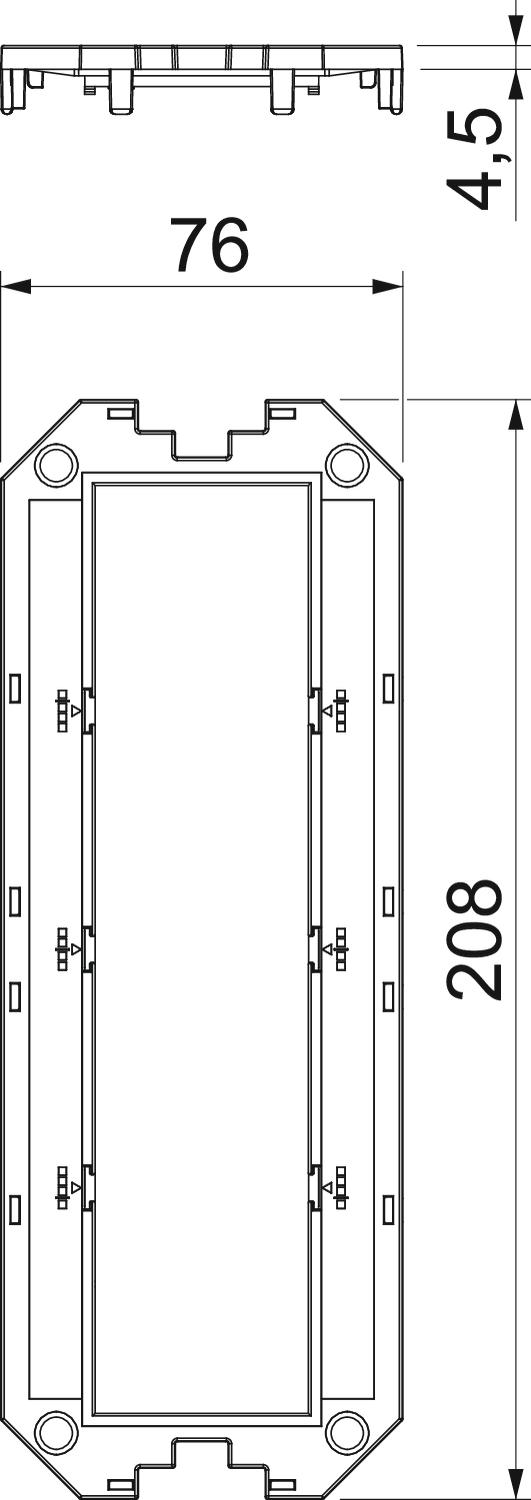

Application Mounting box Blanking lid no Colour Graphite black; RAL 9011 CO₂ Footprint (GWP) Cradle-to-Gate 0,158 kg CO₂e / 1 Piece Dimension 208x76x4 Division in UT4 1/1 Fastening type Lockable Installation technology Grid M45 Labelling panel no Length 208 mm Material Polyamide Number of installable devices 4 Suitable for labelling panel no - All types
- Downloads
-
Data sheet UT4 P4 / 7408763 , 0.26MB , pdfEU declaration of conformity UT4 P4 / 7408763 , 0.10MB , pdfREACH Declaration of conformity UT4 P4 / 7408763 , 0.12MB , pdfRoHS Declaration of conformity UT4 P4 / 7408763 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdf
