Cover LK4 D 60
Item no. 6178486 | EAN 4012196040568
- Product description
-
Product descriptionTrunking cover for replacement requirements.
Flushfloor design with predetermined break points
-
- Technical data
-
Technical data

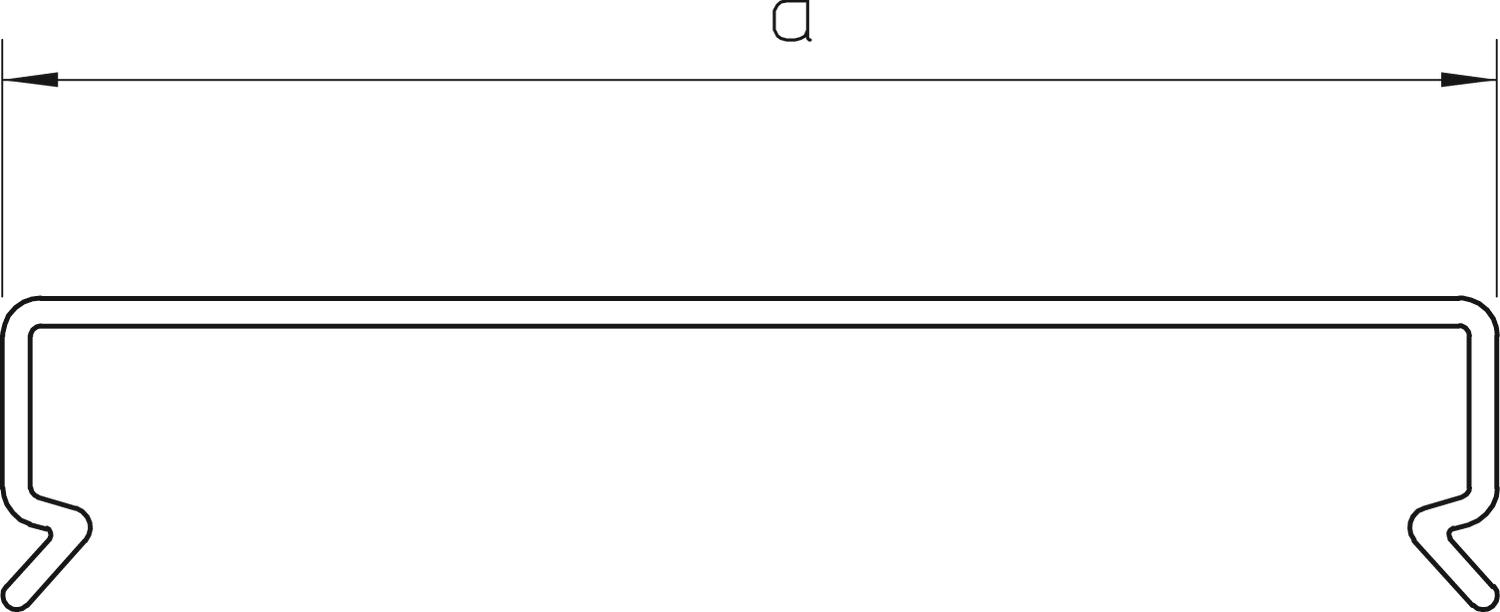

Colour Stone grey; RAL 7030 Dimension 60mm Dimension a 66,4 mm for duct width 60 mm Halogen-free no Length 2000 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Self-extinguishing yes Width 60 mm - All types
- Downloads
-
Data sheet LK4 D 60 / 6178486 , 0.18MB , pdfBrochure Wiring trunking , 2.79MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LK4 D 60 / 6178486 , 0.13MB , pdfUK Declaration of Conformity LK4 D 60 / 6178486 , 0.14MB , pdfREACH Declaration of conformity LK4 D 60 / 6178486 , 0.12MB , pdfRoHS Declaration of conformity LK4 D 60 / 6178486 , 0.12MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
