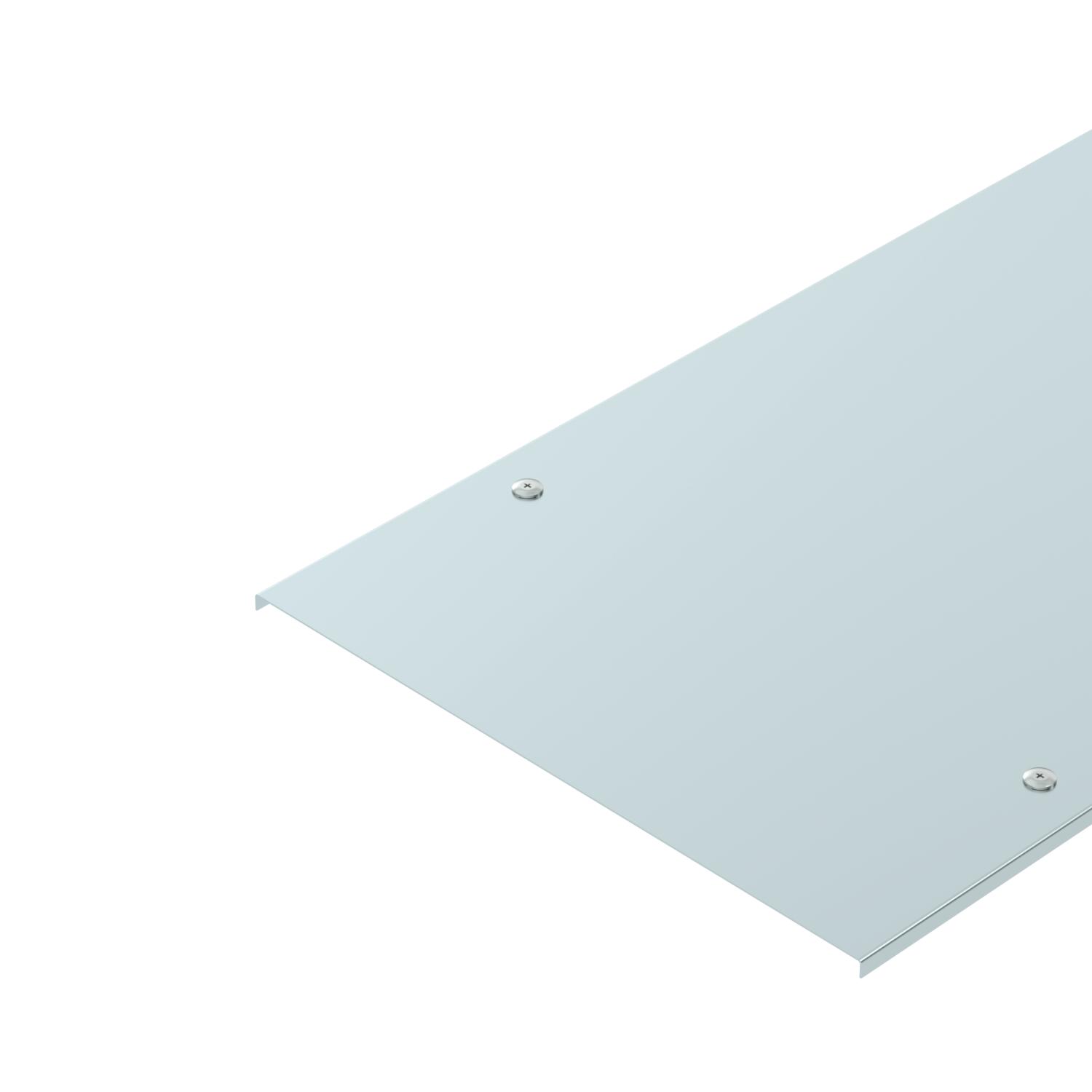

Cover incl. turn buckle FS 3000 | 500 | 1.5

Cover incl. turn buckle FS

Item no. 6227457 | EAN 4012196169870

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.

Technical data

Technical data

Dimension	500x3000
Dimension B	500 mm
Dimension H	15 mm
Dimension L	3000 mm
Fastening type	Sash lock
Height	110 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel

Number of turn buckles	6 St.
Plate thickness	1,5 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	500 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
WDRL 1116 20 FS	3000 mm	200 mm	1 mm	6227422	m	3 m
WDRL 1116 30 FS	3000 mm	300 mm	1 mm	6227430	m	3 m
WDRL 1116 40 FS	3000 mm	400 mm	1 mm	6227449	m	3 m
WDRL 1116 50 FS	3000 mm	500 mm	1.5 mm	6227457	m	3 m
WDRL 1116 60 FS	3000 mm	600 mm	1.5 mm	6227465	m	3 m
