Cover for tee FT 450 | 1.25

morepic-1

morepic-2

Cover for tee FT

Item no. 6226126 | EAN 4012196535729

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering T pieces with welded rungs.

Technical data

Technical data

Dimension	B450
Dimension B	450 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Hot-dip galvanised
Wide-span version	no
Width	450 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LTD 200 R3 FT	200 mm	1 mm	6226120	piece	1 piece
LTD 300 R3 FT	300 mm	1 mm	6226122	piece	1 piece
LTD 400 R3 FT	400 mm	1 mm	6226124	piece	1 piece
LTD 450 R3 FT	450 mm	1.25 mm	6226126	piece	1 piece
LTD 500 R3 FT	500 mm	1.25 mm	6226128	piece	1 piece
LTD 600 R3 FT	600 mm	1.25 mm	6226130	piece	1 piece
LTD 750 R3 FT	750 mm	1.25 mm	6226132	piece	1 piece
LTD 800 R3 FT	800 mm	1.25 mm	6226134	piece	1 piece
LTD 900 R3 FT	900 mm	1.25 mm	6226136	piece	1 piece
LTD 1000 R3 FT	1000 mm	1.25 mm	6226138	piece	1 piece
LTD 1200 R3 FT	1200 mm	1.25 mm	6226142	piece	1 piece

Downloads

Data sheet LTD 450 R3 FT / 6226126 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LTD 450 R3 FT / 6226126 , 0.10MB , pdf

UK Declaration of Conformity LTD 450 R3 FT / 6226126 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic LTD 450 R3 FT / 6226126, 67.66 kB, jpg

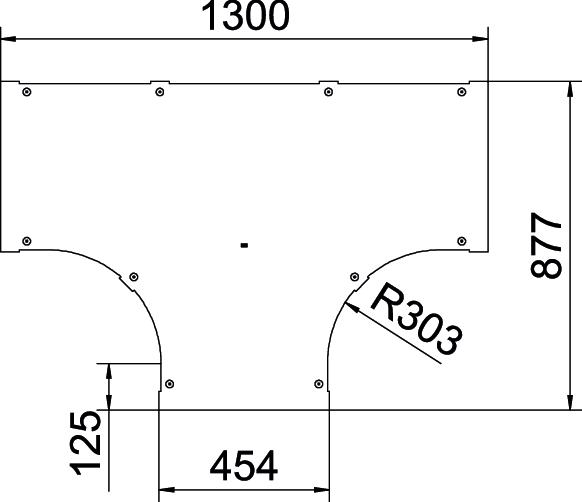

Scale drawing LTD 450 R3 FT / 6226126, 58.19 kB, jpg

LTD 450 R3 FT / 6226126
